Filter systems for perfect metallographic sample preparation

During cutting, various residual materials are produced from the specimen (chips) and from the cut-off wheel (wear/tear). To prevent these residual materials from entering the cooling water / waste water system or the pump mechanism, the use of filter systems is required. A suitable filter system with the correct mesh size, filter material and dimension has a significant influence on the cleanliness of the coolant.

Product Advantages

Various QPREP filter systems for different cut-off machines, from precision machines to floor standing machines.
QPREP filter systems protect the cutting machine and thus increase its lifetime.
The different mesh sizes of the filters offer an applicationoriented selection of the appropriate filter system for the corresponding recirculating cooling unit.

Recommended applications

The use of a filter system keeps the coolant significantly longer clean and prevents damage to the pump and machine.

Filter inserts

for Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 / Qcut 500 A (Brillant 275) / Brillant 280

Dimensions: 490 x 290 x 190 mm. Mesh size: 60 μm/ 100 μm / 800 μm

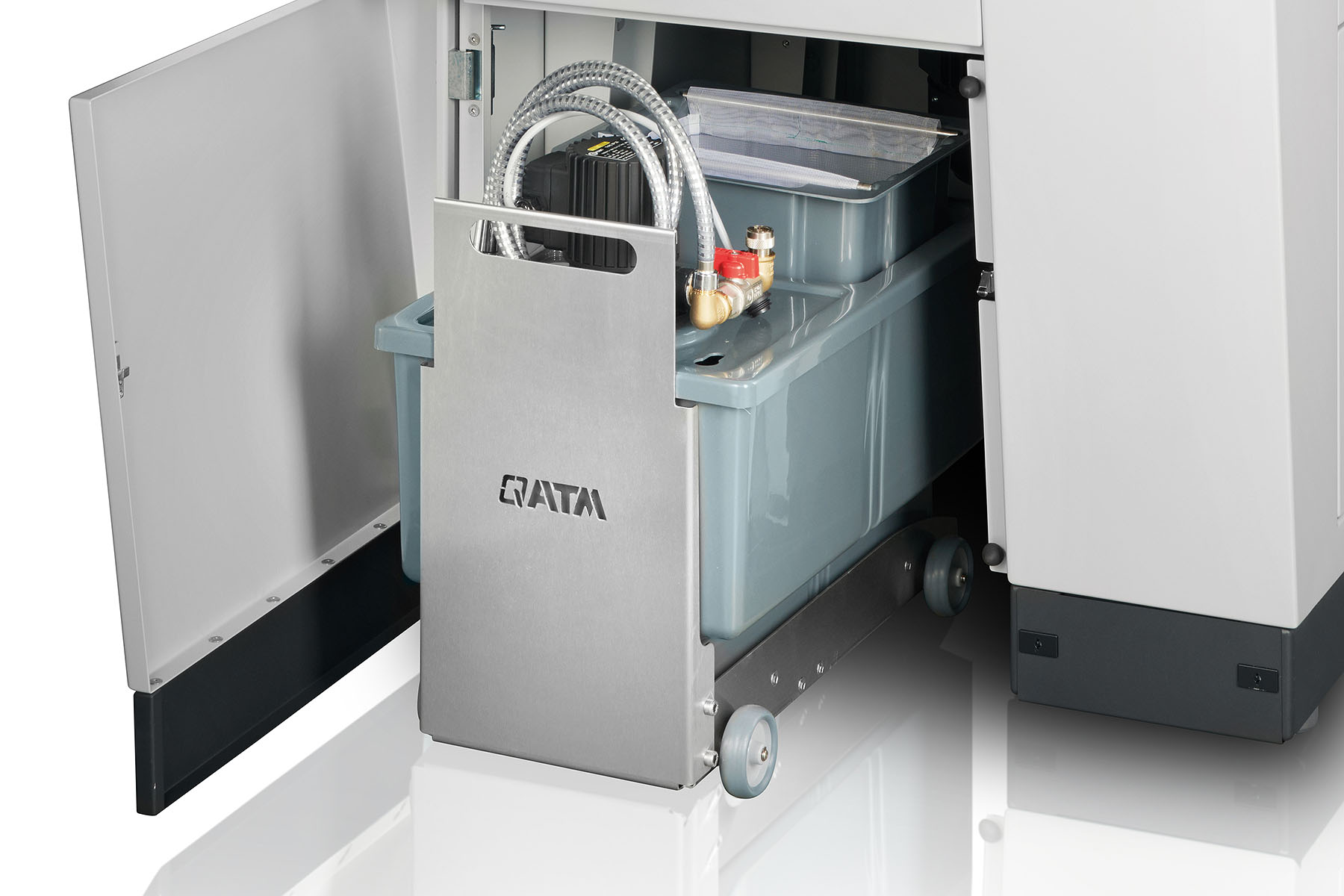

for recirculation cooling system 45 Ltr. (until year of construction 2012)

Dimensions: 290 x 150 x 190 mm. Mesh size: 60 μm/ 100 μm / 800 μm

for recirculation cooling system 45 Ltr. (from year of construction 2013)

Dimensions: 250 x 200 x 155 mm. Mesh size: 60 μm/ 100 μm / 800 μm

Order Data

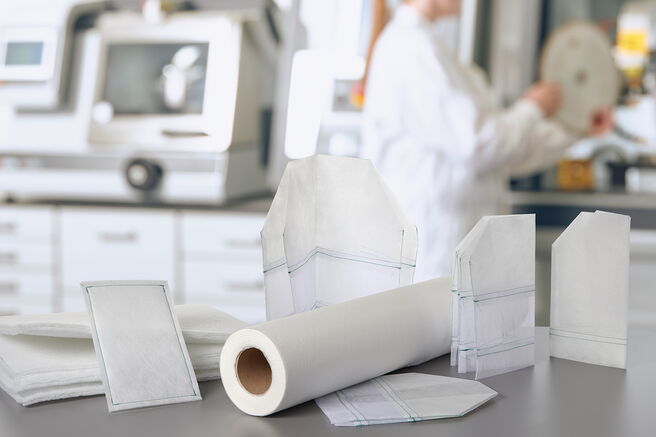

Filter fleece for belt filter systems

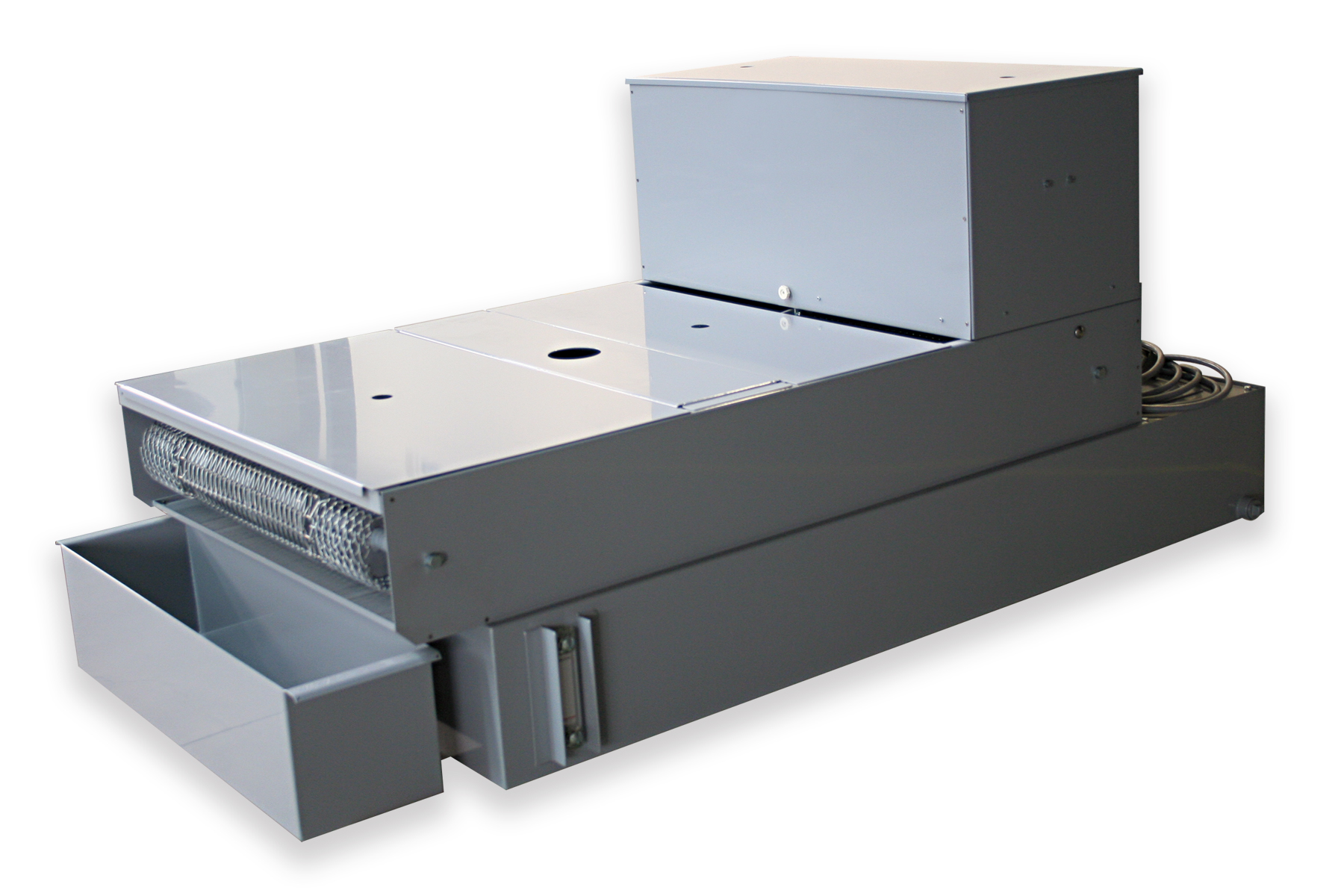

for belt filter system BFA 285

Filter fleece roll, coarse, 150 μm, 100 m x 710 mm

for belt filter system BFA 100/130

Filter fleece roll, coarse, 150 μm, 100 m x 420 mm

Order Data

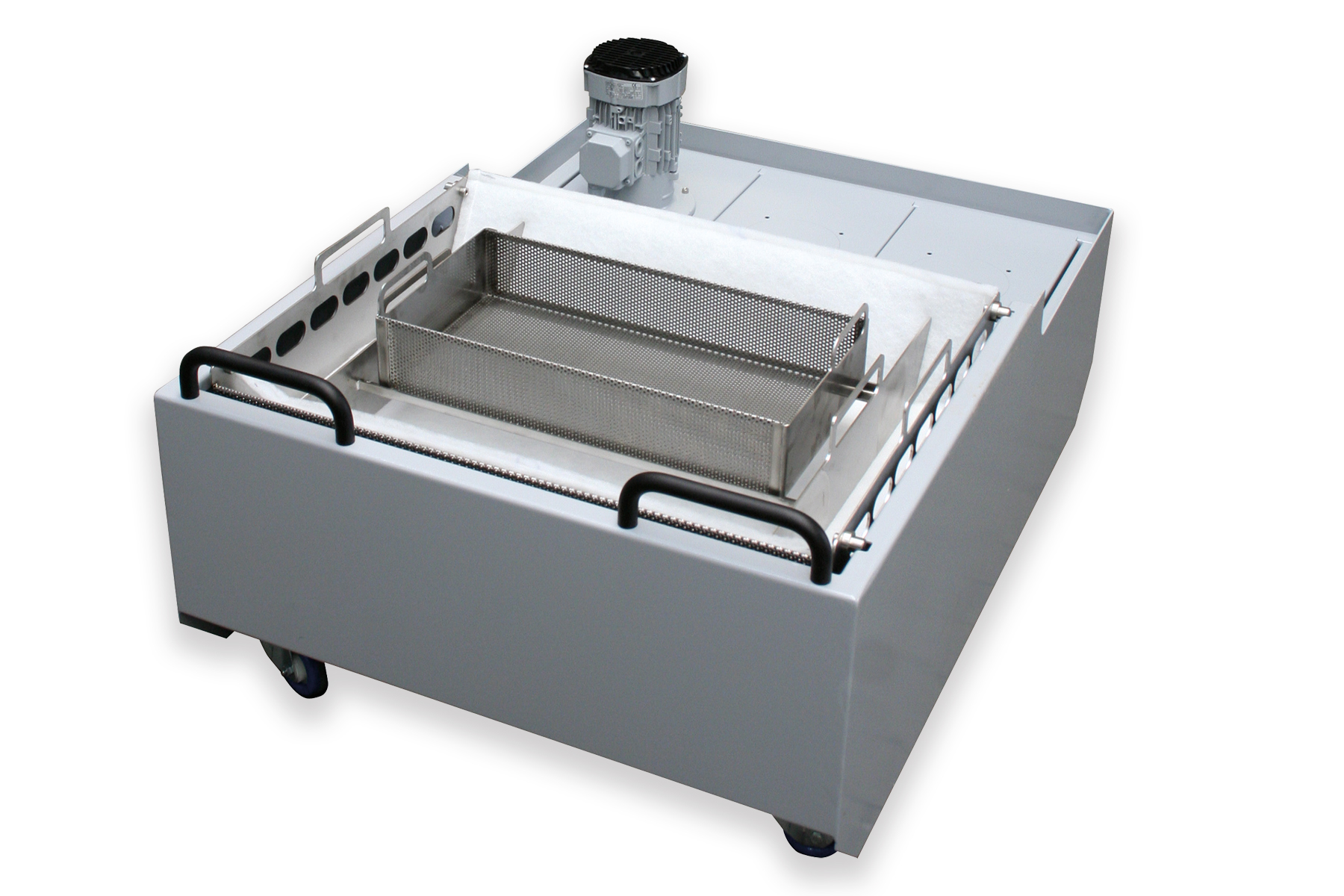

Filter fleece mat for recirculation cooling systems

for Qcut 800 A (Brillant 2000)

Filter fleece mat 940 x 720 mm

for Qcut 600 A (Brillant 285)

Filter fleece mat 724 x 720 mm

for recirculation cooling system 15 Ltr.

Filter fleece mat 235 x 148 mm

Order Data

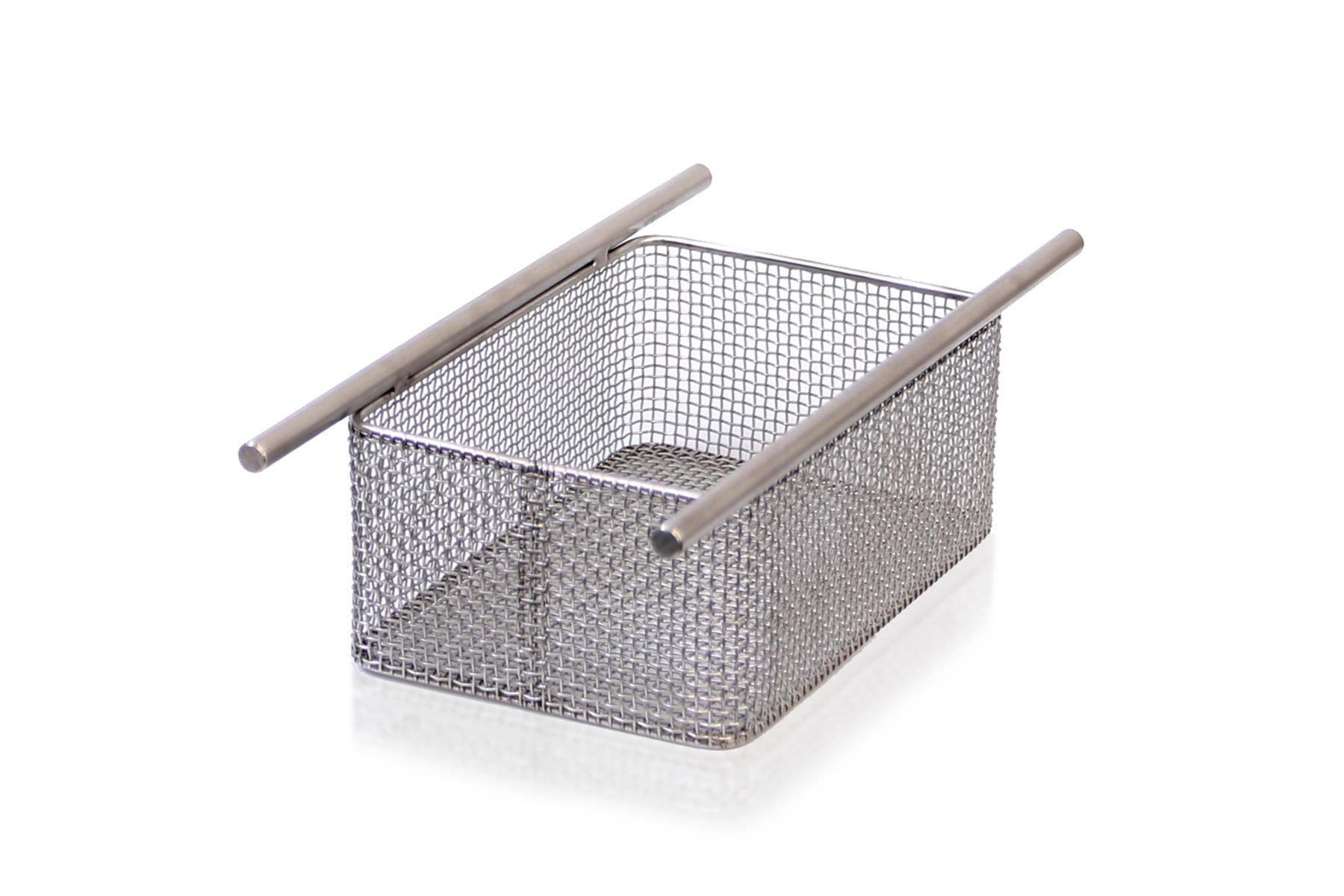

Filter Basket

Hanging basket made of stainless steel for the collection of the chip abrasion

can be hooked into 45 liter recirculating cooling unit
Dimensions (WxHxD): 140 x 80 x 200 mm

Perfect cutting – Instruments by QATM

Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
