Mounting Consumables for perfect metallographic sample preparation

Contact usDownloads
Create PDF

Language:

With QPREP, QATM offers a wide range of high-quality consumables for metallographic sample preparation and analysis. All consumables are thoroughly tested and selected for perfect interaction with QATM machines.

With the list below, you may request a free, non-binding quote.

Please select the items you would like to include by adding them to your inquiry list. You may choose items from any product page.

Your inquiry list will be visible in the upper right corner of the website.

General Inquiry

Not sure which items you need or you prefer a general quote?

Send us a general inquiry
  • Reset search


Hot mounting material

Hot mounting material EPO black

95011990
EPO BLACK1 kg
95011991
EPO BLACK5 kg
95011992
EPO BLACK10 kg


Hot mounting material EPO-Max

95013811
EPO-MAX1 kg
95013812
EPO-MAX5 kg
95013813
EPO-MAX10 kg


Hot mounting material Duroplast black

95011993
DUROPLAST BLACK1 kg
95011994
DUROPLAST BLACK5 kg
95011995
DUROPLAST BLACK10 kg


Hot mounting material Thermoplast

95011996
THERMOPLAST1 kg
95011997
THERMOPLAST5 kg
95011998
THERMOPLAST10 kg


Hot mounting material Bakelit black

95011981
BAKELIT BLACK1 kg
95011982
BAKELIT BLACK5 kg
95011983
BAKELIT BLACK10 kg


Hot mounting material Bakelit green

95011987
BAKELIT GREEN1 kg
95011988
BAKELIT GREEN5 kg
95011989
BAKELIT GREEN10 kg


Hot mounting material Bakelit Red

95011984
BAKELIT RED1 kg
95011985
BAKELIT RED5 kg
95011986
BAKELIT RED10 kg


Hot mounting accessories

92002660
Silicon paste, anti-stick agent90 ml
92002661
Silicon spray, anti-stick agent200 ml
92004441
Brass brush for cleaning of hot mounting press1 pc
92002658
Funnel for hot mounting material1 pc
92002715
Square bottle with screw-top for approx. 1 ltr. mounting material1 pc
92002657
Angle adapter for angled polishing, 10°100 pcs
92001716
Dosing spoon for hot and cold mounting material, 13 ml10 pcs


Clip for aligning thin samples in mould

92002662
Steel100 pcs
92002663
Plastic, transparent100 pcs
92002707
Plastic, black100 pcs
92002708
Plastic, red100 pcs
92002709
Plastic, grey100 pcs


Cold mounting material

Cold mounting material KEM 15 PLUS

Basis: Methyl methacrylate

­• blue, opaque
• 2-component system: powder + liquid (1.5:1 [Vol.-%])

95012019
1 kg powder, 500 ml liquid,
40 mixing cups, 40 mixing sticks, 2 dosing spoons: 13 ml and 20 ml1 Set
95011628
Powder1 kg
95011630
Powder10 kg
95011629
Liquid500 ml
95011631
Liquid5 l


Cold mounting material KEM 20

Basis: Methyl methacrylate

• feasibility of transparent embeddings by means of pressure unit
• 2-component system: powder + liquid (2:1 [Vol.-%])

95013990
1 kg powder, 500 ml liquid,
40 mixing cups, 40 mixing sticks, 2 dosing spoons1 Set
95013939
Powder1 kg
95013940
Powder5 kg
95013941
Powder10 kg
95013942
Liquid500 ml
95013943
Liquid1 l


Cold mounting material KEM 30

Basis: Methyl methacrylate

• green, semi-transparent
• 2-component system: powder + liquid (2:1 [Vol.-%])

95012021
1 kg powder, 500 ml liquid,
40 mixing cups, 40 mixing sticks, 2 dosing spoons: 13 ml, oval1 pc
92004080
Powder1 kg
92004082
Powder5 kg
92004081
Liquid500 ml
92004083
Liquid1 l
92002540
Liquid2.5 l


Cold mounting material KEM 35

Basis: Methyl methacrylate

­• light green, opaque
• 2-component system: powder + liquid (1.5:1 [Vol.-%])

95012022
1 kg powder, 500 ml liquid,
40 mixing cups, 40 mixing sticks, 2 dosing spoons: 13 ml and 20 ml1 Set
92002473
Powder1 kg
92002474
Powder5 kg
92002512
Powder10 kg
92002475
Liquid500 ml
92002476
Liquid1 l
92002477
Liquid2.5 l


Cold mounting material Qprep SEM 5000

Basis: Modified methyl methacrylate

• copper-brown, free of blowholes by using a pressure device
• 2-component system: powder + liquid (20 g : 13 ml)

95004058
Powder1 kg
95004059
Liquid500 ml


Cold mounting material KEM 60, 1 l

Basis: Tetrahydrofurfuryl-2-methacrylate

• red, MMA-free
• 2-component system: powder + liquid (2:0.9 [weight-%])

95014004
1 kg powder, 500 ml liquid,
40 mixing cups, 40 mixing sticks, 2 dosing spoons: 13 ml, oval1 Set
95013184
Powder1 kg
95013185
Powder5 kg
95013187
Liquid500 ml


Cold mounting material Qpox 90

Basis: Epoxy resin

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (2:1 [weight-%])

95017315
500 ml resin, 250 ml hardener
40 mixing cups, 40 mixing sticks1 Set
92002484
Resin500 ml
92002485
Hardener250 ml


Cold mounting material Qpox 92

Basis: Epoxy resin

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (4:1 [weight-%])

95017316
1 l Resin, 250 ml Hardener
40 mixing cups, 40 mixing sticks1 Set
95016854
Resin1 l
95016855
Hardener250 ml


Cold mounting resin Qpox 94

Basis: Epoxy resin

• transparent, suitable for vacuum infiltration
•2-components-system: resin + hardener (2:1 [weight-%])

950175381 l resin, 500 ml hardener
40 mixing cups, 40 mixing sticks
95017496Resin
95017497Hardener


Vacuum infiltration and pressure device



Infiltration set

• for cold mounting and hardening using vacuum-HR-• recommended for Epoxy resin Qpox 90 / Qpox 92

Z6510000
desiccator incl. non-return valve, vacuum pump, hose and pressure gauge1 pc


Infiltration unit

• for cold mounting, pouring and hardening using vacuum
• recommended for Epoxy resin Qpox 90 / Qpox 92 / Qpox 94

M6500001
infiltration unit, 230 V/50 Hz, vacuum pressure 0.8 bar,
W 330 x H 270 x D 300 mm
(including desiccator with mechanic dosing and vacuum pump, rotating disc for 8 silicon mounting cups Ø 50 mm or 9 PTFE-mounting cups Ø 40 mm, 10 mixing cups)1 pc
Infiltration unit 110 V/60 Hz on request


Pressure equipment

95016569
Pressure Equipment Qprep Pressure, dimensions: B, 340 x W340 x H255 mm1 pc


UV mounting material



UV mounting material Qprep UV 50

Basis: Modified methacrylate

• transparent
• 1-component system

95016840
All-in-one liquid1 l


UV mounting resin Qprep UV 55

• transparent
• 1-component system

95017495All-in-one liquid


Cold mounting moulds for UV mounting

Qmould Clear mounting moulds

• suitable for light curing
• with exchangeable bottom

95017575
Ø 40 mm / H 25 mm5 pcs
95017576
Ø 50 mm / H 25 mm5 pcs

Polypropylene round

• with exchangeable bottom

95017317
Ø 25 mm / H 27 mm5 pcs
95017318
Ø 30 mm / H 27 mm5 pcsMountingUV mounting material
95017319
Ø 40 mm / H 27 mm5 pcs


Cold & UV mounting accessories

92001715
Mixing cups, disposable, 180 ml100 pcs
92004360
Silicon mixing cup, reusable1 pc
92001717
Mixing sticks (wood)100 pcs
92002657
Angle adapter for angled polishing, 10°100 pcs
92001716
Dosing spoon for hot and cold mounting material, 13 ml10 pcs
92001779
Dosing spoon for cold mounting material, 20 ml10 pcs
92001781
Dosing spoon for cold mounting material, 13 ml10 pcs


Clip for aligning thin samples in mould

92002662
Steel100 pcs
92002663
Plastic, transparent100 pcs
92002707
Plastic, black100 pcs
92002708
Plastic, red100 pcs
92002709
Plastic, grey100 pcs


Plastic mounting aid

92002623
Ø 30 mm, for 4 samples, sample thickness <1 mm, blue100 pcs
92002625
Ø 30 mm, for 4 samples, sample thickness <2 mm, gray100 pcs
92002624
Ø 30 mm, for 3 samples, sample thickness <3 mm, white100 pcs


Transparent mounting aid

95016787
Ø 35 mm, for 4 samples, sample thickness <1 mm10 pcs
95016788
Ø 35 mm, for 4 samples, sample thickness <1 mm50 pcs
95016789
Ø 35 mm, for 4 samples, sample thickness <1 mm100 pcs

95016790
Ø 35 mm, for 4 samples, sample thickness 1-2 mm10 pcs
95016791
Ø 35 mm, for 4 samples, sample thickness 1-2 mm50 pcs
95016792
Ø 35 mm, for 4 samples, sample thickness 1-2 mm100 pcs

95016793
Ø 35 mm, for 3 samples, sample thickness 2-3 mm10 pcs
95016794
Ø 35 mm, for 3 samples, sample thickness 2-3 mm50 pcs
95016795
Ø 35 mm, for 3 samples, sample thickness 2-3 mm100 pcs

95016796
Ø 35 mm, for 2 samples, sample thickness 3-4 mm10 pcs
95016797
Ø 35 mm, for 2 samples, sample thickness 3-4 mm50 pcs
95016798
Ø 35 mm, for 2 samples, sample thickness 3-4 mm100 pcs


Cold mounting moulds

Qmould Grey mounting moulds

• not suitable for light curing
• with exchangeable bottom

95017577
Ø 40 mm / H 25 mm5 pcs
95017578
Ø 50 mm / H 25 mm5 pcs

Qmould White mounting moulds

• not suitable for light curing
• with exchangeable bottom

95017579
Ø 40 mm / H 25 mm5 pcs
95017580
Ø 50 mm / H 25 mm5 pcs

Silicon rubber round, beveled edge

• not suitable for light curing

95017026
Ø 25 mm / H 23 mm5 pcs
95017027
Ø 30 mm / H 25 mm5 pcs
95017028
Ø 32 mm / H 25 mm5 pcs
95017029
Ø 38 mm / H 25 mm5 pcs
95017030
Ø 40 mm / H 30 mm5 pcs
95017031
Ø 50 mm / H 30 mm5 pcs


Silicon rubber square, beveled edge

• not suitable for light curing

92002509
55 x 30 mm / H 22 mm1 pc
95017032
55 x 30 mm / H 22 mm5 pcs
92002510
70 x 40 mm / H 22 mm1 pc
95017033
70 x 40 mm / H 22 mm5 pcs

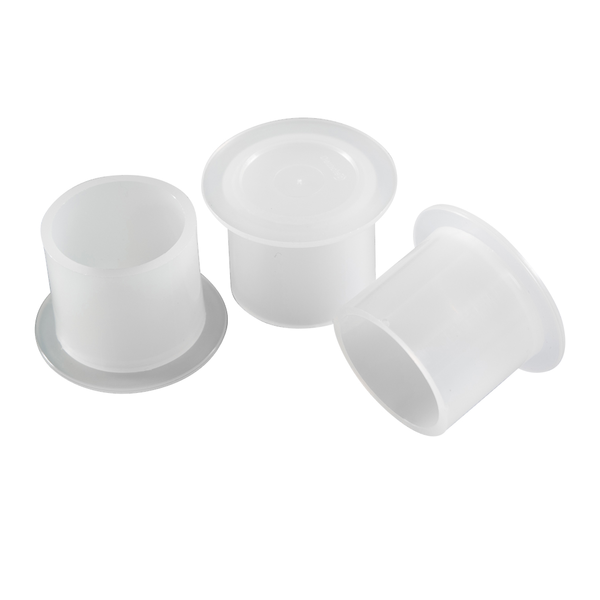

Polypropylene round

• suitable for light curing
• with exchangeable bottom

95017317
Ø 25 mm / H 27 mm5 pcs
95017318
Ø 30 mm / H 27 mm5 pcs
95017319
Ø 40 mm / H 27 mm5 pcs


Polyethylene round

• not suitable for light curing
• with exchangeable bottom

95017037
Ø 25 mm / H 25 mm5 pcs
95017038
Ø 30 mm / H 25 mm5 pcs
95017039
Ø 40 mm / H 25 mm5 pcs
95017040
Ø 50 mm / H 25 mm5 pcs

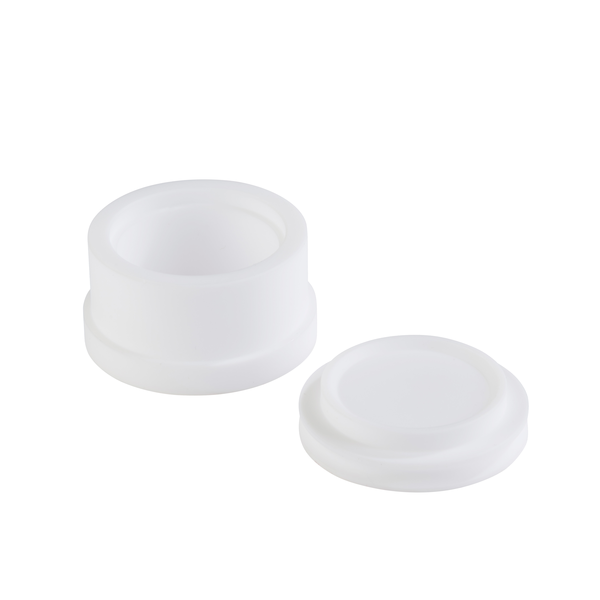

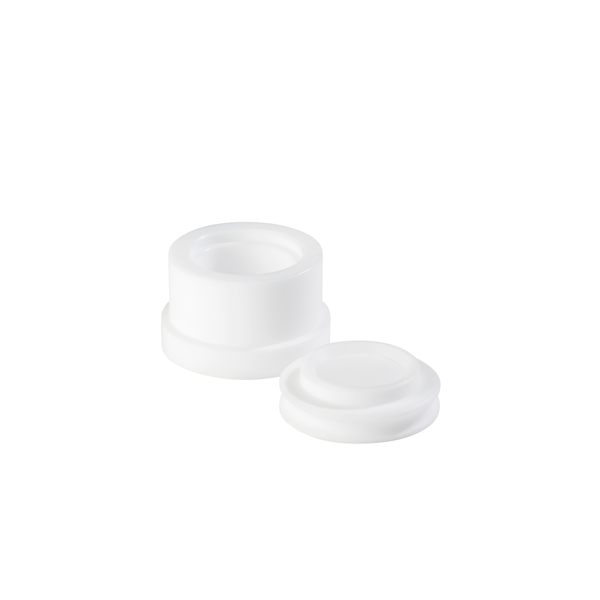

PTFE round, beveled edge

• not suitable for light curing
• with exchangeable bottom

92002513
Ø 25 mm / H 23 mm1 pc
95017041
Ø 25 mm / H 23 mm3 pcs
92002514
Ø 30 mm / H 25 mm1 pc
95017042
Ø 30 mm / H 25 mm3 pcs
92002515
Ø 32 mm / H 25 mm1 pc
95017043
Ø 32 mm / H 25 mm3 pcs
92002516
Ø 38 mm / H 25 mm1 pc
95017044
Ø 38 mm / H 25 mm3 pcs
92002517
Ø 40 mm / H 30 mm1 pc
95017045
Ø 40 mm / H 30 mm3 pcs
92002518
Ø 50 mm / H 30 mm1 pc
95017046
Ø 50 mm / H 30 mm3 pcs
92002519
Ø 70 mm / H 30 mm1 pc
95017047
Ø 70 mm / H 30 mm3 pcs
