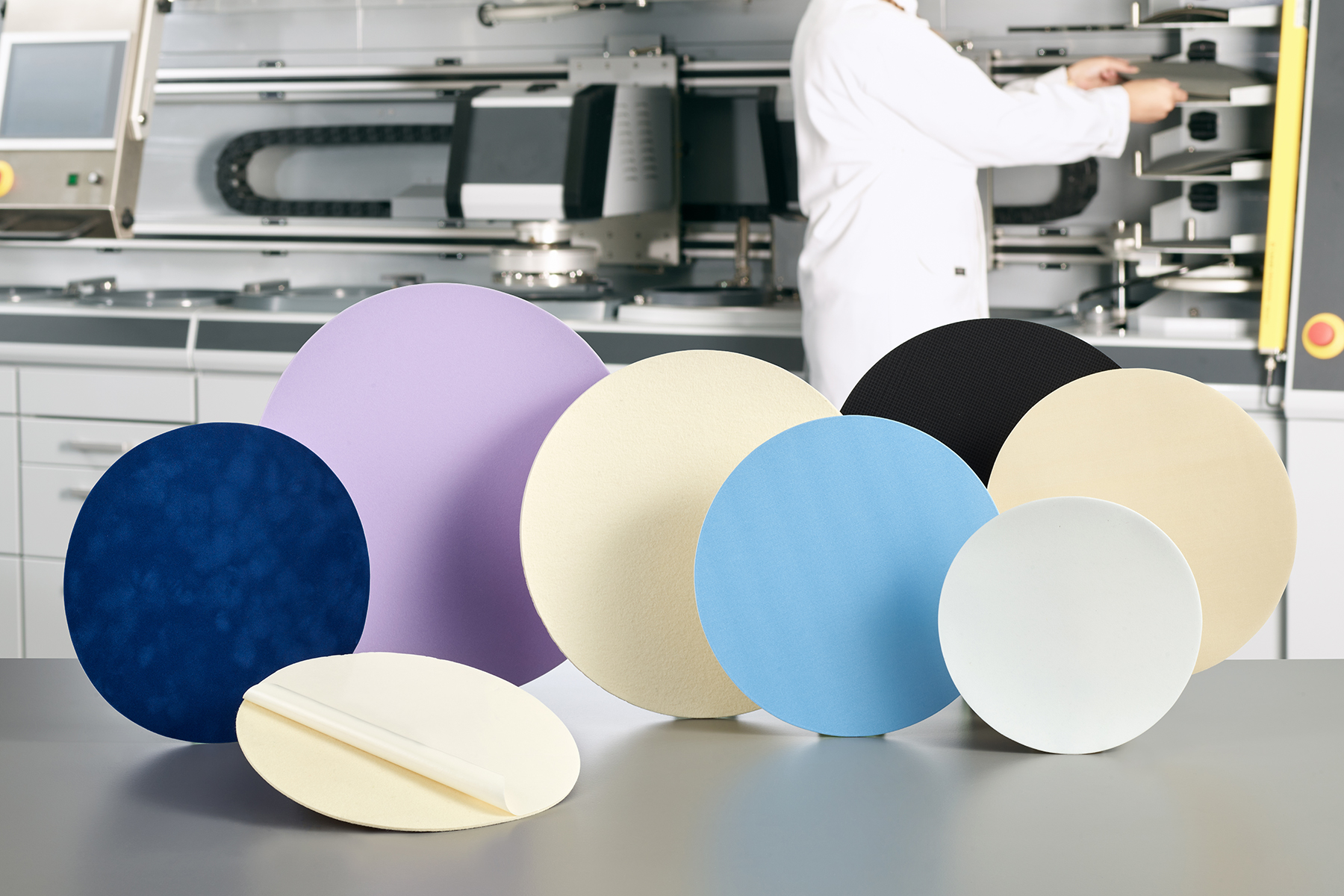

Polishing cloths, self-adhesive for perfect metallographic sample preparation

Contact us Request a quote

QPREP polishing cloths offer the right cloth material for all materials and analysis purposes.

Product Advantages

Ideal for polishing in combination with the media carrier for the fully automatic Qpol 250 BOT as well as with the X-Tap system
Optimized adhesive backing ensures uniform fixing over the entire surface on the fixation system and realized no slipping or detachment of the polishing cloth
available diameters: 200 / 250 / 300 / 350 mm

Recommended applications

For use with X-Tap system
For use with media carrier plate (Qpol 250 BOT)

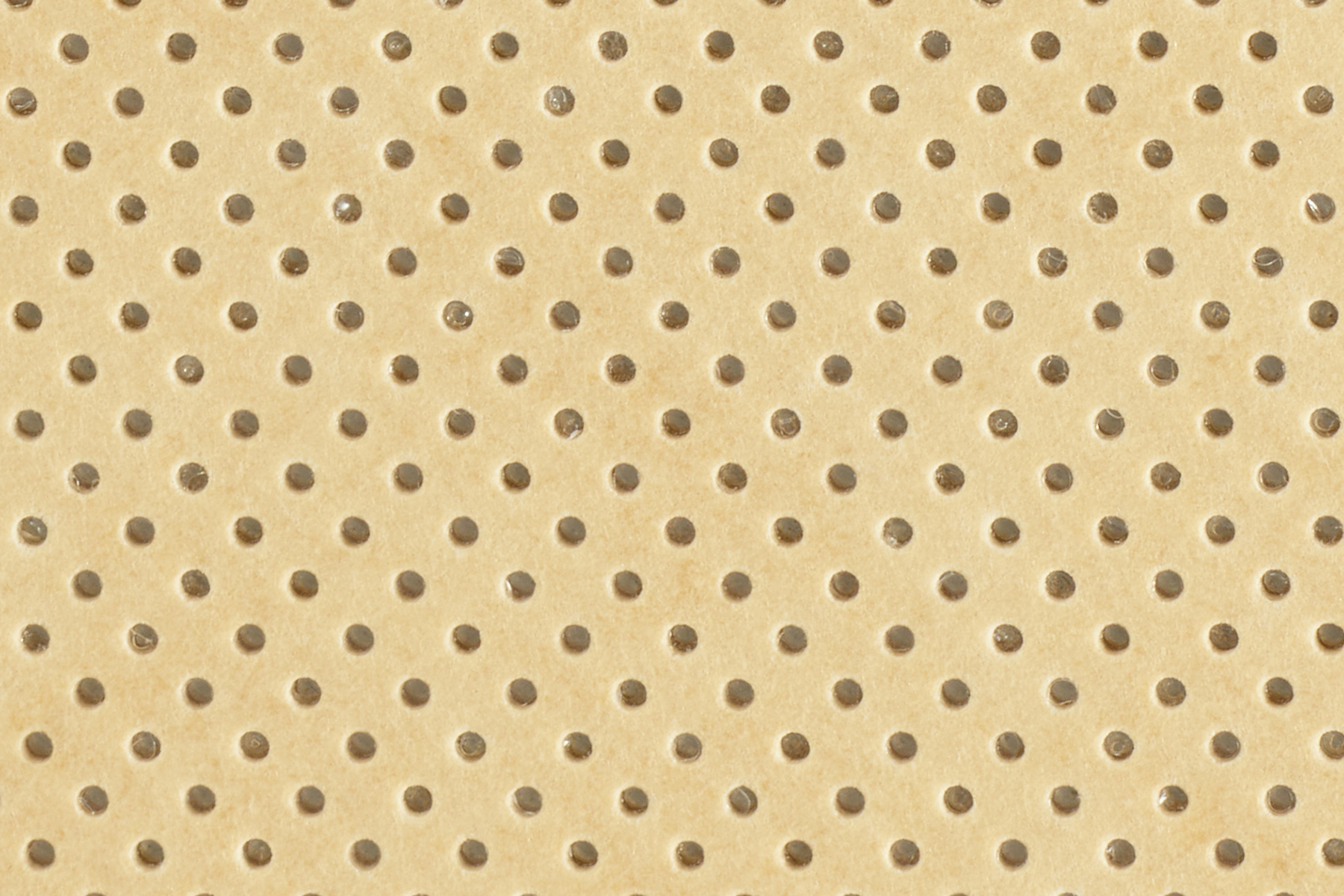

Alpha - Polishing cloth

Suitable for pre-polishing
Very hard, perforated chemical fiber cloth
For ceramics, hard metal, steel, grey cast iron, aluminum
High lifetime and stock removal
For use with diamond grain size: 15 / 9 µm
Fixation system: X-Tap

Order Data

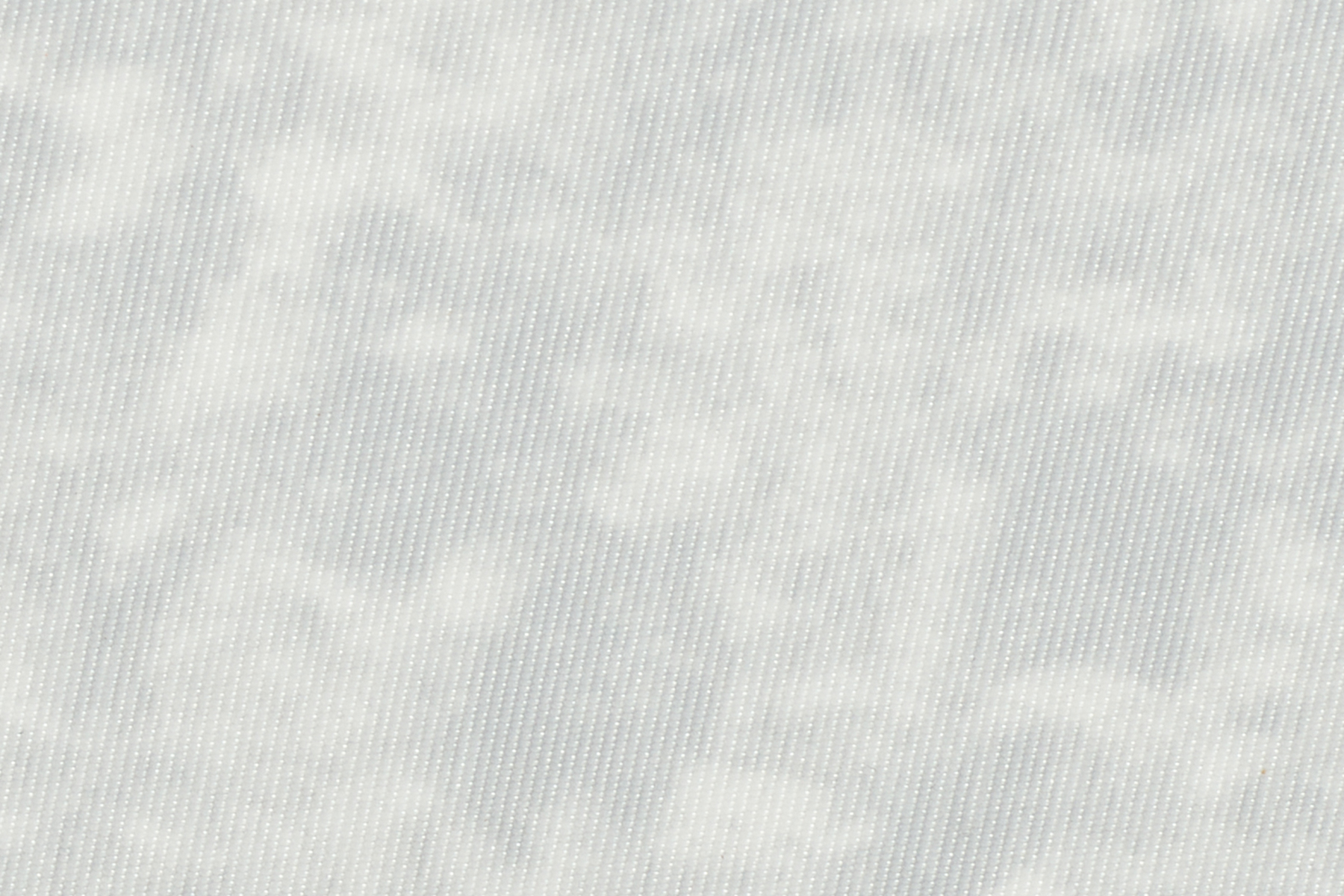

Beta - Polishing cloth

Suitable for pre-polishing
Hard synthetic cloth
Materials with high hardness, steel, grey cast iron, hard metal, ceramics
For use with diamond grain size: 15 / 9 / 6 µm
Fixation system: X-Tap

Order Data

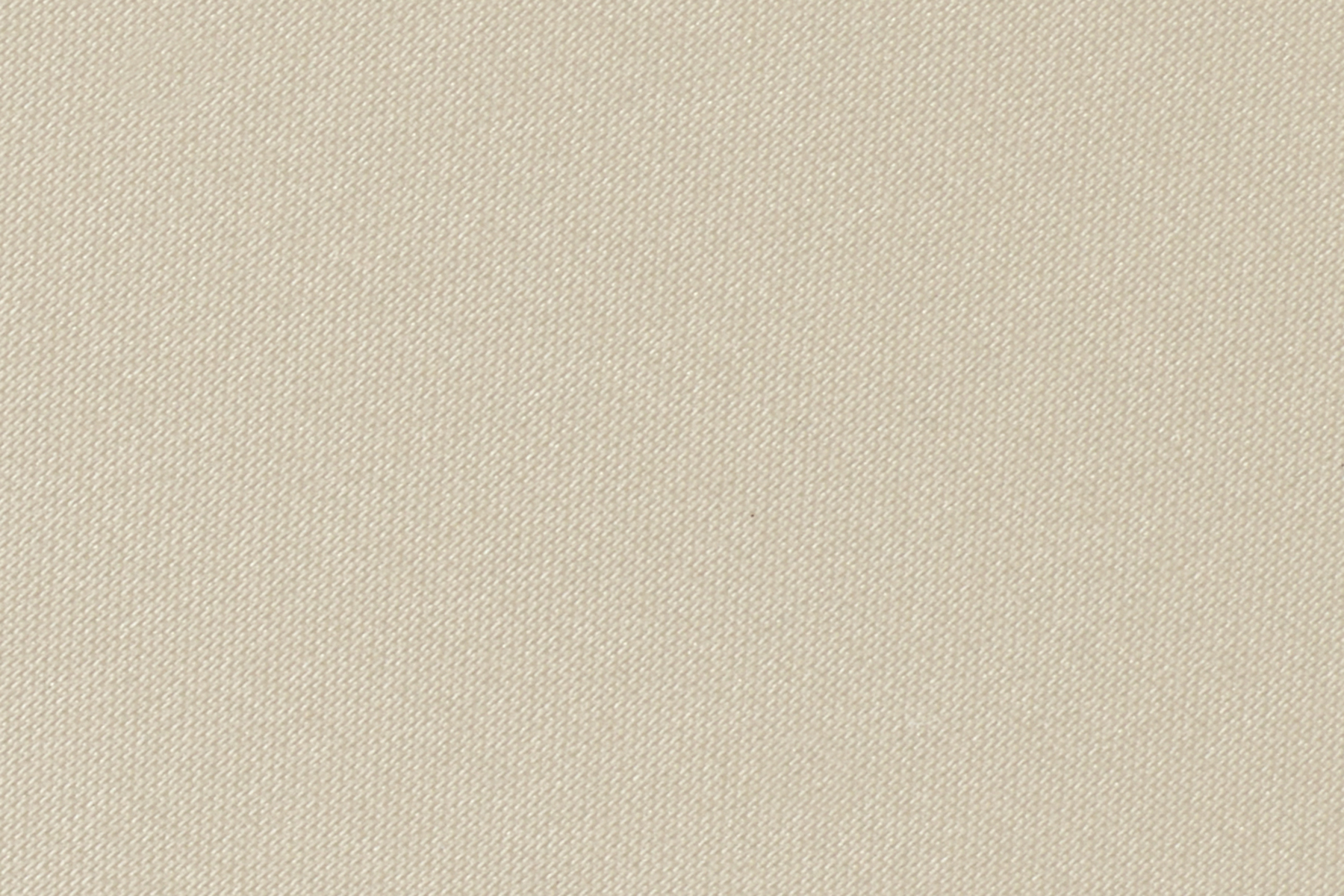

DELTA- Polishing cloth

Suitable for pre- & intermediate polishing
Medium hard silk cloth
C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
For use with diamond grain size: 9 / 6 / 3 µm
Fixation system: X-Tap

Order Data

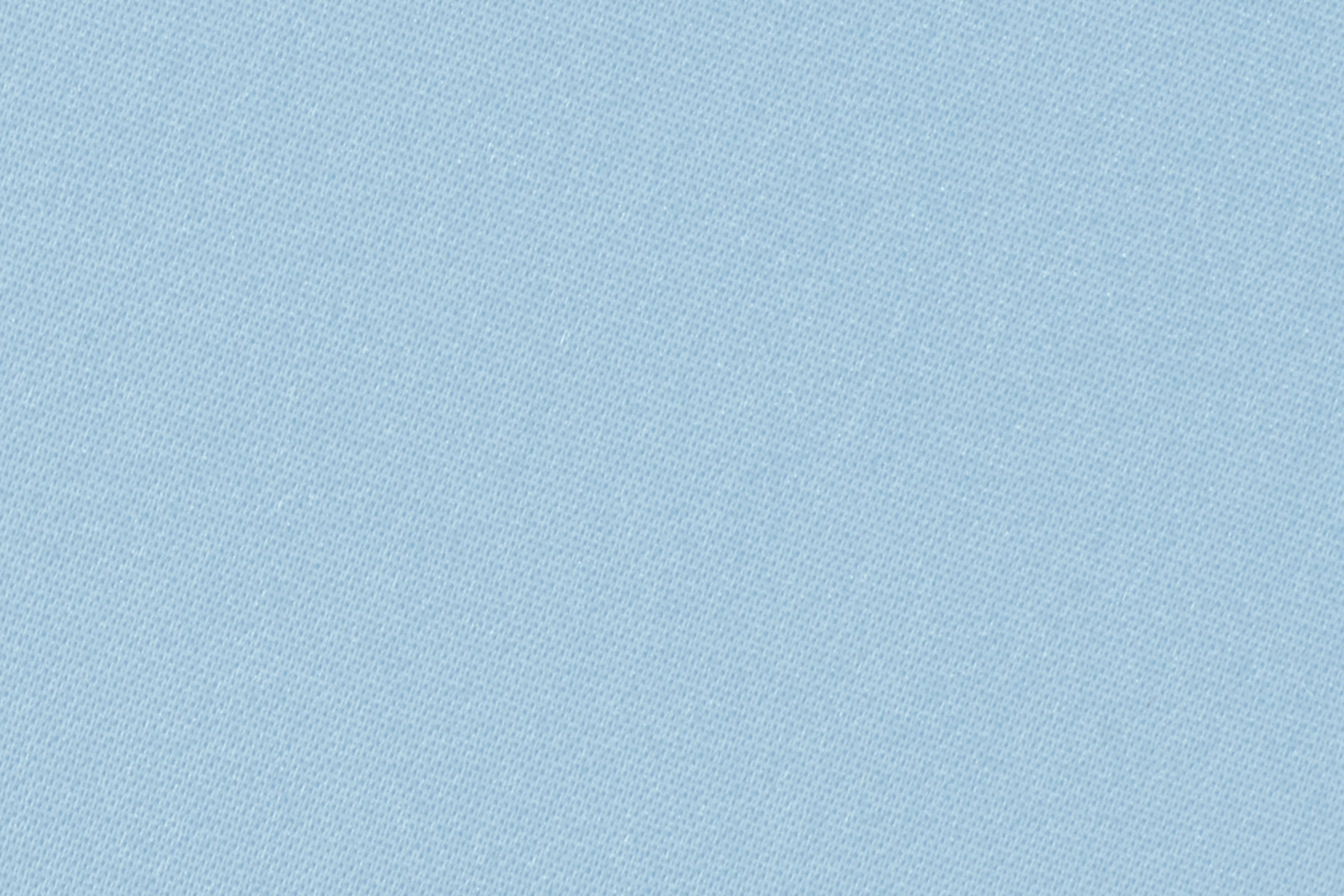

Gamma - Polishing cloth

Suitable for pre- & intermediate polishing
Medium hard silk cloth
C-steels, precious metal, coatings, plastics [CFK, GFK]
For use with diamond grain size: 9 / 6 / 3 µm
Fixation system: X-Tap

Order Data

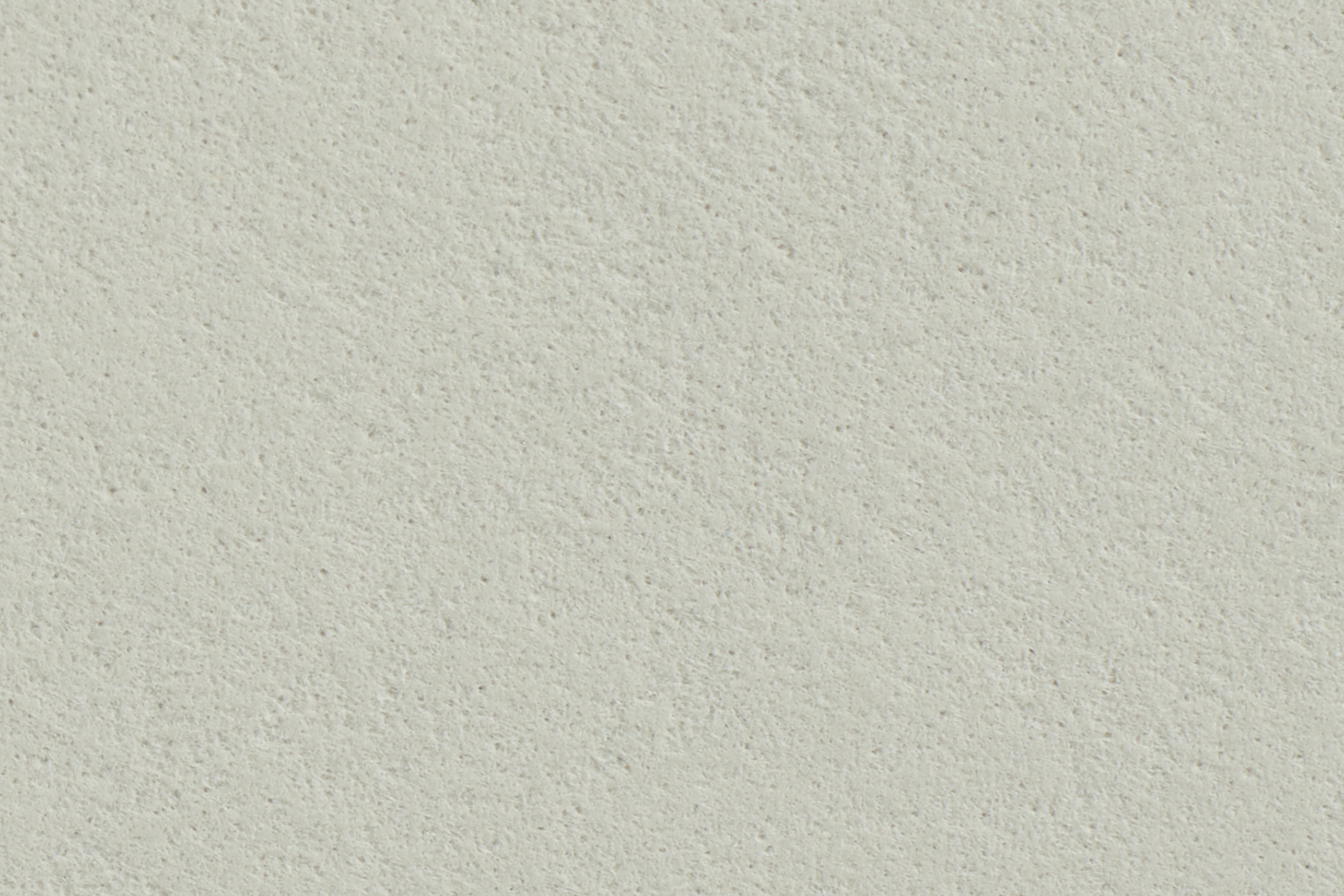

PHI - Polishing cloth

Suitable for pre-, intermediate-, and end polishing
Medium hard chemical fiber cloth
For iron, non – ferrous metals, minerals, ceramics, composite materials
For use with diamond grain size: 9 / 6 / 3 / 1 µm
Fixation system: X-Tap

Order Data

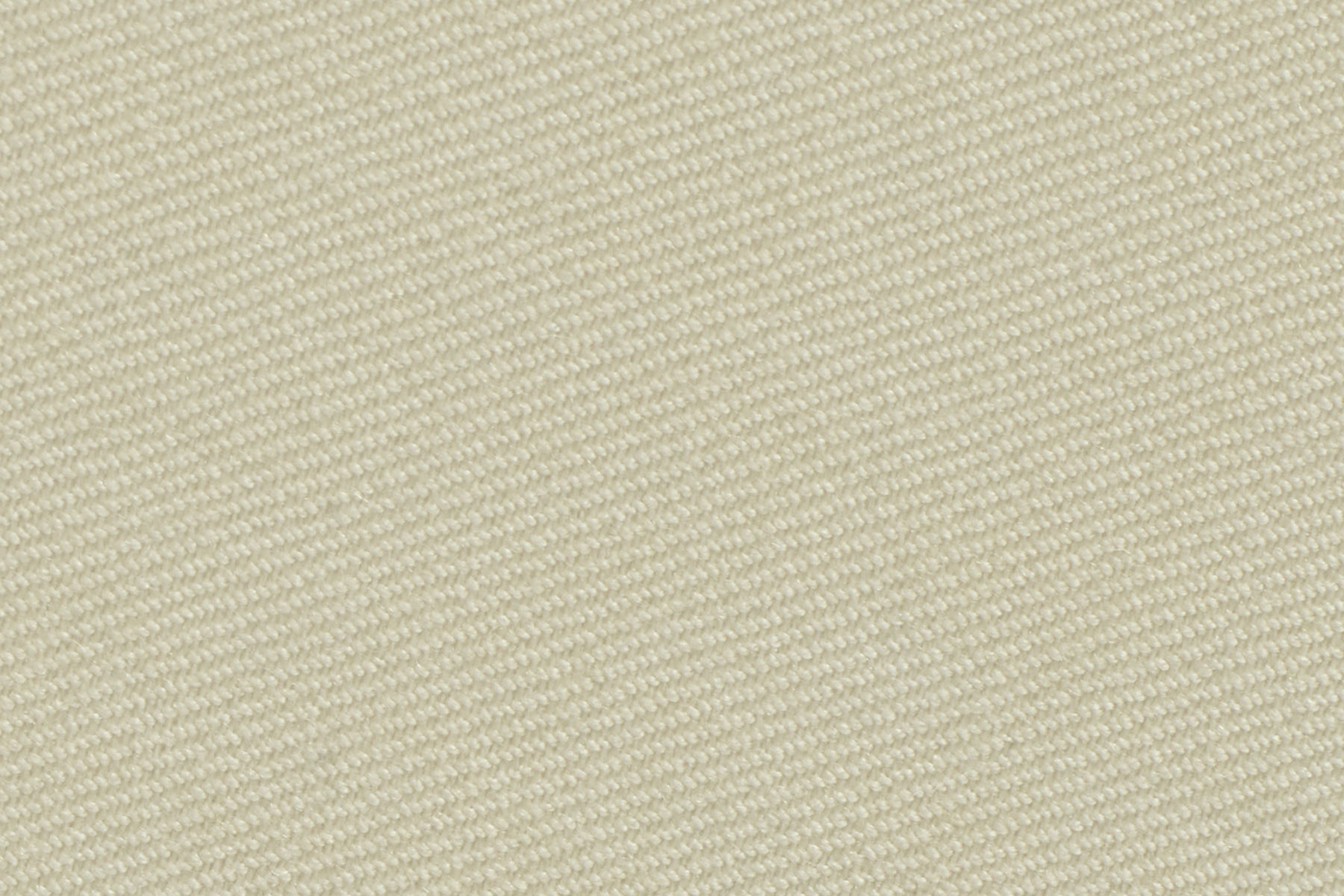

SIGMA - Polishing cloth

Suitable for intermediate and end polishing
Soft wool cloth
For all materials
For use with diamond grain size: 6 / 3 / 1 µm
Fixation system: X-Tap

Order Data

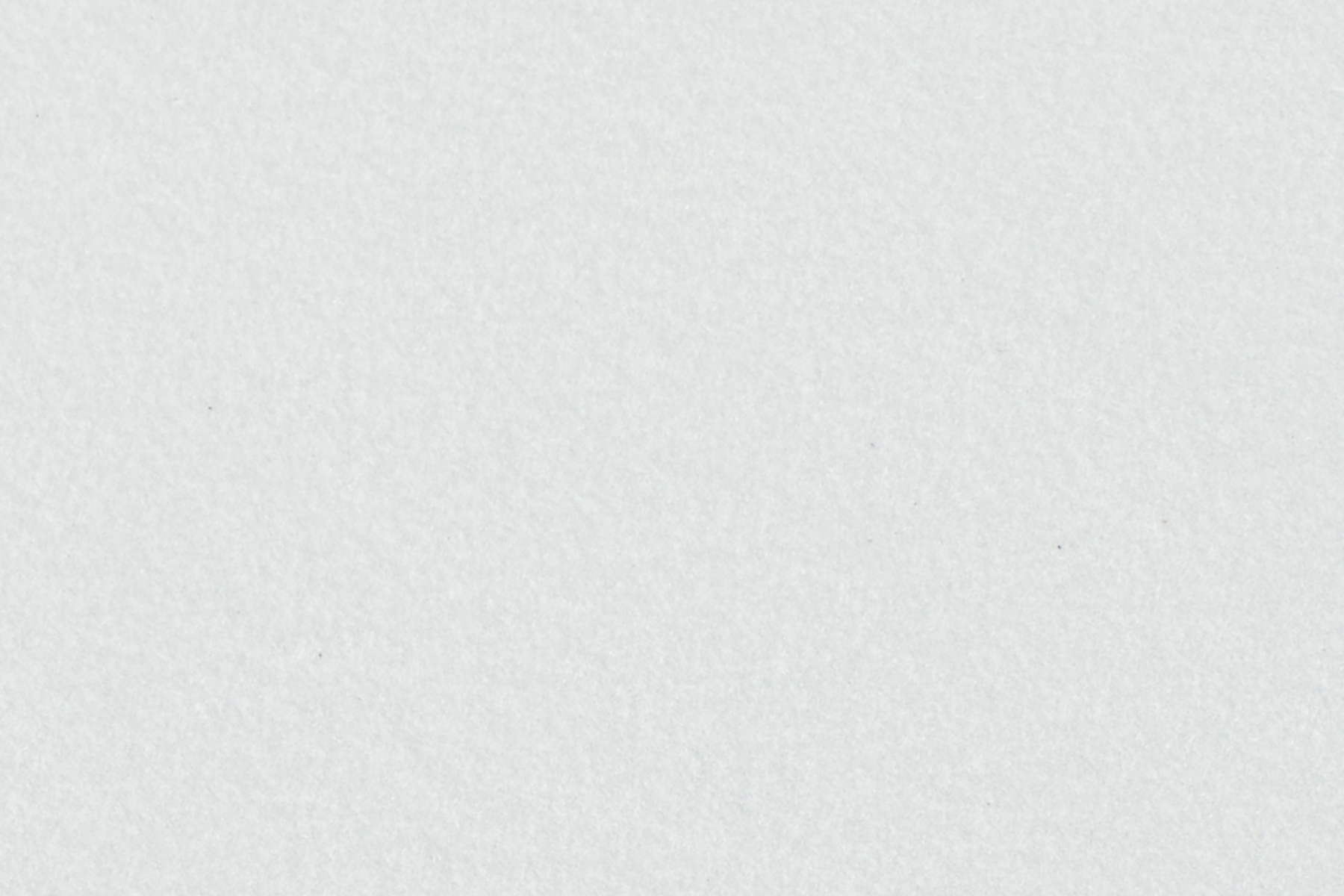

Eta - Polishing cloth

Suitable for end polishing
Short flocked, medium hard synthetic cloth
For all materials of medium and high hardness
For use with diamond grain size: 3 / 1 µm
Fixation system: X-Tap

Order Data

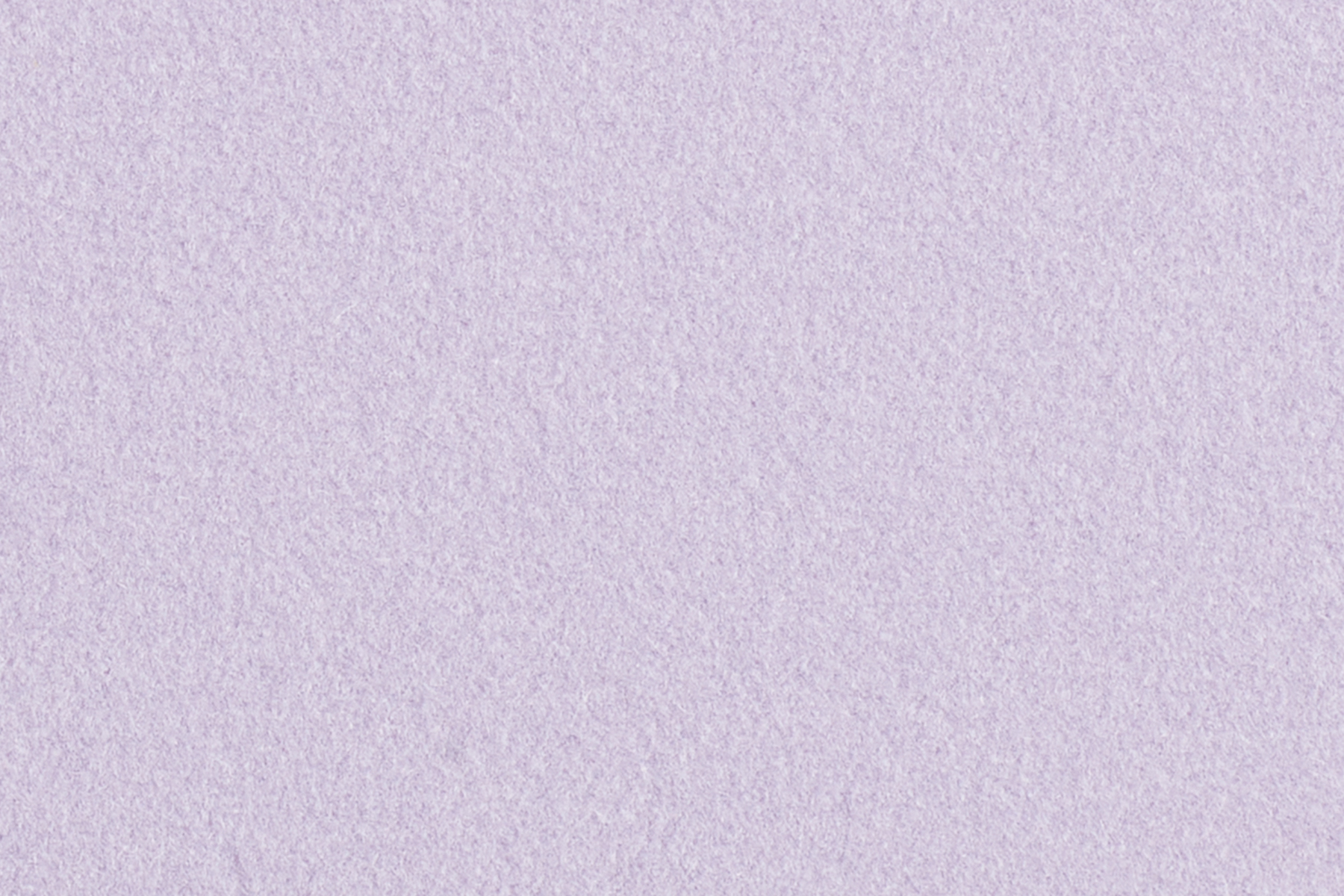

Iota - Polishing cloth

Suitable for end polishing as well as fine polishing with fine polishing suspension
Long flocked, soft synthetic cloth
For all materials, especially hard materials
For use with diamond grain size: 3 / 1 µm
Suitable for oxide suspensions
Fixation system: X-Tap

Order Data

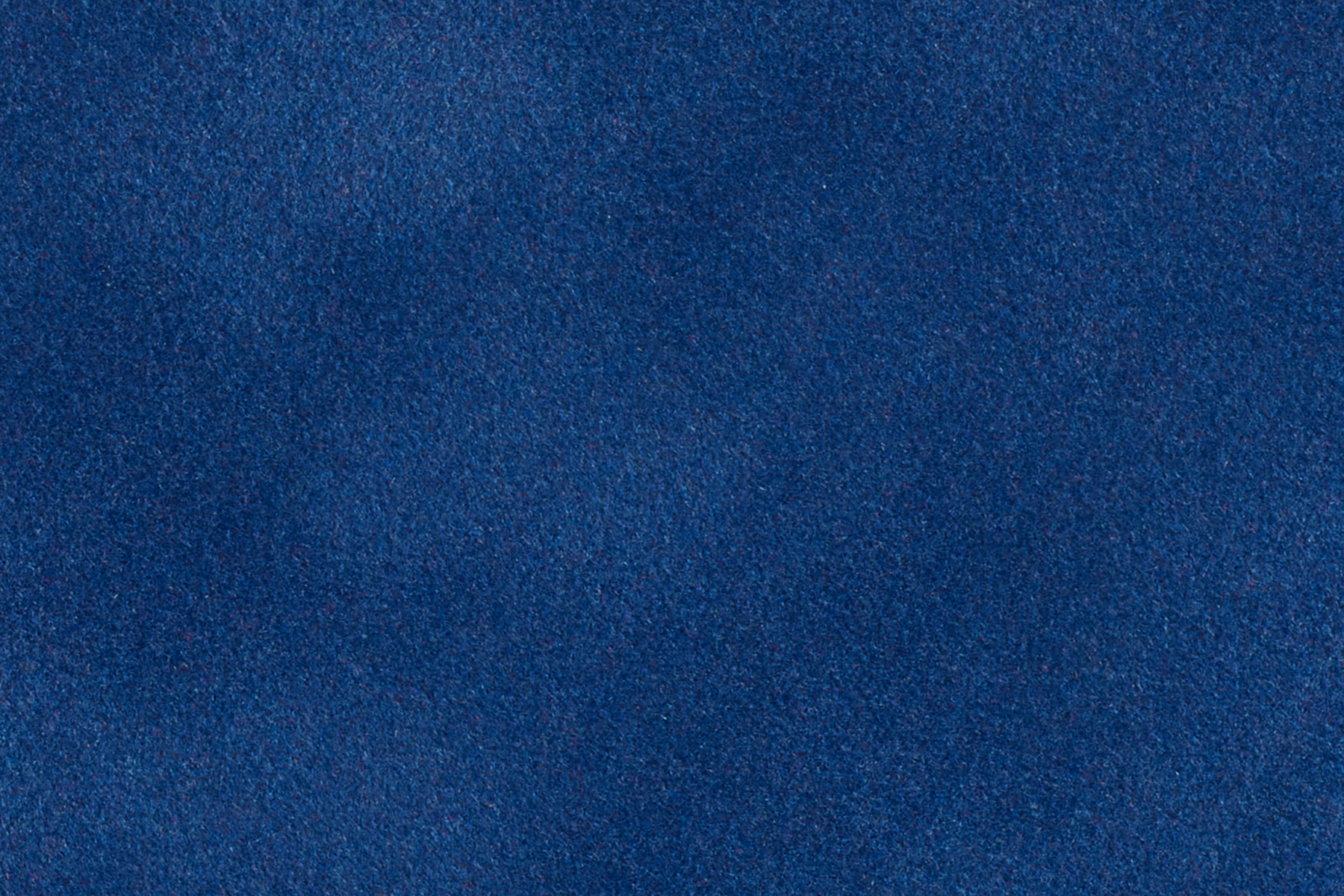

Zeta - Polishing cloth

Suitable for end polishing as well as fine polishing with fine polishing suspension
Short flocked, soft synthetic cloth
For all materials
For use with diamond grain size: 3 / 1 µm
Suitable for oxide suspensions as well as alumina
Fixation system: X-Tap

Order Data

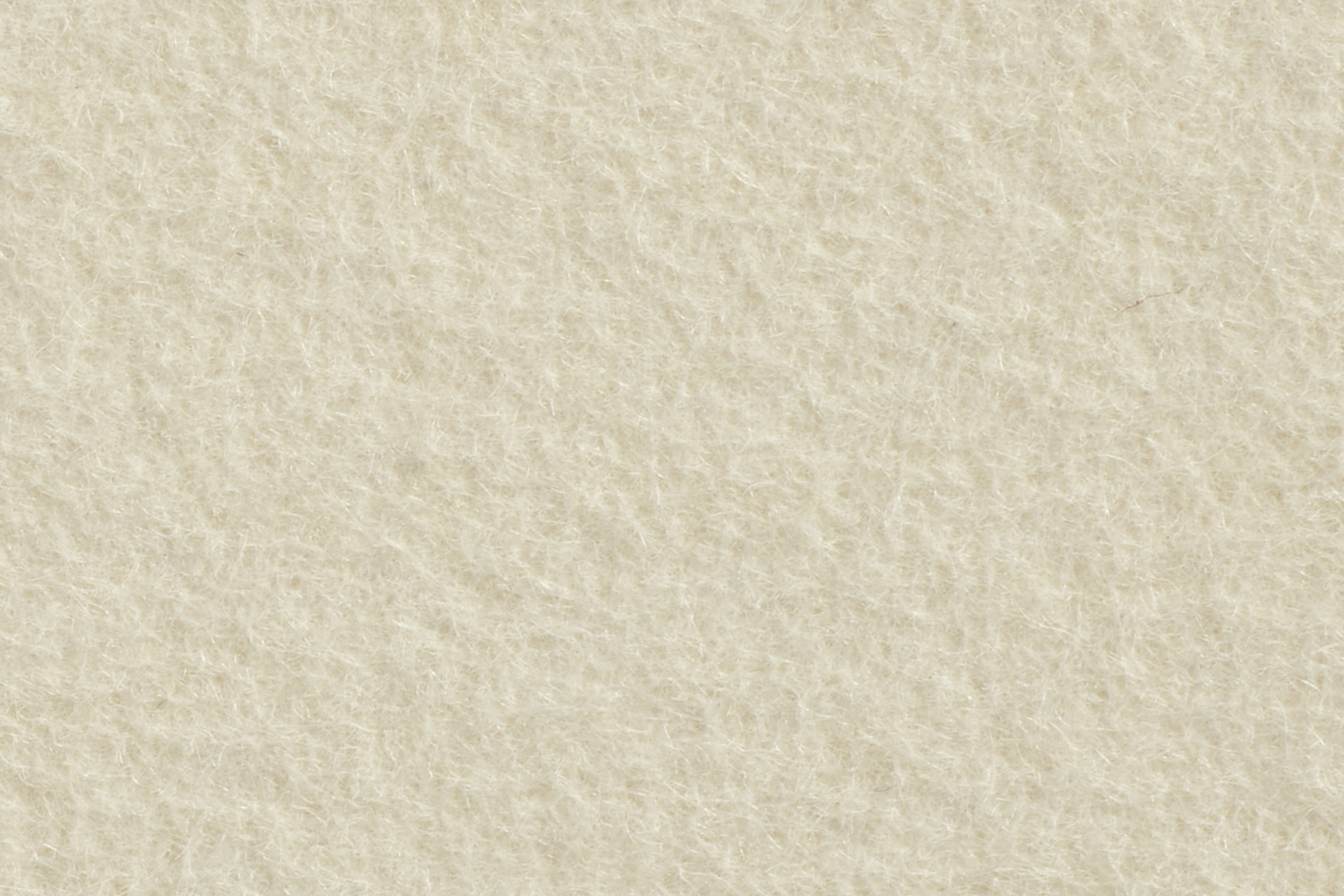

Kappa - Polishing cloth

Suitable for fine polishing with fine polishing suspension
Soft polishing felt
For all materials
Suitable for oxide suspensions
Fixation system: X-Tap

Order Data

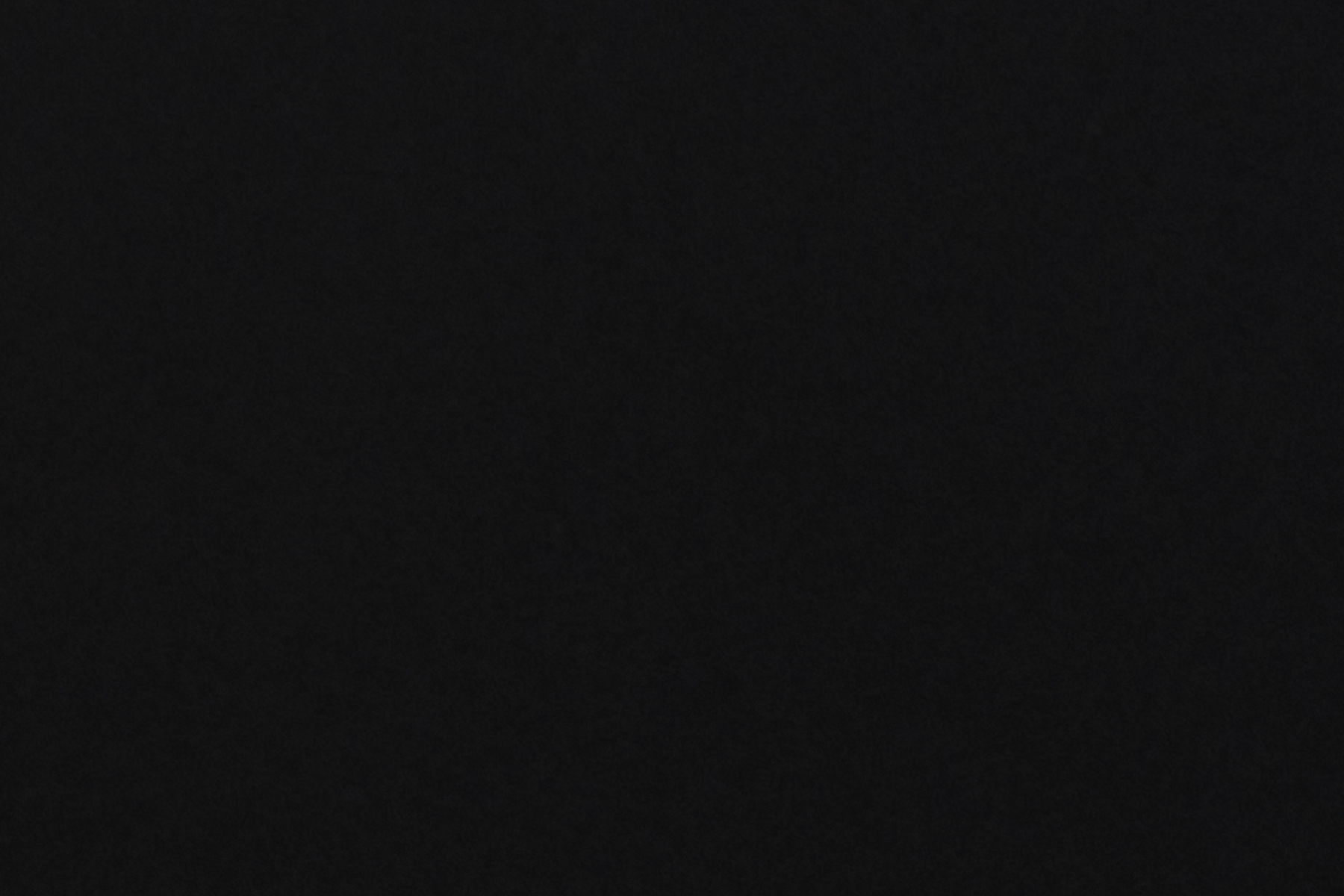

Omega - Polishing cloth

Suitable for fine polishing with fine polishing suspension
Soft synthetic cloth (chemical resistant)
For all materials
Suitable for oxide suspensions
Fixation system: X-Tap

Order Data

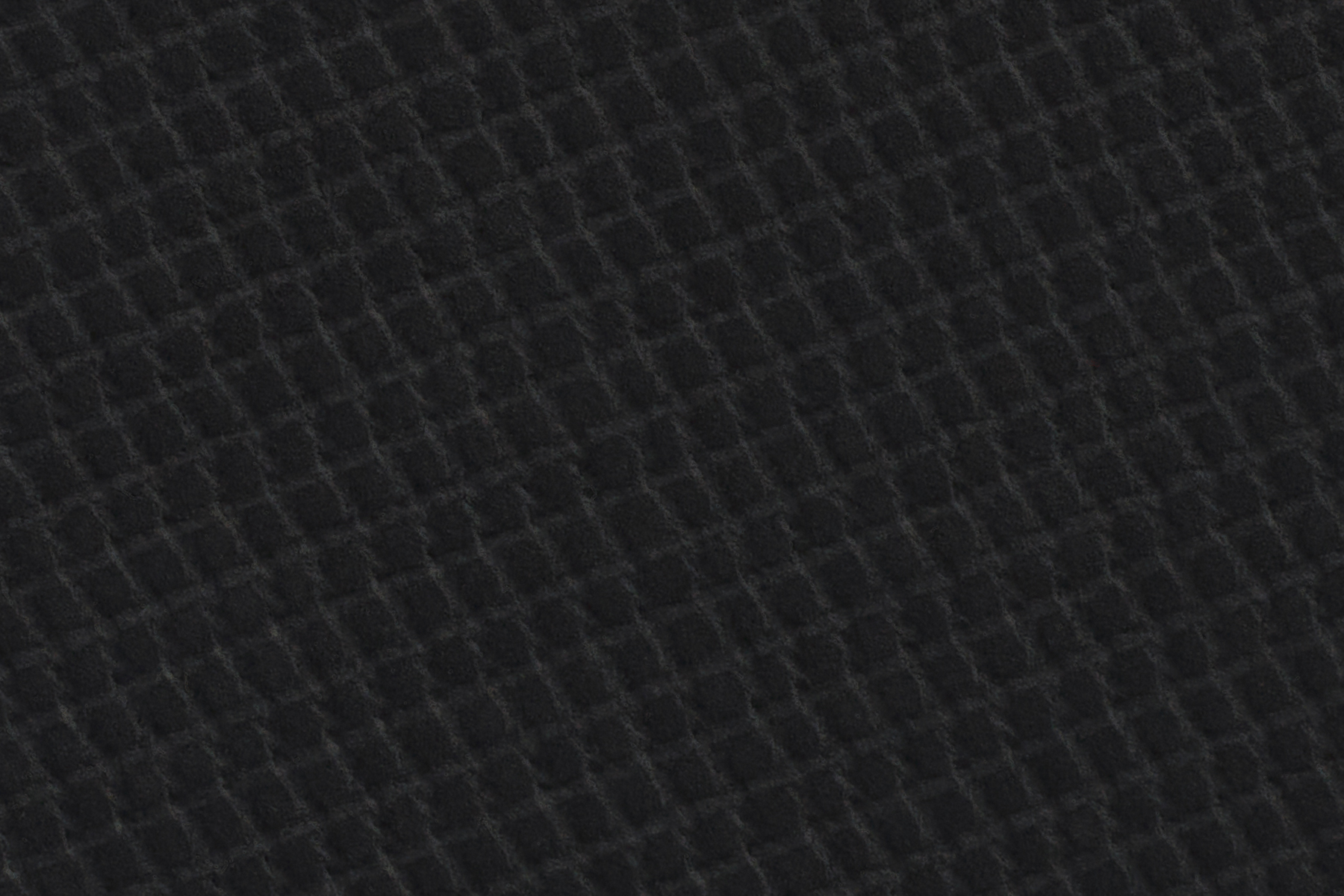

Lambda - Polishing cloth

Suitable for fine polishing with fine polishing suspension
Brushed, structured synthetic cloth (chemical resistant)
For all materials
Suitable for oxide suspensions as well as alumina
Fixation system: X-Tap

Order Data
