Quality assurance in materialography starts with an excellent cut.
For over 20 years, QATM‘s innovative precision cutting machines have been setting new standards and benchmarks in materialographic sample preparation. What makes our cutting machines so special? We design and develop machines that put precision and quality first. With the Qcut 200 as the follow-up model to the Brilliant 220, we have now further developed the popular model in the 4th generation. The Qcut 200 A remains unique on the market with its conceptual design of a large cutting machine in table format.
Product Advantages
The Qcut 200 A is a precision cut-off machine with up to 3 automatic axes for use with cut-off wheels up to 203 mm / 8‘‘ in size.
The Qcut 200 A is a compact, precision cut-off machine that offers the highest possible flexibility and use of space, with up to three automatic axes (X, Y, Z) and numerous cutting functions. Thanks to its modular design, the Qcut 200 A can be optimally equipped with numerous options and suitable clamping tools.
The large 7“ touch display is ergonomically arranged and easy to operate via the user-friendly software. The joystick ensures comfortable movement of the automatic axes.
Via the optional flow monitoring, constant cooling can be ensured when cutting sensitive samples with long cutting processes. The cutting process is automatically interrupted when a critical threshold value is reached.
Due to the enabling switch, the machine can only be positioned via the two-hand control when the door is open. This eliminates the risk of crushing for the machine operator.

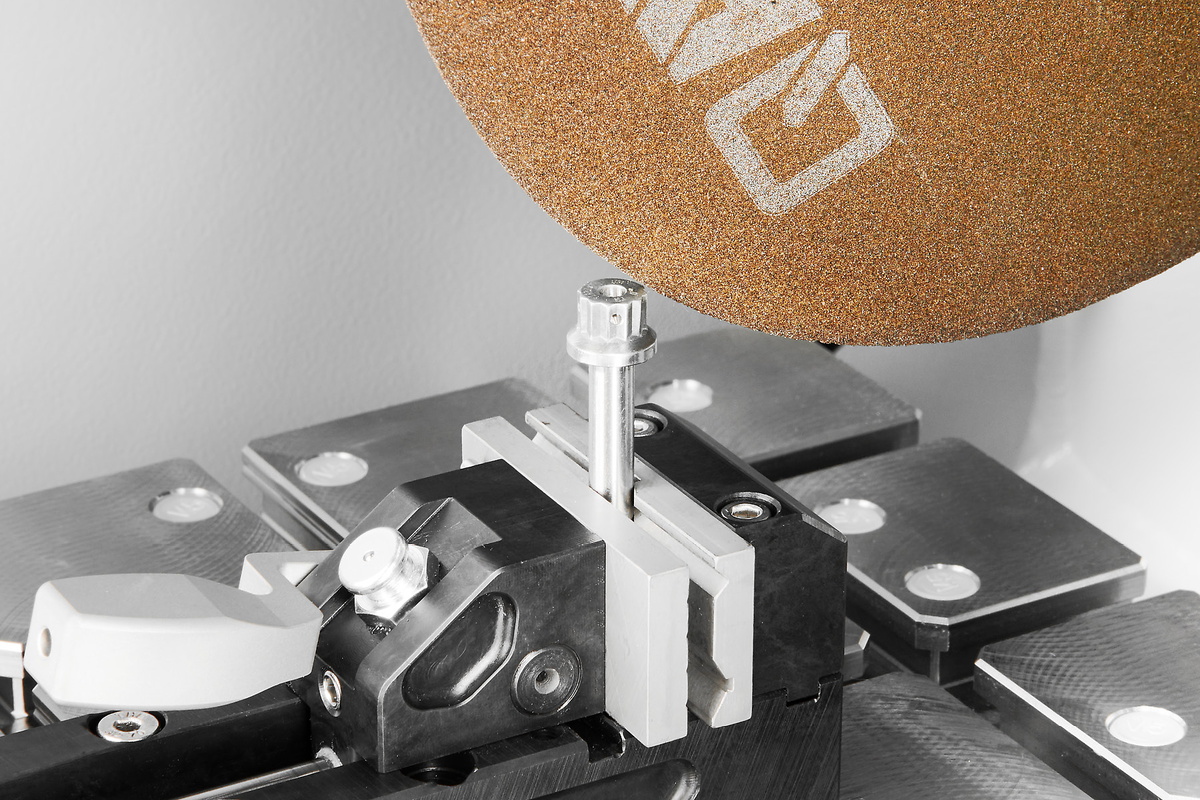

In addition to the proven automatic component detection, the machine also has a new type of exit detection (auto-stop function). Thus, the start and end points of the cutting process are automatically detected and process times are shortened.
The machine is cleaned fully automatically via the spiral nozzles in the cutting chamber. Cleaning can be switched on individually and, if required, starts automatically after each cut-off. For a clear view, it can also be switched on during cut-off operation.
Depending on the geometry of the component, the travel or chop cut is used to minimize the contact area between the component and the cut-off wheel. The step cut functions separate the workpiece layer by layer and optimize the angle of action for a material friendly cut. They are therefore particularly suitable for solid material.
With the new vacuum clamping unit, glass slides for thin sections can be fixed easily and without slipping.
With the new vacuum clamping unit, glass slides for thin sections can be fixed easily and without slipping.
1. Cutting chamber flushing
2. Large machine table
3. Ergonomic control panel
4. Line laser
5. Accessories
6. Cut-off wheel lock
7. Dressing device
A wide range of clamping tools is available for the Qcut 200 A. Using the Easy clamping system, they can be simple and securely fastened to the table with just one screw. This makes the tedious fixing of the clamping tools in the T-slots of the table unnecessary. The Easy clamping system is an innovative addition with a great impact on everyday work.

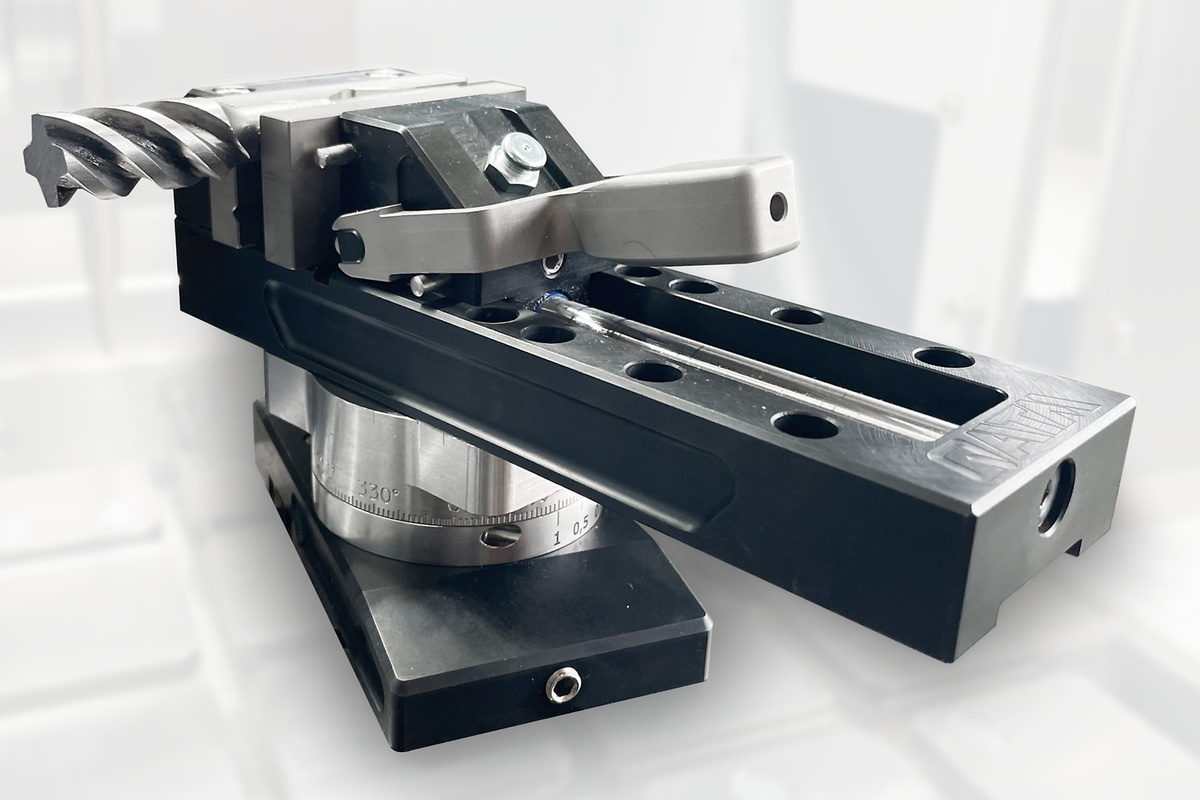

Easy-clamping base S with rotary function + easy adaption (vertical)
Easy-clamping base S with Qtool 40 S
Qtool 40
Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
Our innovative clamping devices are used to clamp workpieces securely and precisely to ensure exact cutting and grinding processes. There is a wide range of different clamping devices that have been developed for specific applications and workpiece sizes.
| Cut-off wheel | up to Ø 203 mm / 8" |
| Max. cutting capacity | 75 mm (cut-off wheel Ø 200 mm) |
| Wheel flange size | Ø 12,7 mm |
| X-axis | 210 mm (manual / automatic) |
| Y-axis | 80 mm (automatic) |
| Z-axis (option) | 80 mm (automatic) |
| Feedrate | 0.01 - 20 mm/s |
| Precision Z-axis | 0,005 mm |
| min. cross feed (Z-axis) | 0,001 mm |
| Table without Z-axis (WxD) | 300 x 210 mm |
| Table with Z-axis (WxD) | 280 x 210 mm |
| T-slot | 8 mm |
| Speed | 300 - 5000 rpm |
| Drive power (main drive) | 0,75 kW, S1 |
| Connection power | 2,2 kVA |
| W x H x D | 725 x 535 x 675 mm |
| Weight | ~ 82 kg |
