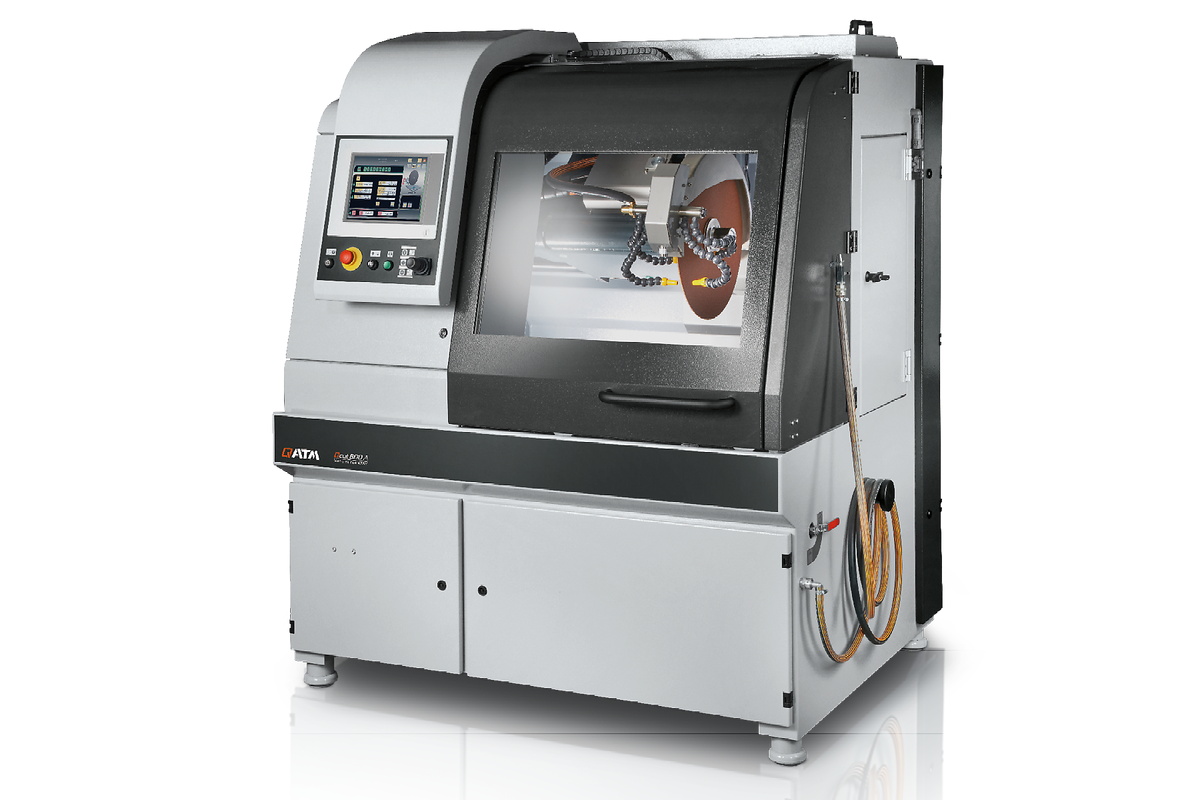

The industrial wet cut-off machine Qcut 600 A meets the highest of demands on space available and possibilities for cutting with its innovative concept for design, construction and operation.
A water-cooled 15 kW main motor is integrated into the swing arm and the automatic horizontal table (X-axis) and cutting wheel movement (Y-axis) can reach up to 80 mm/sec. through highly dynamic axis drives in rapid-run.
With a totally new approach with the automatic cross-feed movement (Z-axis) through the swing arm, the cutting chamber is ideally put to use. Parallel setting of the wheel guard during vertical cutting sequences increases the cutting capacity considerably.

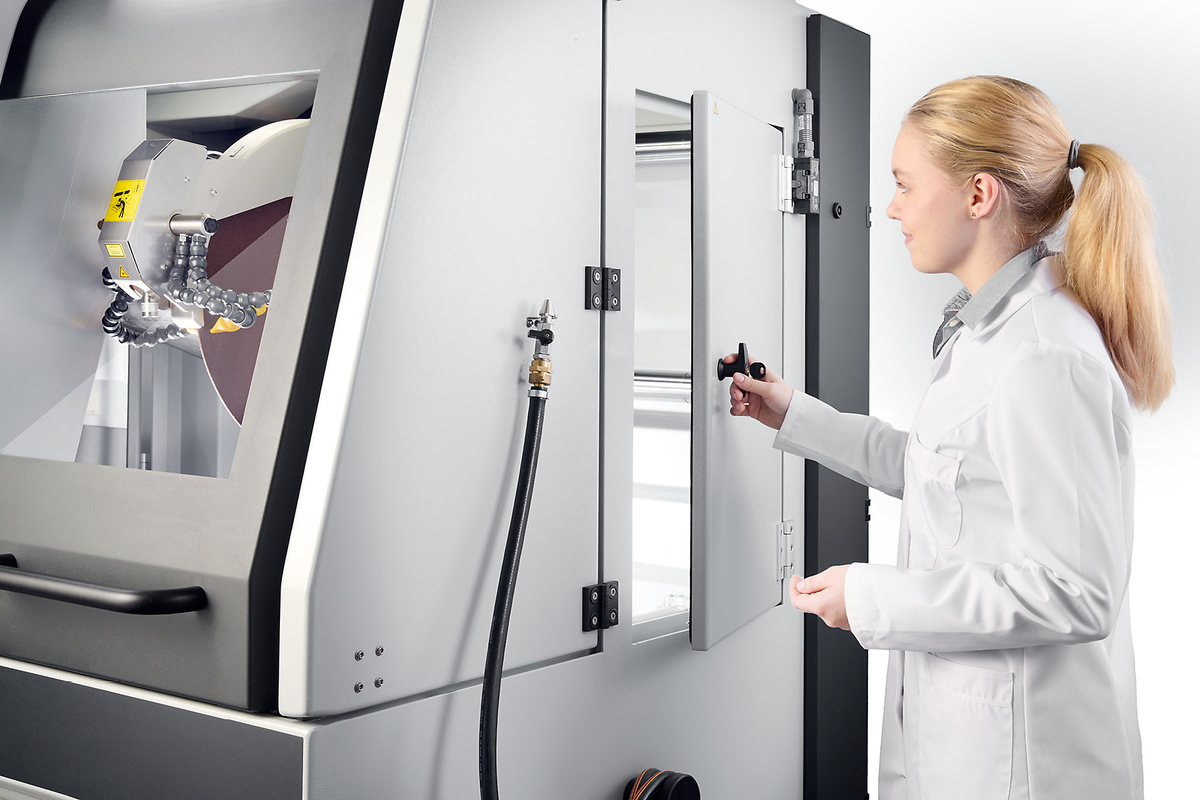

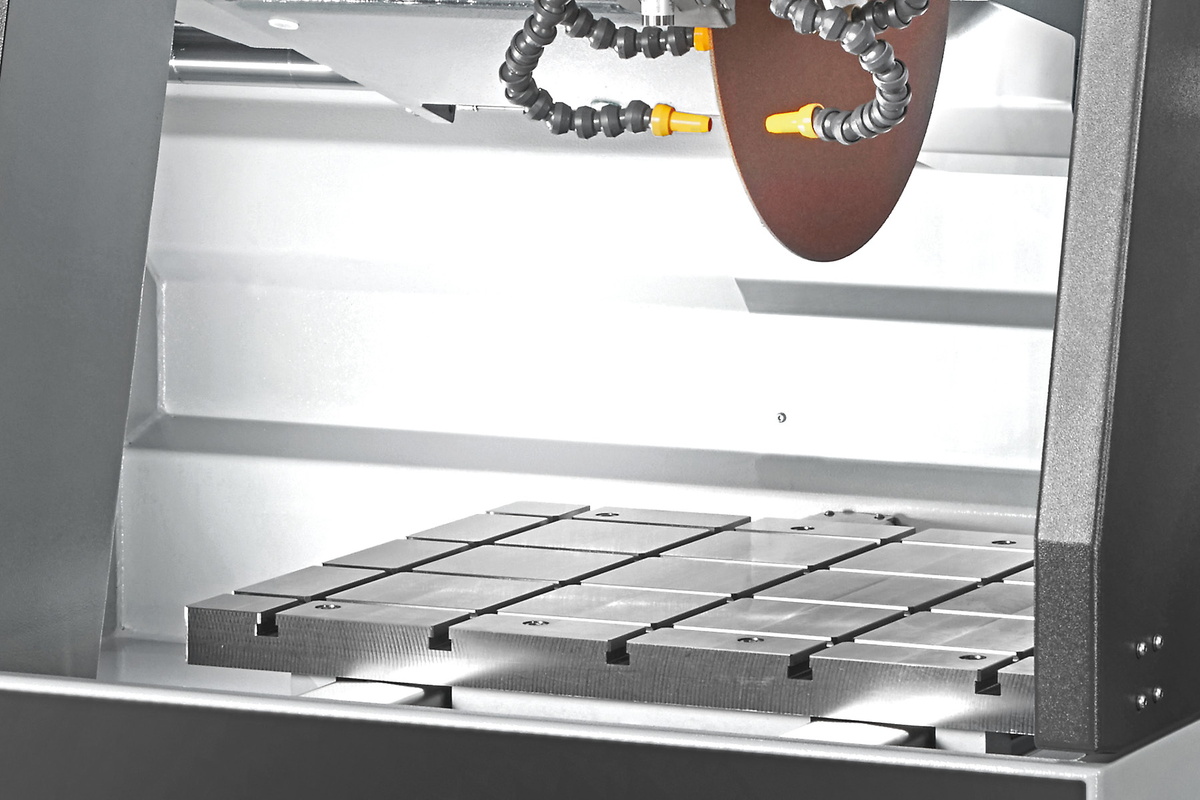

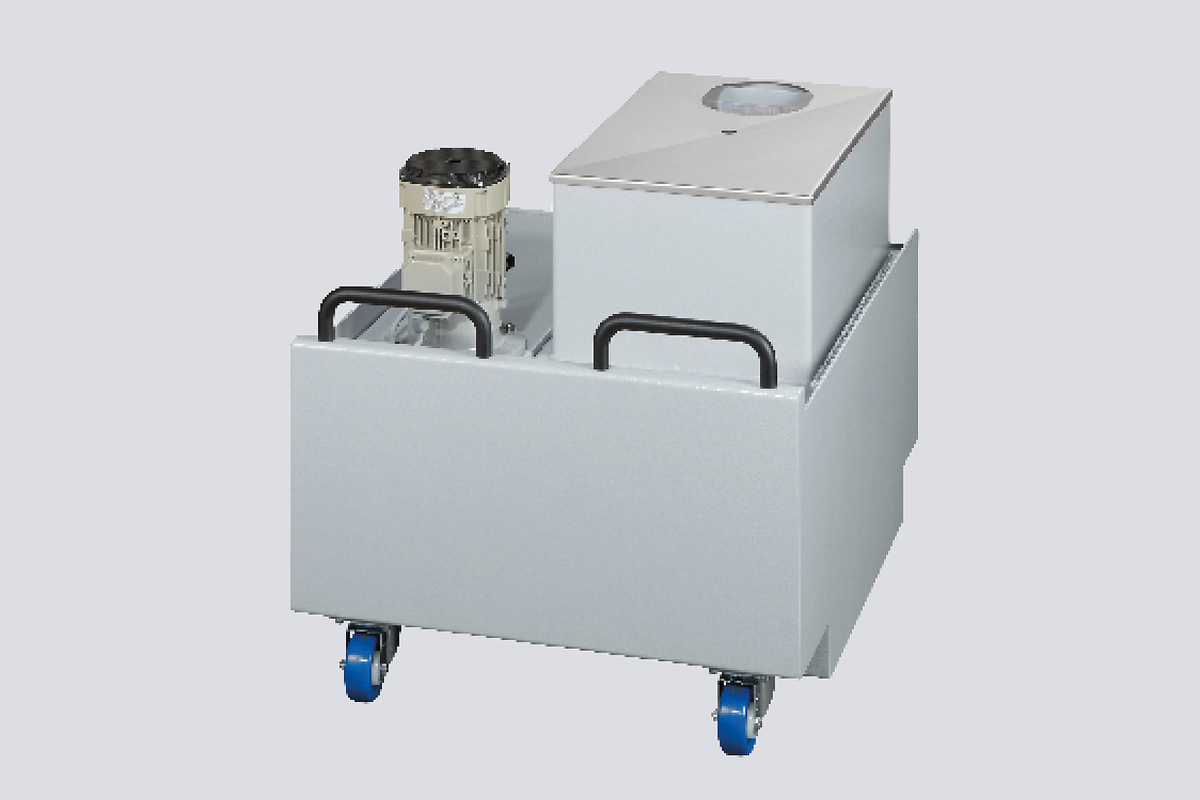

The large front and hinged door with safety lock enable access to the machine table with longitudinal and cross T-slots. The side door allows easy and convenient change of the cut-off wheel if Z-axis is set on the hard right position. Recirculating cooling and automatic central lubrication systems are integrated into the robust welded steel construction body of the machine.
A wide range of cutting procedures is at your disposal for the very best cutting results. Through the combination of this unlimited range of positions, series cuts or differing cut sequences can be made into reality. The cutting process is rightly supported by controlled cut-off wheel revolutions which can be held constant through an optional wheel measurement facility. Control of the cutting speed and a soft start control serve additionally for an economical cutting feed. Manual control commands in the X-/Z-/Y-axes are also possible using an industrial joystick. The operator console can be slid either to left or the right.
Travel and cutting wheel offer a wide-ranging repertoire of types of cut through different combinations. In addition to the linear diagonal cut, the layer and segment-cuts are recommended for gentle cuts. The layer-cut is well-suited for cutting taller and longer objects as well as solid material. The segment-cut is especially suitable for large objects and hard materials.

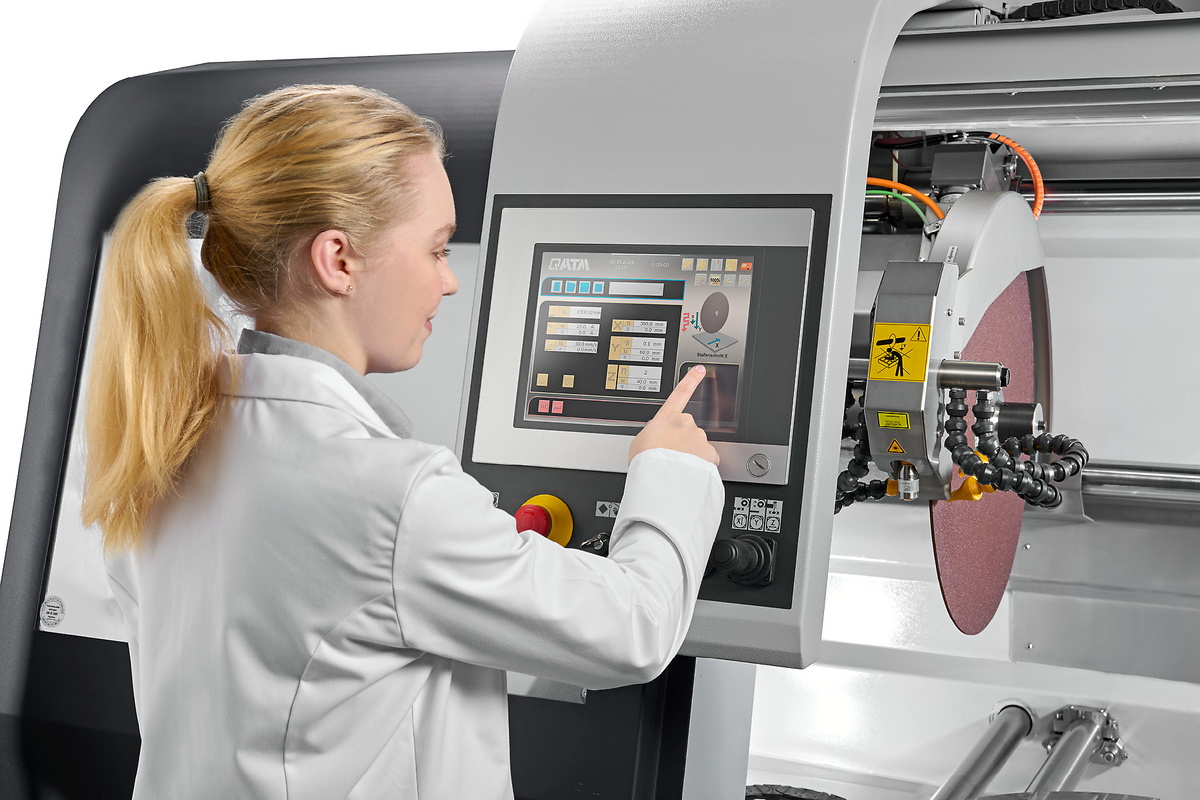

Touch-Screen display for the QATM-Software control is easy to read thanks to smart phone technology and even easier to operate. Compact program sequences are easy to compile and therefore enable automated program sequences. An unlimited number of password-secured program sequences can be updated and backed-up via USB.
With the “Multi-Position-Process” (MPP) you can place multiple specimens on the table and cut them in one sequence. The teach-in function enables a simple and user-friendly setting of various cutting positions.

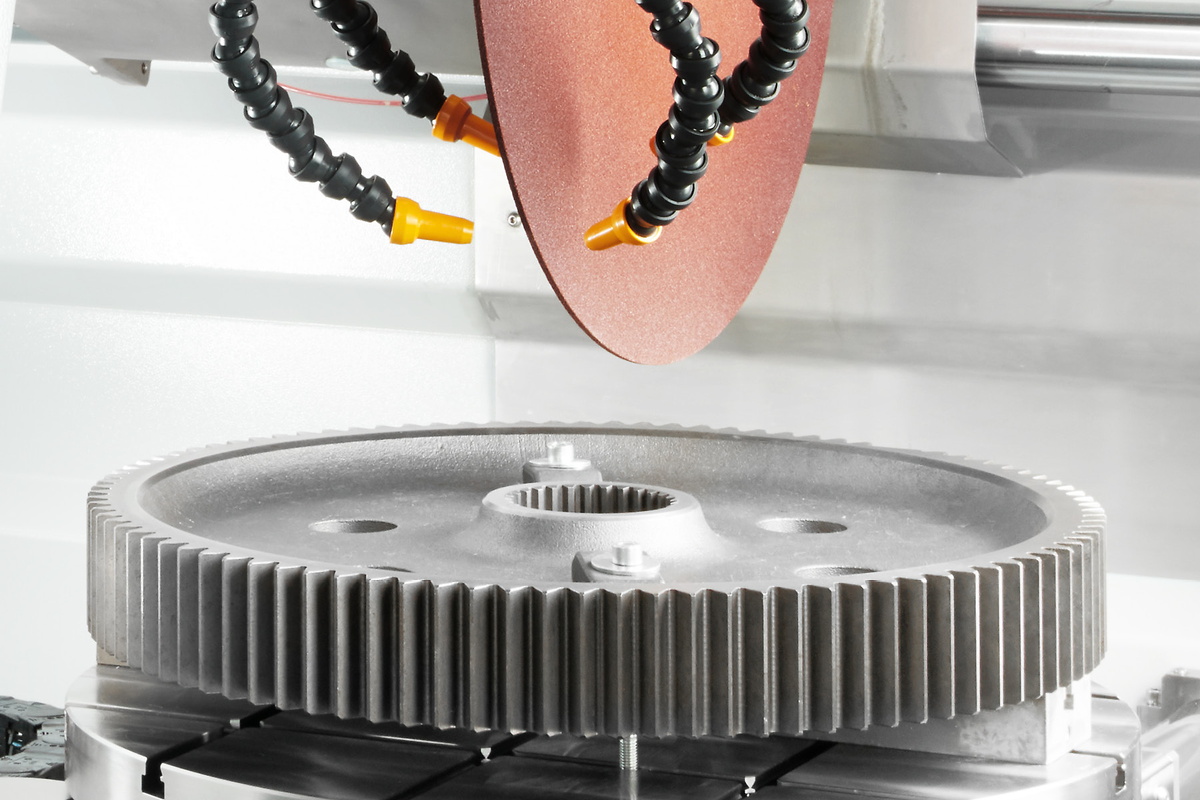

In addition to the type of cut, variable pulse-cut feed can also be selected. Rhythmic pulsed feed ensures regular cooling and removal of cutting debris from the sample.
With line laser you can display the scheduled cut on the sample. This helps to define the exact cutting position.
Using your existing broadband Internet connection, QATM provides an online fault diagnosis and operator support.
Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
Our innovative clamping devices are used to clamp workpieces securely and precisely to ensure exact cutting and grinding processes. There is a wide range of different clamping devices that have been developed for specific applications and workpiece sizes.
| Cutting wheel | up to ø 600 mm/24" |
| Max. cutting capacity | ø 244 mm |
| Max. way of cutting wheel into sample | 190 mm (cutting wheel ø 500 mm) |
| Wheel flange size | ø 32/40 mm |
| X-axis automatic | 550 mm |
| Y-axis automatic | 360 mm |
| Z-axis automatic | 550 mm |
| Precision Z-axis | 0.1 mm |
| Table WxD | 750 x 600 mm, stainless |
| T-slot | 12 mm |
| Speed | variable 1000-2400 rpm |
| Drive power (main drive) | 15 kW S1 |
| Connection power | 30 kVA |
| W x H x D | 1488 x 1960 x 1477 mm |
| Weight | ~ 1600 kg (depends on equipment) |
