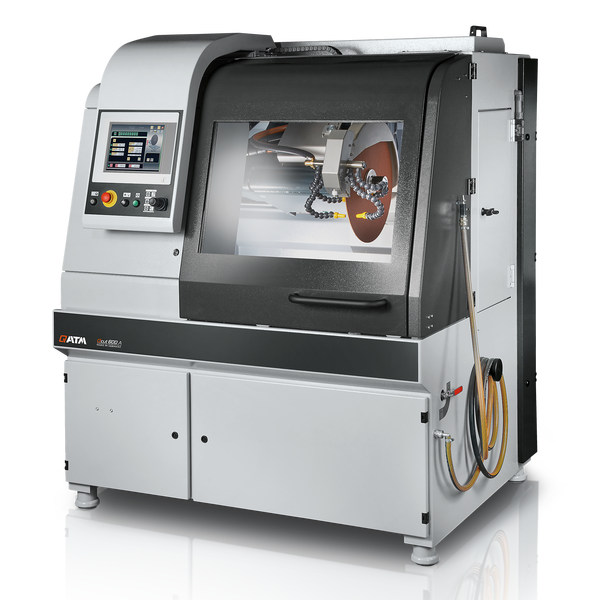

Cut-off machine Qcut 600 A

Cut-off machine Qcut 600 A

With the list below, you may request a free, non-binding quote.

Please select the items you would like to include by adding them to your inquiry list. You may choose items from any product page.

Your inquiry list will be visible in the upper right corner of the website.

General Inquiry

Not sure which items you need or you prefer a general quote?

Send us a general inquiry

Basic Equipment

Machine (all items required)

M1831000
Qcut 600 A (Brillant 285) Base machine


Power supply (1 item required)

A1831000Qcut 600 A power supply 400V/50Hz (3Ph/N/PE)
A1831002Qcut 600 A power supply 480V/60Hz (3Ph/PE)


Basic set (item required)

Z1831000Basic set for Qcut 600 A


Wheel guard (1 item required)

A1831001Qcut 600 A wheel guard 500mm
A1831010Qcut 600 A wheel guard 600mm


Recirculation system (1 item required)

A1831005Qcut 600 A recirculation system 400V/50Hz (3Ph/PE)
A1831006Qcut 600 A recirculation system 480V/60Hz (3Ph/PE)
A6501000Belt filter 285 400V/50Hz (3Ph/PE)
A6501002Belt filter 285 480V/60Hz (3Ph/PE)
Z6501007Connection set belt filter 285


Options (to be ordered with machine)

A1831003Qcut 600 A automatic wheel measurement laser
A1831004Qcut 600 A laser alignment aid
A1831007Qcut 600 A centrifugal separator 400V/50Hz (3Ph/PE)
A1831009Qcut 600 A centrifugal separator 480V/60Hz (3Ph/PE)


Options (can be ordered separately)

Standard clamping vices

Z2236026Easy clamping plate XL
Z2231200Qtool 80, 100 mm
Z2231201Qtool 80, 150 mm
Z2231202Qtool 80, 250 mm
02231212Clamping jaw, 70 mm
02231213Prism jaw, 40 mm
02231229Bevelled jaw, 40 mm
Z1340000Cross vice 80 - 100
Z1350002Universal vice Mono 61
Z1350004Suitcase set universal vice Mono 61
Z1350011Universal vice Mono 132


Various clamping vices for cutting machines



Easy-clamping plates

Z2236011Easy-clamping plate L
Z2236026Easy-clamping plate XL
Z2236032Easy adaption horizontal
Z2236033Easy adaption vertical
Z2236034Easy adaption Qtool 40 - 60
Z2236005Rotatable plate
Z2236007Head 2
Z2236016Head 3
Z2236025Head 4
Z2236021Swing prism 60
Z2236023Swing prism 100
Z1870028Vacuum sample holder
Z1304600Vacuum pump 230V/50Hz for vacuum sample holder
Z1304634Vacuum pump 110V/60Hz for vacuum sample holder
Z2236017Swivel unit vice 50
Z2236018Swivel unit vice 60
Z1304631System height element 50mm
Z1304624Prism clamping plate 40
Z2236013Set of center bolts


Fast-lock vices

Z2231200Qtool 80, 100 mm
Z2231201Qtool 80, 150 mm
Z2231202Qtool 80, 250 mm
Z2231210Workpiece stop
02231200Clamping jaw, 40 mm - for Qtool 80 Vario
02231212Clamping jaw, 70 mm
02231213Prism jaw, 40 mm
02231229Bevelled jaw, 40 mm
02231230Cross prism jaw, 40 mm
02231231Round bar jaw, 70 mm slotted
02231232Prism jaw, 70 mm slotted
02231233Clamping jaw, 70 mm slotted
Z2231001Fast-lock vice 80 lever left 100mm
Z2231003Fast-lock vice 80 lever right 100mm
Z2231002Fast-lock vice 80 lever left 150mm
Z2231004Fast-lock vice 80 lever right 150mm
Z2231020Fast-lock vice 80 lever left 250mm
Z2231021Fast-lock vice 80 lever right 250mm
02231016Prism jaw for vice 80
Z1304560Swivelling plate 2x 60°


Cross vices

Z1340000Cross vice 80 - 100
Z1340001Cross vice 80 - 150


Angle and rotating vices

Z1304001Angle vice 60
01304008Prism jaw angle vice 60
Z1302000Angle vice 80
01302016Prism jaw angle vice 80
Z1304002Rotating vice 60


Universal vices and accessories

Z1350002Universal vice Mono 61
Z1350004Suitcase set universal vice Mono 61
Z1350011Universal vice Mono 132
Z1350005Universal vice Duo
Z1350006Chain vice set
92005796Longitudinal v-shoe (suitable for all universal vices)
92005797Traverse v-shoe (suitable for all universal vices)
92005799Longitudinal bridge (suitable for all universal vices)
92005800Traverse bridge (suitable for all universal vices)
92005798Standard clamping shoe (suitable for all universal vices)
Z1350007Height adapter 60mm Piccolo
Z1350003Height adapter 74mm Mono
95003172Clamping arm extension Piccolo 54 and Mono 61


General fixture material

Z1304591Fixing screw M6 x 25
95003169Fixing screw Piccolo M8x25
95003170Fixing screw Piccolo M10x25
95003168Fixing screw Mono M10x32
91001157T-slot nut - stainless M6 x 8
91001161T-slot nut - stainless M8 x 10
91001159T-slot nut - stainless M8 x 12
91001158T-slot nut - stainless M10 x 12
