Grinding & Polishing Machine Qpol 300 A2-ECO+

Request a quote
Create PDF

Language:

The Qpol 300 A2-ECO+ is a double-wheel grinding and polishing machine for the metallographic laboratory, suitable for working wheels Ø 250/300 mm. The machine is conveniently operated by a 4.3 "touch screen.

The new holder for the working wheel (single-disc design) enables metallographic sample preparation without carrier disc without compromising performance. The control software allows to edit and save up to 200 preparation methods, protected by a user account management.

Pressure, speed and direction of rotation (head and working disc) are adjustable. A spin cycle function (Cleaning Boost) helps to spin dry the grinding and polishing medium at 750 rpm at the end of the preparation process within 3 seconds.

The robust grinding and polishing machine can be combined with the dosing system Qdoser ECO or Qdoser ONE and offers maximum flexibility for sample preparation and operating convenience.

Grinding & Polishing Machine Qpol 300 A2-ECO+ Convincing benefits

Operating comfort

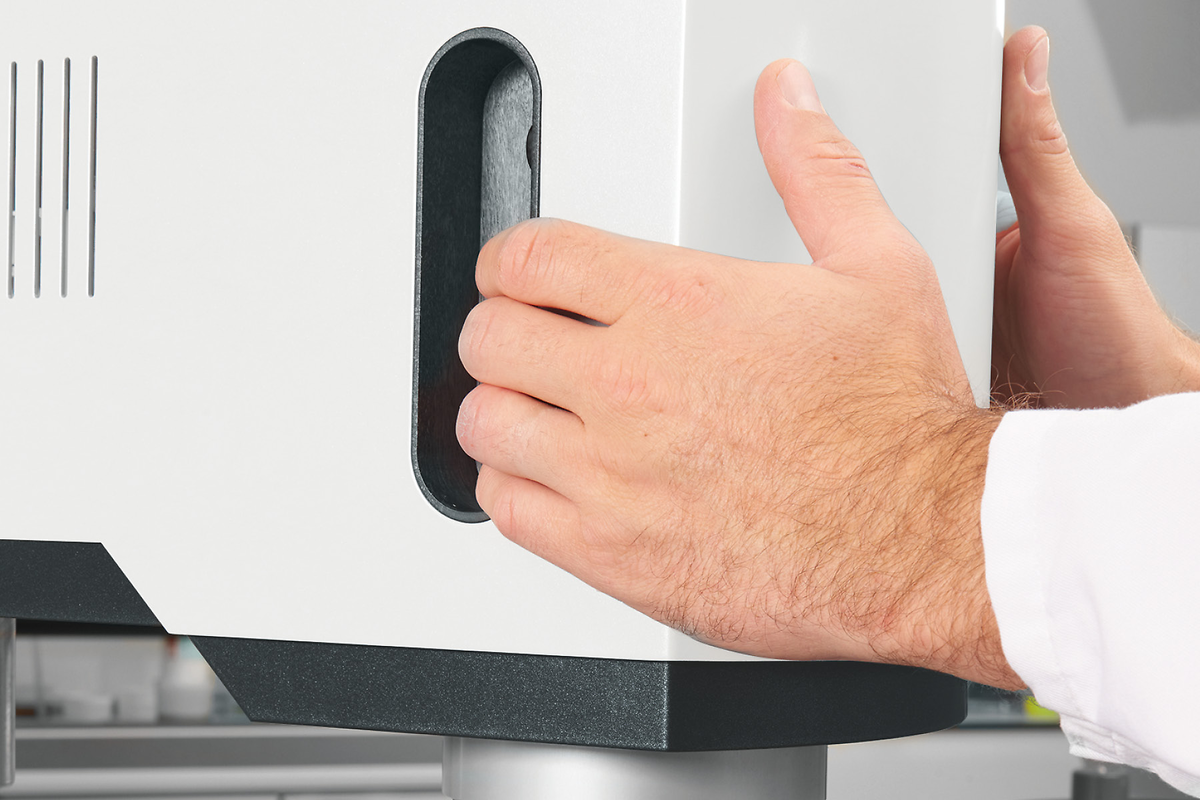

The ECO+ grinding & polishing head with adjustable swivelling limits is equipped with recessed grips on both sides and integrated buttons for easy swivelling and adjustment. A large gap between the working surface and the polishing head ensures convenient changing of the sample holder.

Single-Disc design

Single-Disc design

After removal of the splash protection ring, the working wheel is freely accessible. The wheel is automatically arrested when placed on the new mounting system. On lifting the wheel, all parts below are accessible for easy cleaning.

Eco+ polishing head

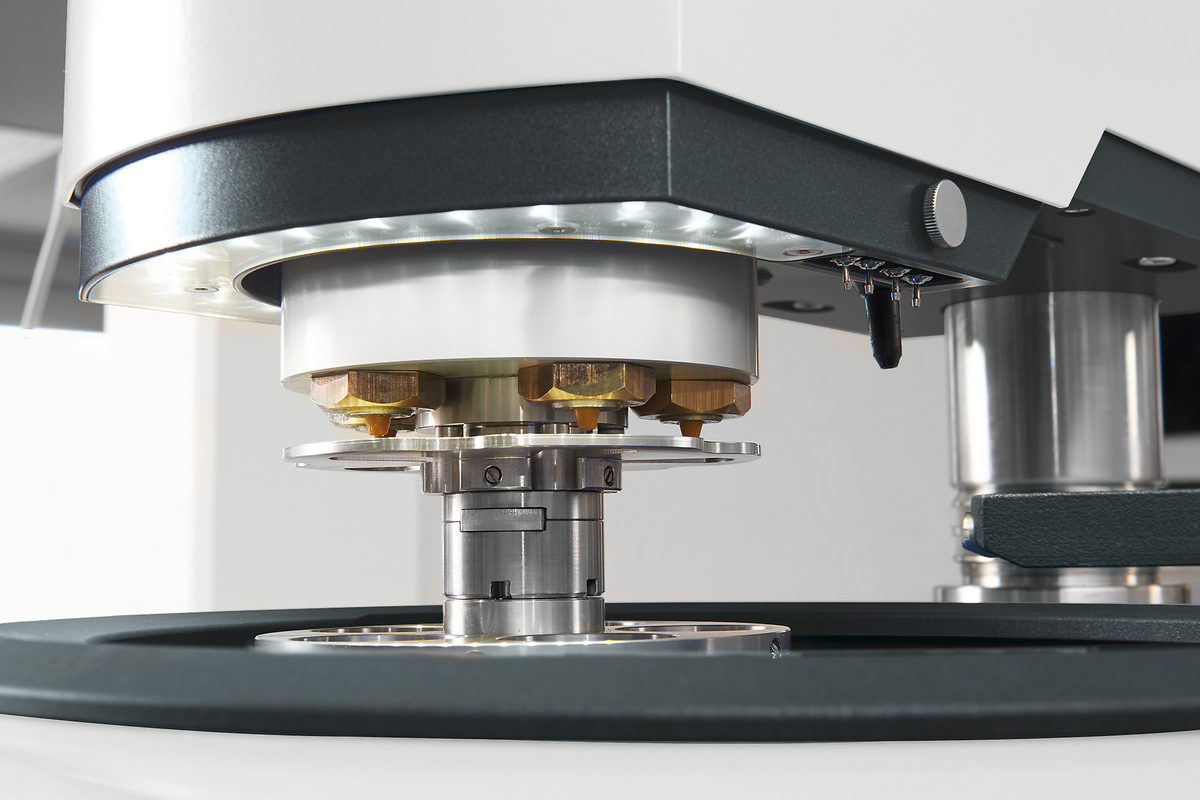

The ECO+ polishing head is equipped with LED illumination of the working area and a holder for the nozzles of the Qdoser ECO and Qdoser ECO+ dosing systems. Water is supplied automatically via the head.

Sample holders

Sample holders

QATM offers a wide selection of standard sample holders in various diameters and for different applications and machines. Samples with unusual dimensions can be clamped with the help of special design sample holders.

Electronic control system

Electronic control system

The machine is operated and programmed via the 4.3“ touch screen. Preparation methods for sample preparation may be edited and saved. It is also possible to prepare samples manually.

Optional dosing unit Qdoser ECO / ECO+ / ONE

Optional dosing unit Qdoser ECO / ECO+ / ONE

The automatic grinders and polishers can be combined with the fully automatic dosing system Qdoser ECO/ECO+ or the manual dosing solution Qdoser One, thus offering a high degree of flexibility for sample preparation and ease of use.

Perfect grinding and polishing – Consumables by QATM

Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

Grinding & Polishing Machine Qpol 300 A2-ECO+ Technical Data

Model variantTwin wheel
Working wheelsø 250/300 mm
No. of samples (single pressure)1-6 samples ø 50 mm
Single pressing forcevariable, 5-80 N
Central pressing forcevariable, 20-350 N
Connection power3.3 kVA
Drive power (grinder)0.75 kW (S1)
Drive power (head)0.18 kW (S1)
Speed (grinder)30 - 600 min-1
Speed (head)30 - 160 min-1
W x H x D901 x 530-610 x 710 mm
Weight~ 78 kg
Water connection1x fresh water connection R½" max. 6 bars
Dosing system (option)Qdoser ECO / ECO+

Grinding & Polishing Machine Qpol 300 A2-ECO+ Dosing units Qdoser ECO / Qdoser ECO+

The Qdoser ECO and Qdoser ECO+ fully automatic dosing units speed up grinding and polishing processes in the materialographic laboratory and are designed for use with the automatic grinding machines of the Qpol 250/300 A series. 4 screwable 500 ml glass bottles can hold diamond suspensions, lubricant or final polishing suspensions and can be filled through a separate lid, even during operation. They are quickly removed for easy cleaning.
The dosing nozzles are easily attached to the grinding and polishing head. The dosing is controlled fully automatically by the software of the Qpol devices. A backflushing function keeps the hoses clean.

  • Qdoser ECO for all Qpol 250/300 A grinders/polishers for 3x diamond suspension and 1x lubricant or 4x diamond suspension Dia-Complete
  • Qdoser ECO+ only for Qpol 300 A-ECO+ grinders/polishers for 3x diamond suspension, lubricant or All-In-One diamond suspension and 1x final polishing suspension
  • Adjustable interval
  • Reverse rinsing function
  • Controlled by the control software of the Qpol 250/300 A grinders/polishers
  • Suspension containers refillable and removable
  • incl. nozzles (inserted into a holder attached to the head)
Dosing Unit Qdoser ECO
