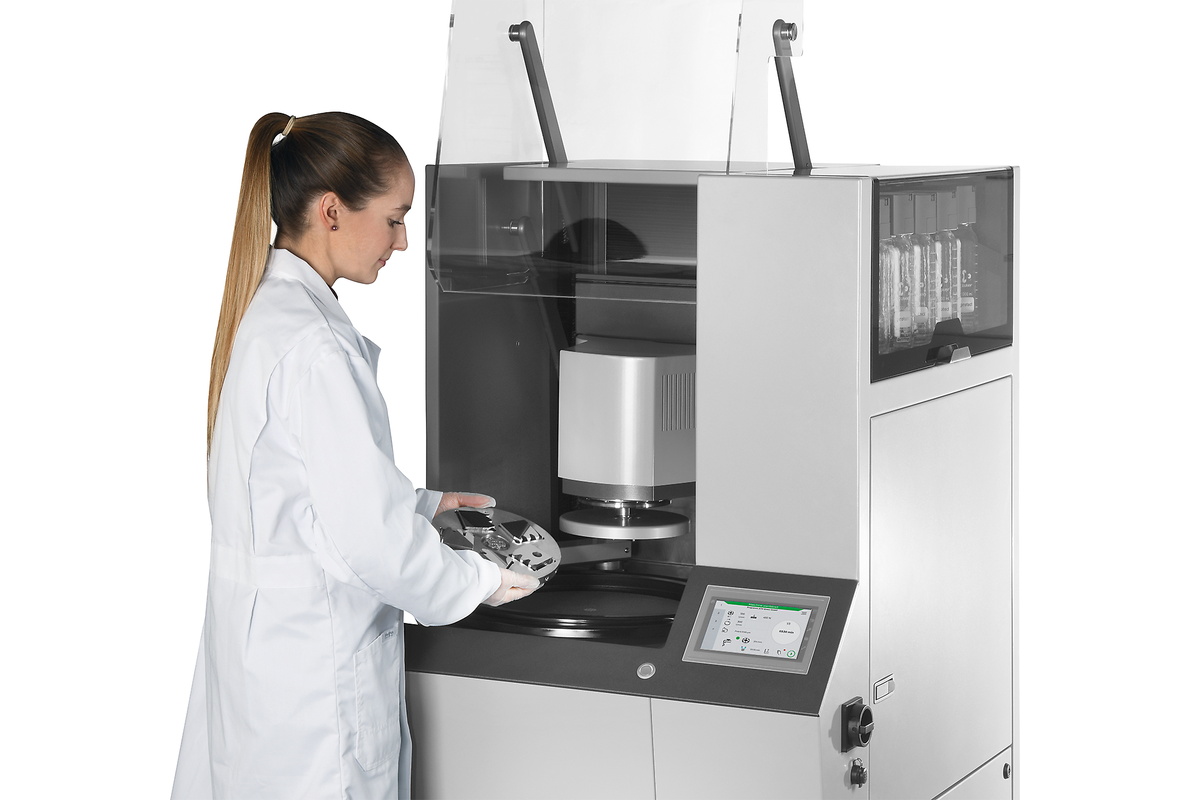

High sample throughput with maximum reliability: The Qpol XL is a robust and powerful powerhouse with unique removal performance and excellent preparation results. With maximum stability of body and polishing head, this unit is part of a series of QATM floor standing polishing machines.
The integrated load cell and the innovative motorized force control allow defined material removal and highest process reliability. The storage of up to 200 preparation methods is possible in the intuitive software as well as professional user management.
The basic requirements when developing the automatic grinder / polisher Qpol XL were a corpus and polishing head of utmost stability. A solid steel construction, powder-coated and a working area lined with stainless steel emphasize the sustainable, and at the same time modern and compact, machine design – made in Germany.
The QATM Qpol XL comes with a system for precise measurement of material removal – regardless of operating time, sample type, material and hardness, you can easily monitor the material height already removed.
The drive motor of the working wheel has a power of 2.2 kW and the polishing head of 1.1 kW. The speed of both systems can be operated in clockwise and counter clockwise direction as well as in oscillating movement.
In the cleaning station specimens are automatically cleaned with water, ethanol and air or by spin cycling at up to 800 rpm (adjustable). Thus, each preparation step is finalized with a cleaning step to avoid cross contamination.
QATM offers a wide selection of standard sample holders with different diameters and for a variety of applications and machines. Clamping of samples with unusual dimensions can be realized with special sample holders.
The fully loaded motorized swivelling dosing arm provides uniform wetting of the working wheel. It offers automatic referencing, automatic nozzle rinsing as well as good accessibility to the dosing hoses.
The motorized acryl glass safety hood protects the working area of the machine. The transparent hood is equipped with a safety switch and opens automatically when the program is finished. For easy cleaning the hood can simply be unhinged.
Direct suction of vapor from the working area through suction nozzle.
The modern design of QATM’s proven control software allows for intuitive and user-friendly operation. Standard preparation methods and typical consumables are preinstalled.
Features

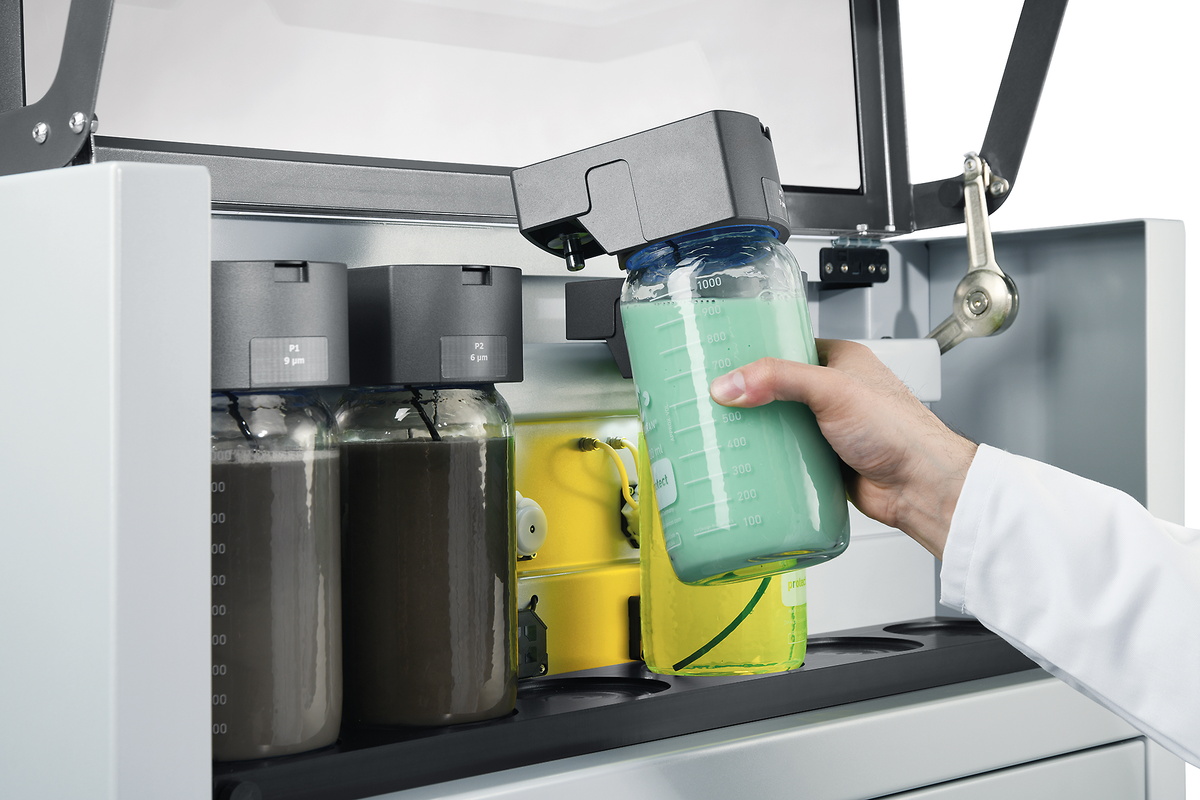

The cleverly integrated dosing system accommodates up to 6 Qdoser Duran glass bottles (1L). When equipping the Qpol XL with “Preparation Dosing System”, the suspension containers can be retrofitted in packages of 2, preparing your Qpol for all future requirements. Details like the gentle illumination of the containers and the soft-closing hood top off this well-thoughtout equipment option.
The dosing system can be equipped with a magnetic stirrer. The automated stirring ensures optimum distribution of abrasive particles contained in the suspension before usage. This homogenization process significantly improves the preparation result. The new level detection for suspensions gives a warning before the container is empty, which is refillable in the ongoing process.
The spin cycle function „Cleaning Boost” is integrated into the software and spins the residual liquid off the grinding/polishing medium at the end of the preparation process with max. rpm for 3 seconds.
The optional signal lamp allows monitoring of your Qpol XL from a distance: The red/yellow/green lights show the current state of the machine at a glance.

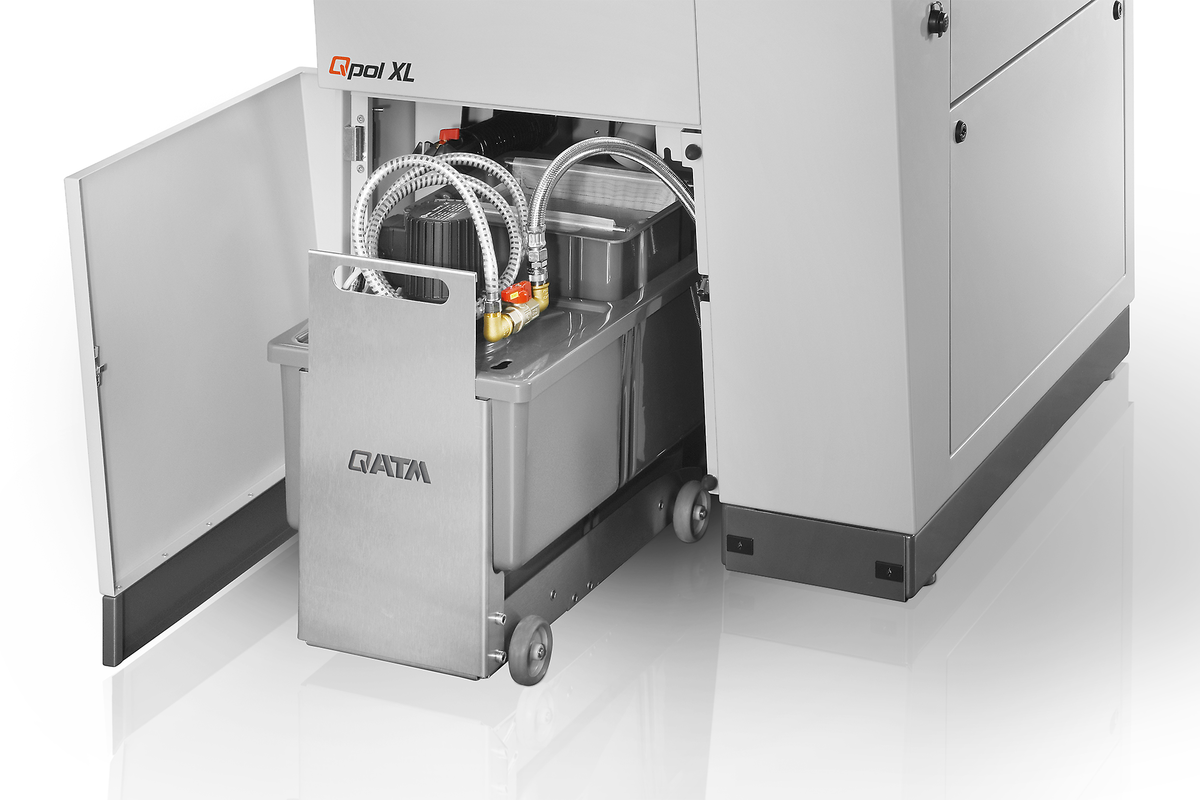

Seamlessly incorporated into the machine base and easily accessible via push-to-open door. Lateral guidance of the extendible and rollable unit via slide rails.
Integrated spiral rinsing hose with ball valve allows for manual cleaning of the working area.
Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
| Working wheels | ø 300 / 350 mm |
| Speed working wheel | variable (50 – 600 rpm) |
| Running direction working wheel | right |
| Sample holder | ø 159 - 204 mm |
| Speed sample holder | variable (50 – 350 rpm) |
| Running direction sample holder | right / left |
| Pressing system | Central pressing force |
| Central pressure | 50 – 750 N |
| Drive power working wheel | 2.2 kW (S1 operation) |
| Drive power head | 0.75 kW (S1 operation) resp. 1.1 kW (S3 operation) |
| Connection power | 6 kVA |
| Power supply | 400 V, 50 Hz (3Ph / N / PE) / 480 V, 60 Hz (3Ph / N / PE) / 220 V, 60 Hz (3Ph / N / PE) |
| Weight (depending on configuration) | ~ 390 kg |
