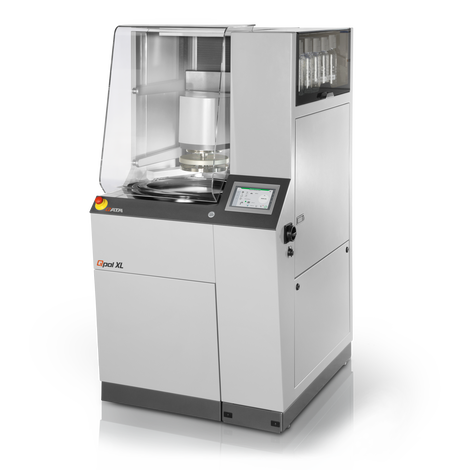

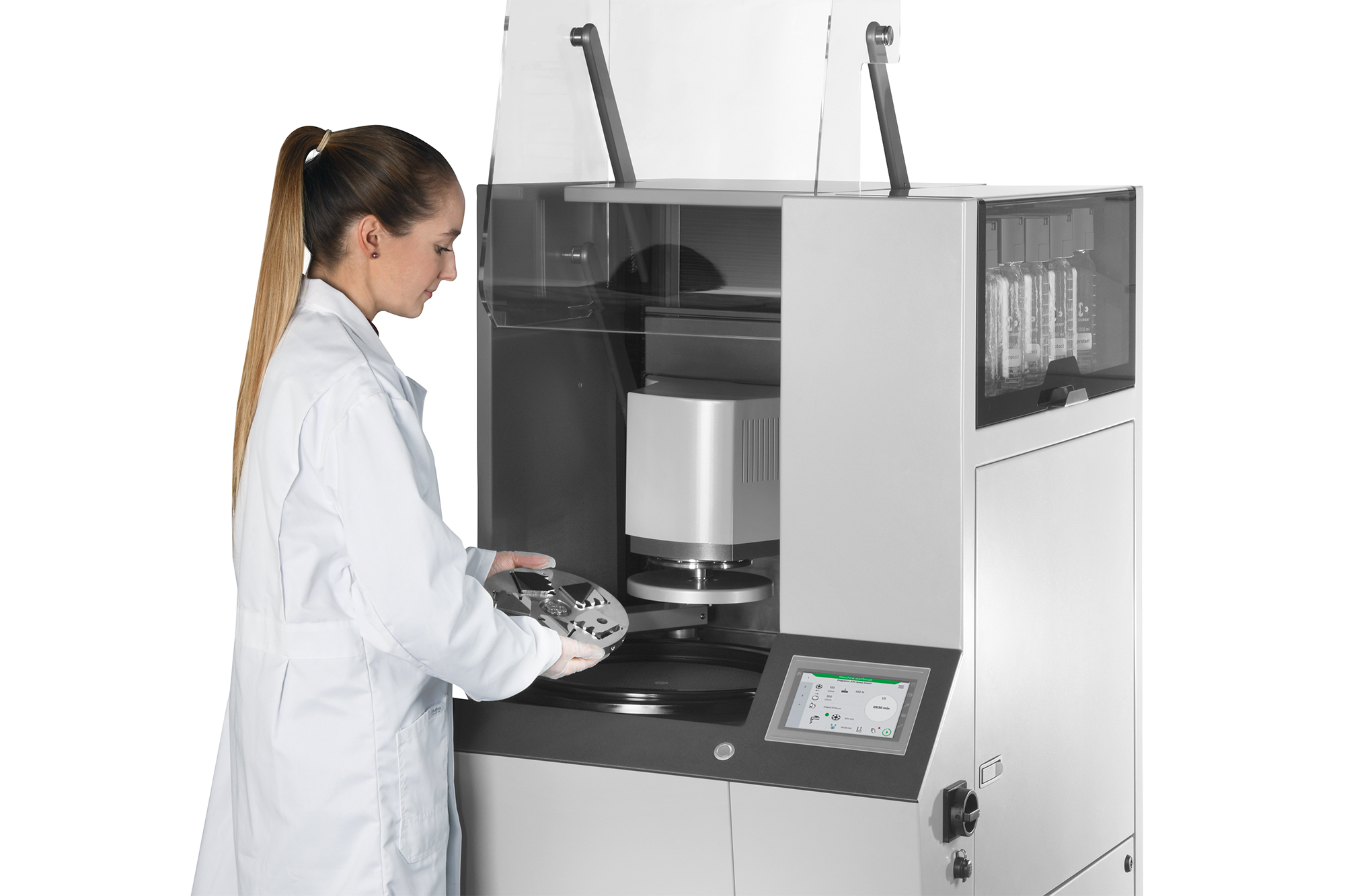

Grinding & Polishing Machine Qpol XL

With the list below, you may request a free, non-binding quote.

Please select the items you would like to include by adding them to your inquiry list. You may choose items from any product page.

Your inquiry list will be visible in the upper right corner of the website.

General Inquiry

Not sure which items you need or you prefer a general quote?

Basic Equipment

Machine (all items required)

M5700010
Qpol XL Base machine 400V/50Hz (3Ph/PE)
M5700020
Qpol XL Base machine 480V/60Hz (3Ph/PE)
M5700030
Qpol XL Base machine 220V/60Hz (3Ph/PE)


Basic set (item required)

Z5700001 Basic set for Qpol XL


Media connection (1 item required)

A5700011Media connections back side
A5700012Media connections right-hand side


Cleaning (1 item required)

A5700021Without cleaning station

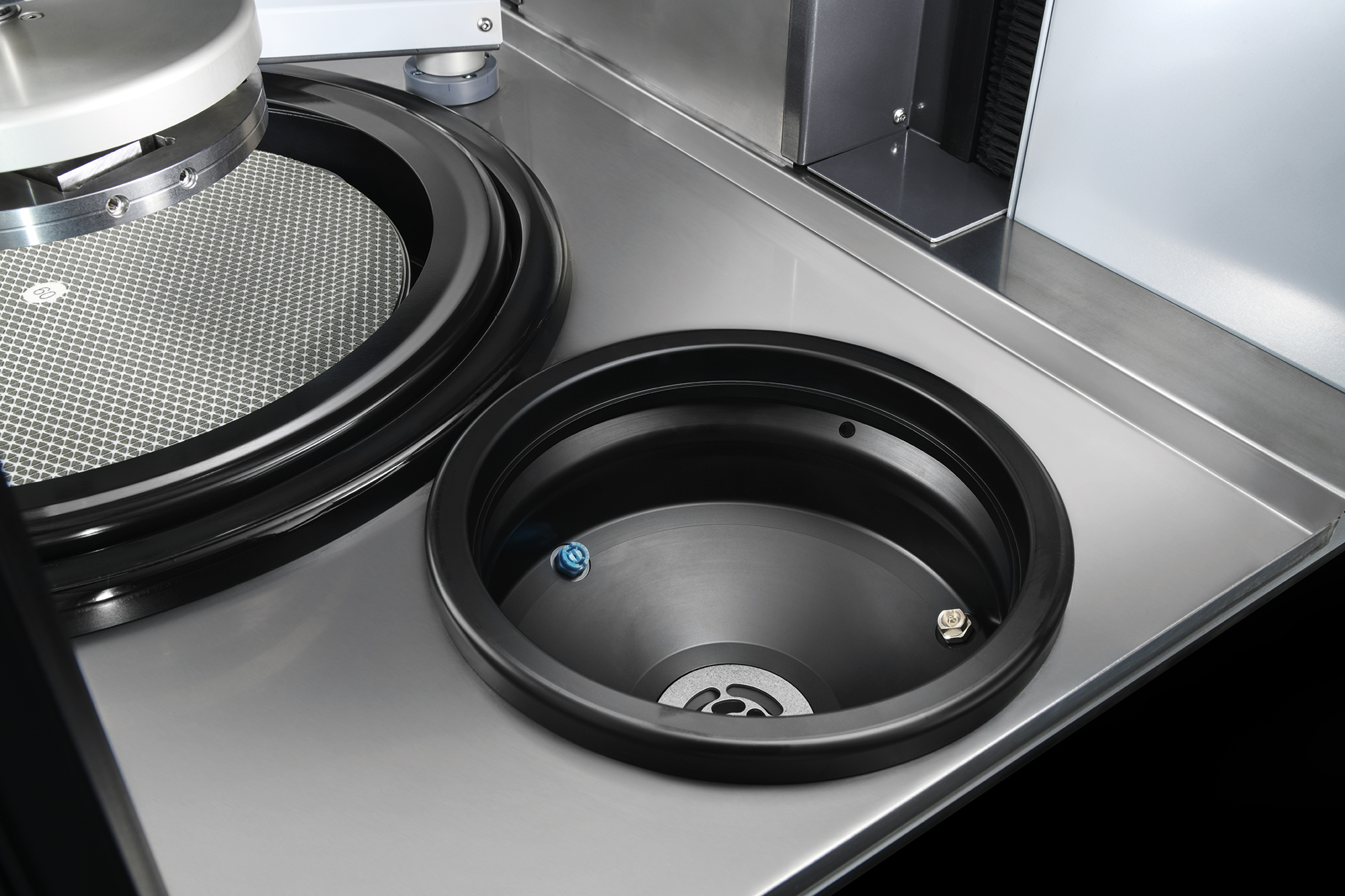

A5700022Cleaning station


Waste water (1 item required)

A5700031Equipment for direct drain

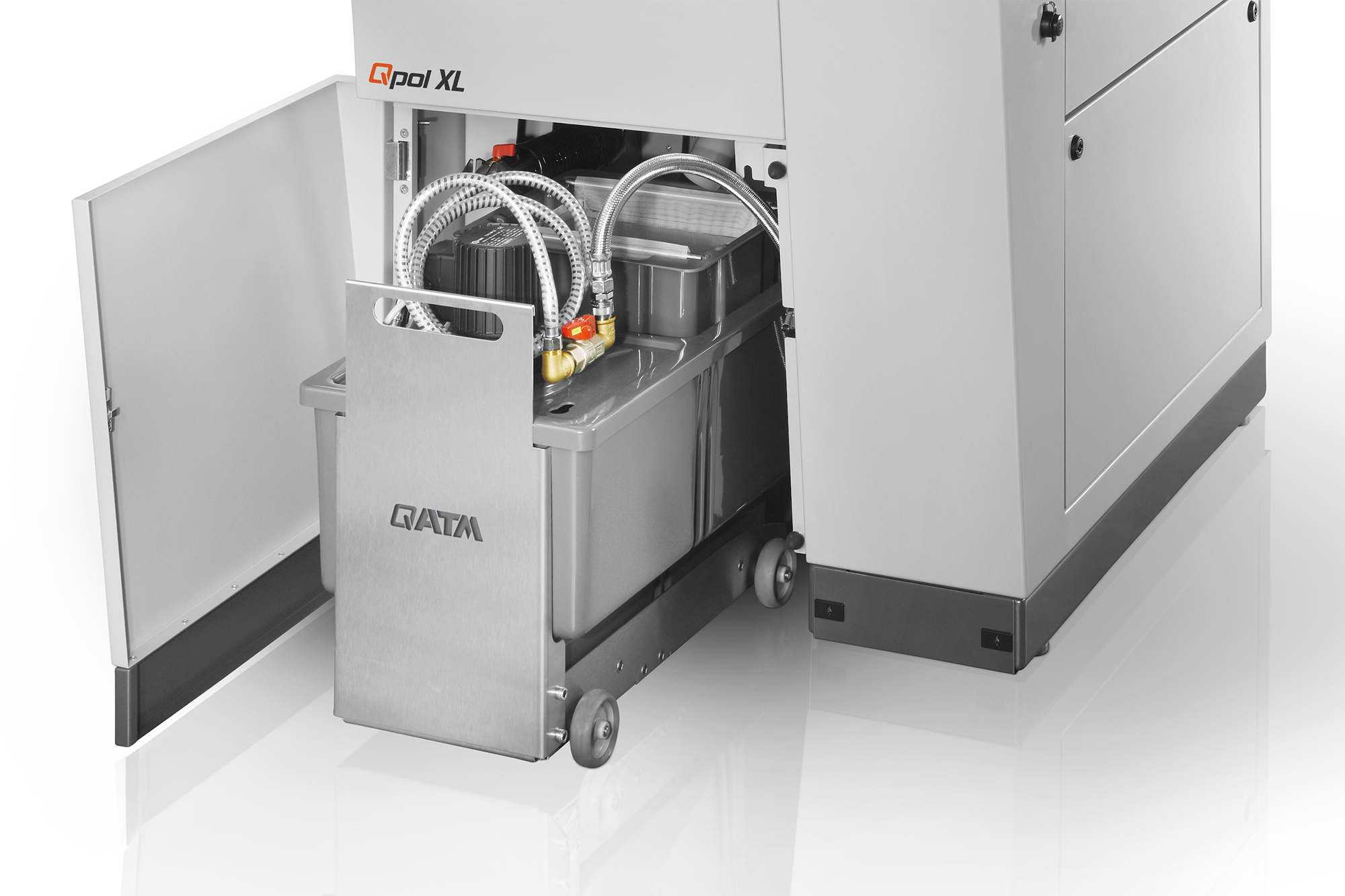

A5700032Equipment for settling tank (incl. settling tank 45L)
A5700033Equipment for recirculation with shift valve (incl. recirculation cooling system 45L)

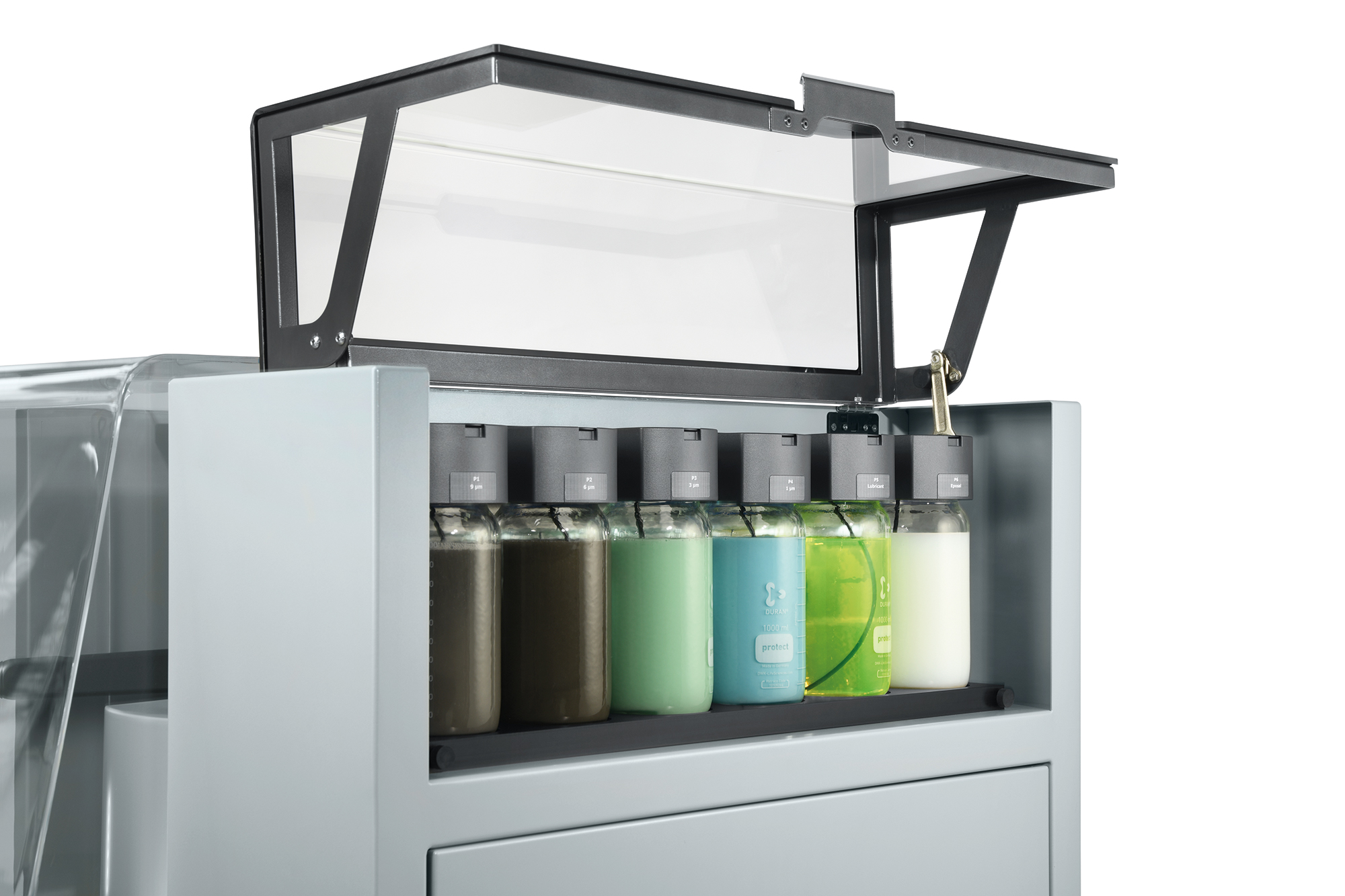

Dosing unit (1 item required)

A5700041without equipment dosing system

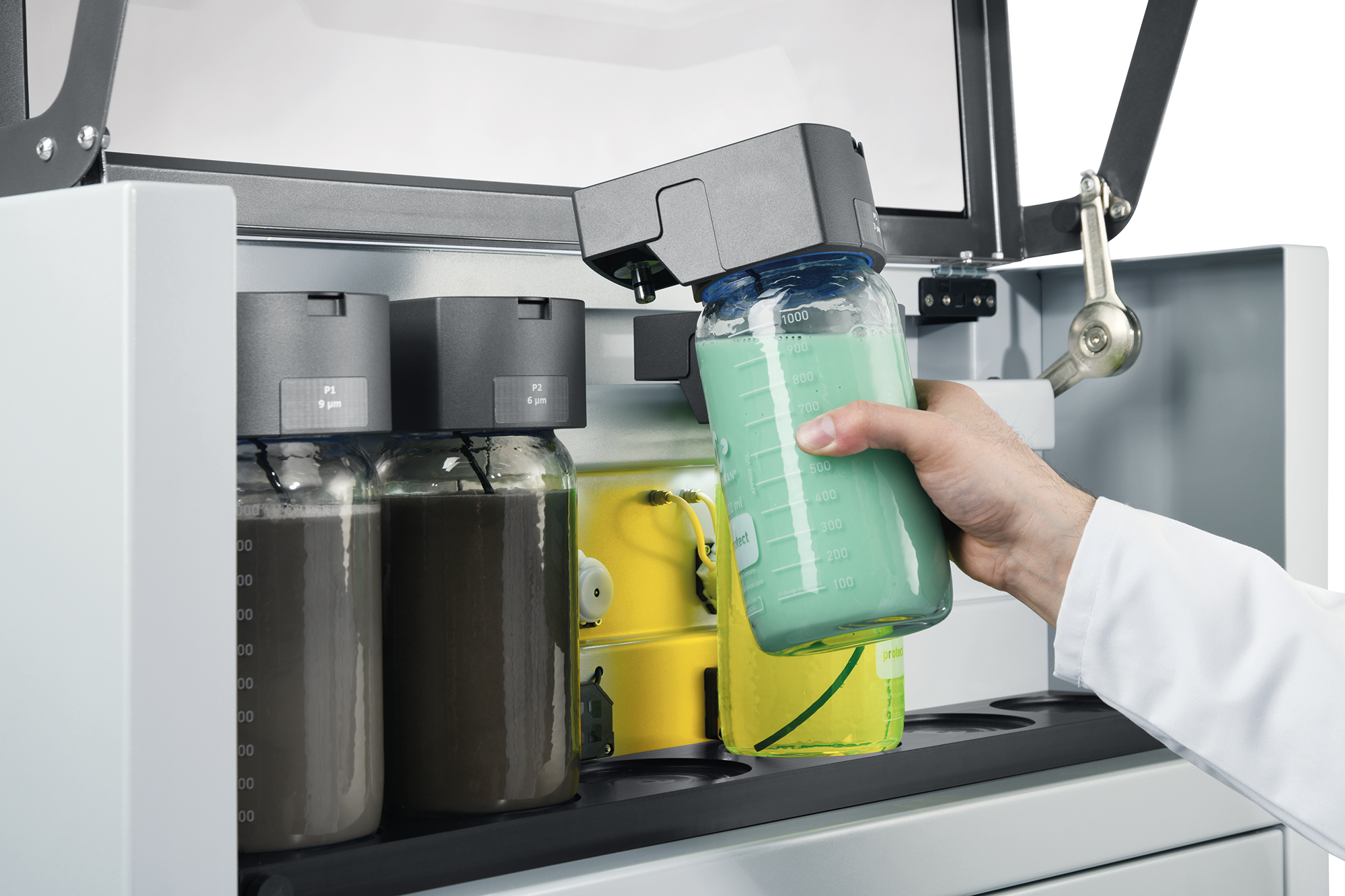

A5700042Equipment dosing system standard - for max. six bottles
A5700043Equipment dosing system standard plus - for max. six bottles

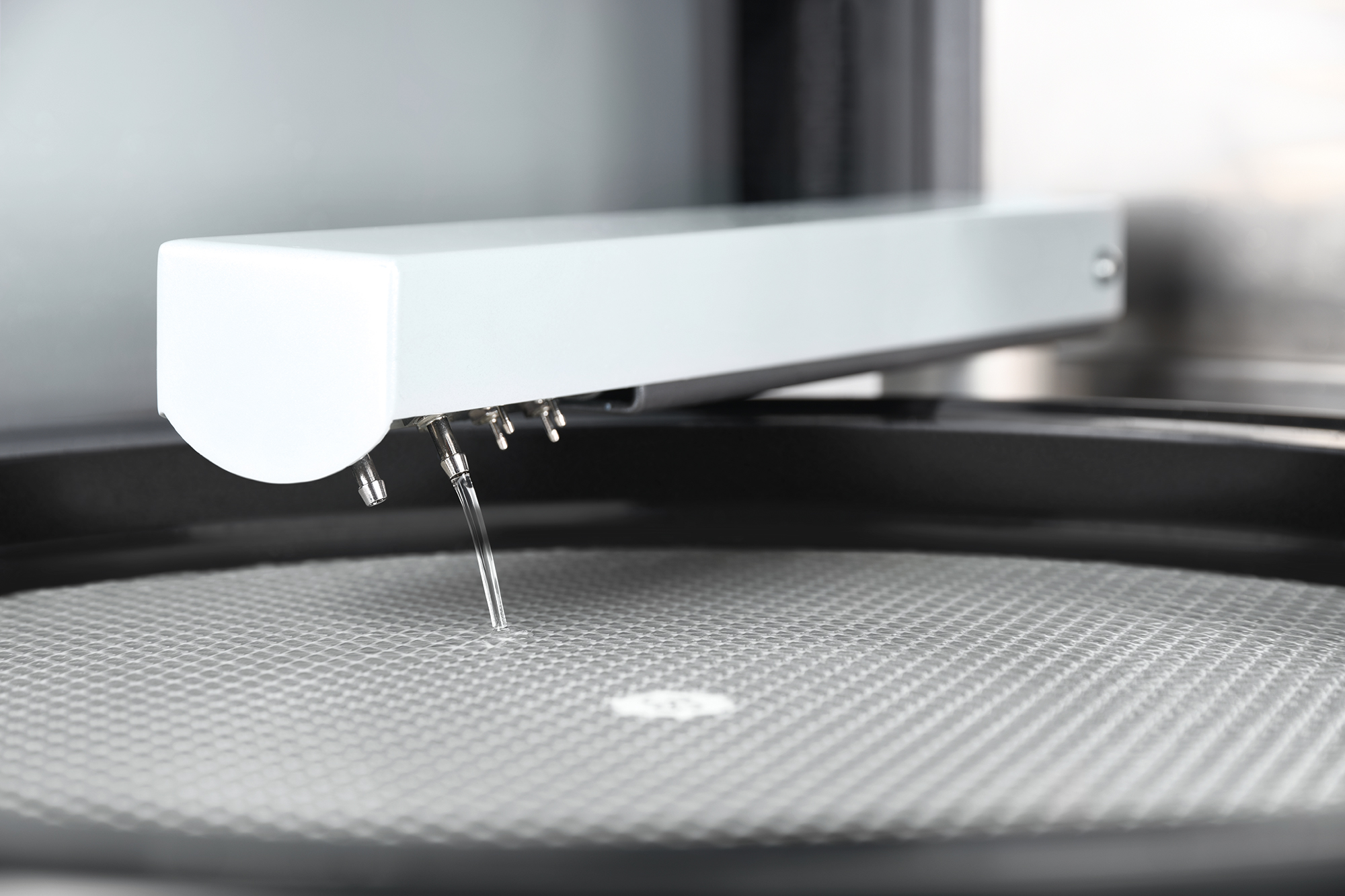

Dosing module (can be ordered separately)

Z5700011Dosing module diamond polish (2 pumps for suspension)
Z5700012Dosing module final polish (1 pump for suspension, 1 pump for final polish suspension)


Signal light (to be ordered with the machine)

A5700051Signal light


Options (can be ordered separately)

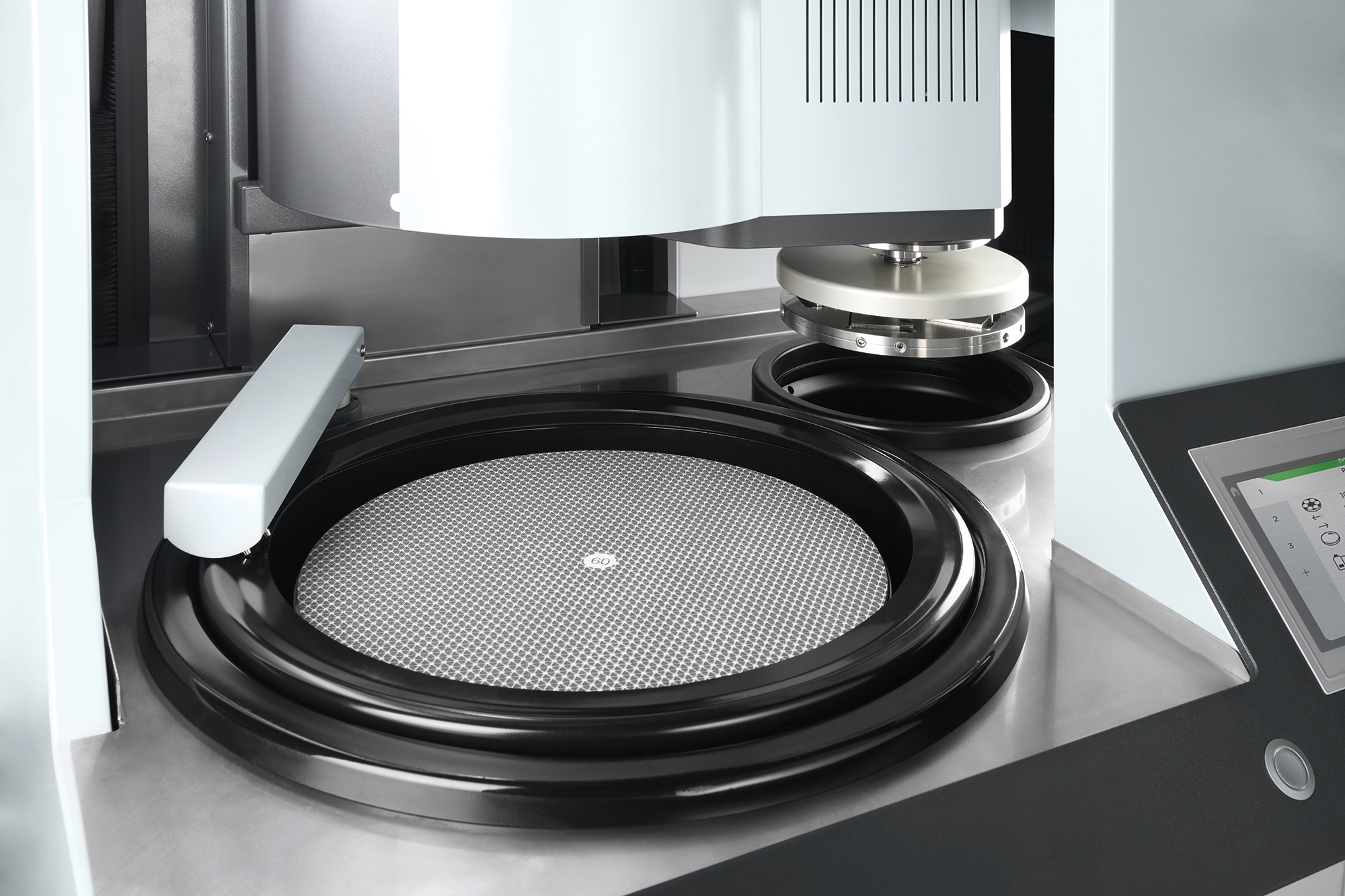

Z5700021Working wheel Ø 350 mm
Z5700022Working wheel Ø 300 mm
Z5700023Splashing ring Ø 350 mm
Z5700024Splashing ring Ø 300 mm
Z5631009Clamping ring Ø 300 mm
Z5446030Sample holder L-160-12-Ø-25 central pressure
Z5446031Sample holder L-160-8-Ø-30 central pressure
Z5446034Sample holder L-160-6-Ø-40 central pressure
Z5446035Sample holder L-160-5-Ø-50 central pressure
Z5446042Sample holder L-185-3-Ø-60 central pressure
Z5446044Sample holder L-204-5-Ø-70 central pressure
Z5446030Sample holder L-160-12-Ø-1" central pressure
Z5446032Sample holder L-160-8-Ø-1 1/4" central pressure
Z5446033Sample holder L-160-6-Ø-1 1/2" central pressure
Z5446035Sample holder L-160-5-Ø-2" central pressure
Z5446036Sample holder L-160-3-RE-55x30 central pressure
Z5446037Sample holder L-160-3-RE-60x40 central pressure
Z5446043Sample holder L-185-3-RE-70x40 central pressure
Z5446045Sample holder L-204-3-RE-100x50 central pressure
Z5446038Sample holder L-160-6-Ø-20-40 central pressure
05400260Levelling plate Ø 185 mm 4 mm
05440021Levelling plate Ø 204 mm 4 mm
Z5700002Connection-Set
