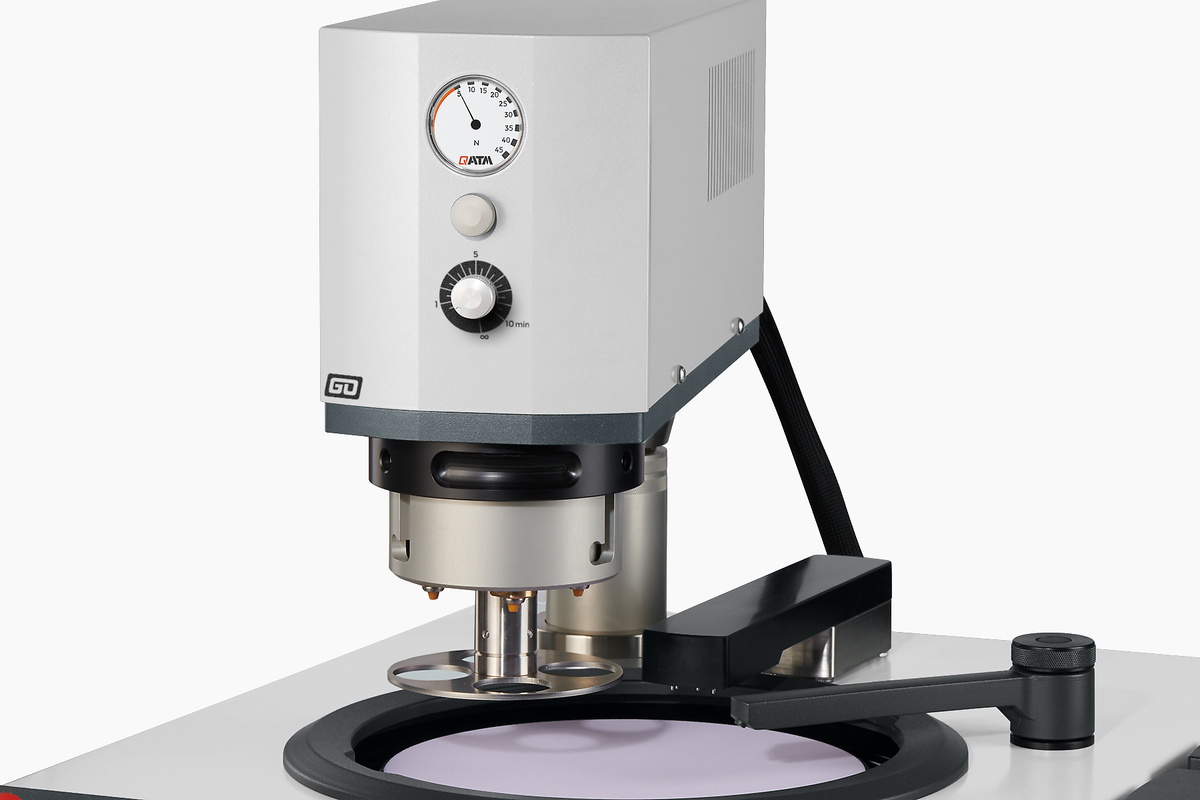

The Qpol 250 M1 is a manual, single-wheel grinding and polishing machine for working wheels Ø 200/250 mm.
The start / stop button with illuminated status display and the rotary switch with scale and integrated boost button allow for intuitive operation. A spin cycle function (Cleaning Boost) helps to spin dry the grinding and polishing medium at 750 rpm at the end of the preparation process within 3 seconds and then turns off the device.
The particularly strong, speed-controlled drive makes this model suitable for all preparation steps and materials. In addition, the working disc can be operated in clockwise / counter-clockwise rotation.
The impact-resistant plastic bowl, the powder-coated aluminium housing and the high-quality components inside the device are the basis for smooth running and best preparation results.
The robust device can be combined with the manual dosing system Qdoser GO or Qdoser ONE and thus offers a high degree of flexibility for sample preparation and operating convenience.
Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
| Working wheels | ø 200/250 mm |
| Speed | 30 - 600 rpm, continuously adjustable |
| Connection power | 1.0 kVA |
| Drive power (main drive) | 0.55 kW (S1) |
| W x H x D | 511 x 265 x 710 mm |
| Weight | ~ 25 - 30 kg |
| Water connection | 1x fresh water connection R½" max. 6 bars |
| Dosing system (option) | Qdoser GO or Qdoser ONE |
