Planar Grinding Machine Qgrind XL

Request a quote
Create PDF

Language:

The particularly robust and powerful design of the Qgrind XL planar grinding machine allows for maximum material removal with high precision.

The ForceControl function ensures reproducible grinding results with the integrated electronic measuring systems. By selecting and combining different grinding modes, both maximum material removal rates (roughing) and excellent sample surfaces (finishing) are achieved. With the SmartGrind software function, the grinding process can be continuously monitored and made particularly efficient by means of fully automatic determination of dressing intervals. The integration of a cleaning station and the intuitive software interface set new standards in convenience and user-friendliness.

Product Advantages

  • Robust design and powerful drives for very fast preparation results - also for high sample throughput
  • Precise and reproducible results thanks to electronic force measuring system and automatic removal measurement
  • Automatic diamond dresser and optional cleaning station
  • Intuitive user interface

Advanced technology and measurement system

The grinding head and diamond dresser are equipped with a robust ForceControl system and enable reproducible and high grinding forces. The integrated load cells and the innovative motorized force control ensure defined material removal and maximum process reliability.

Fully automatic diamond dresser

Fully automatic diamond dresser

In the fully automatic mode (Smartgrind), the grinding process is continuously evaluated and the grinding requirement of the stone is automatically determined and efficiently controlled. Stones may also be dressed at predetermined intervals as well as manually. The remaining stone height, the wear of the dressing diamond and the process flow are shown dynamically on the display.

Different grinding modes

Different grinding modes

When planar grinding metallographic samples, both high removal rates and flat samples with high surface quality are the goals. In the „roughing“ grinding mode, material removal can be increased by up to 20% compared to conventional processes, thus significantly reducing process times. In „Finishing“ mode the surface quality is improved by up to 15%. The combination of different modes produces optimal grinding results with maximum efficiency.

Removal measurement

Removal measurement

The QATM Qgrind XL comes with a system for precise measurement of material removal – regardless of operating time, sample type, material and hardness, you can easily monitor the material height already removed.

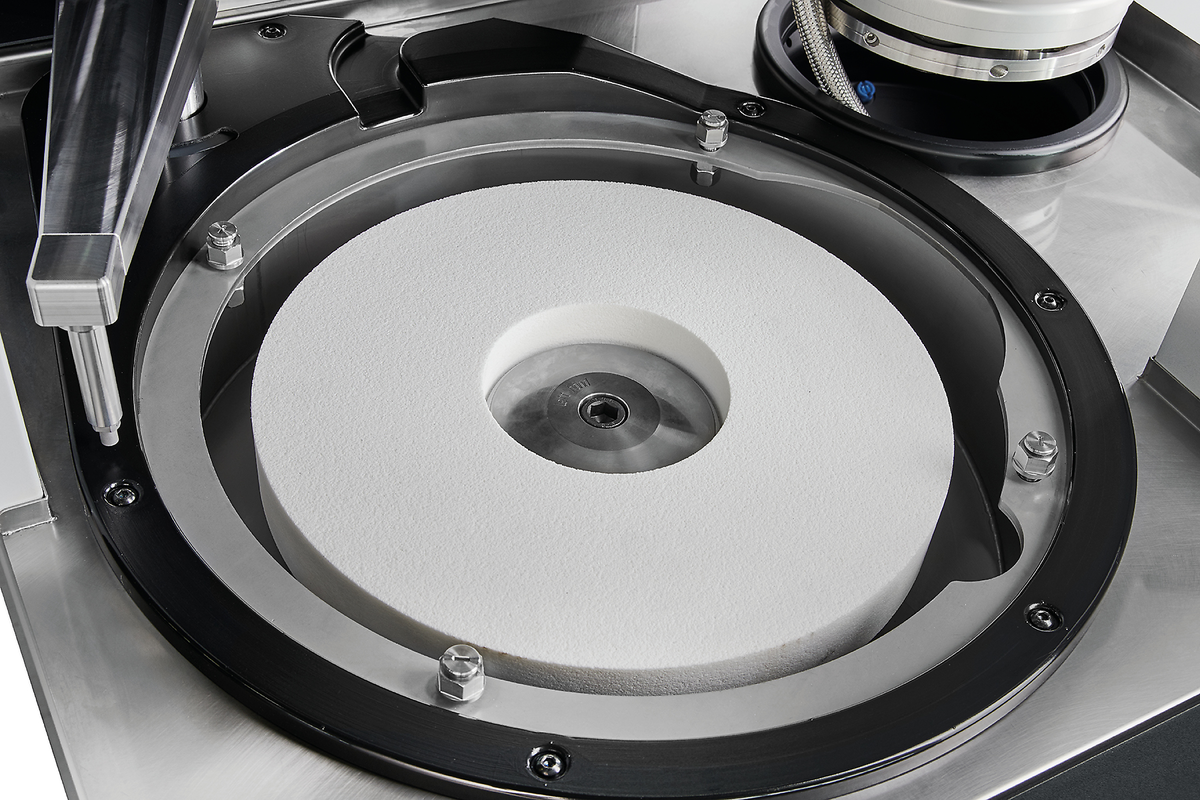

Easy and quick change of the grinding stone

Absolutely intuitive and smart Well thought in every detail

Robust engineering - functional design

Robust engineering - functional design

The basic requirements when developing the automatic grinder Qgrind XL were a corpus and polishing head of utmost stability. These requirements form the basis for a low-vibration and robust grinding process. A solid steel construction, powder-coated and a working area lined with stainless steel emphasize the sustainable, and at the same time modern and compact, machine design – made in Germany.

Convincing performance data

Convincing performance data

A 4 kW drive motor drives the grinding stone of the Qgrind XL and ensures high material removal and rotational speeds of up to 2000 rpm. The sample holder is driven in the grinding head with up to 1.1 kW, which means that grinding forces of up to 750 N can be achieved. The speed of both systems can be variably controlled.

Maximum safety

Maximum safety

The motorized acryl glass safety hood protects the working area of the machine. The transparent hood is equipped with a safety switch and opens automatically when the program is finished. For easy cleaning the hood can simply be unhinged.

Features

  • 7“ Touch-Screen
  • Status display and acoustic signal
  • Removal measurement with graphic display
  • Automatic referencing and wear indicator for grinding stone and dressing diamond
  • User Account Management with variable user rights
  • USB / Ethernet interface for remote maintenance and data transfer
Qgrind XL control software
Convenient operation
Cooling

Cooling

A circulation cooling tank can be seamlessly integrated into the machine base and is easily accessible via push-to-open door. Lateral guidance of the extendible and rollable unit via slide rails. During the grinding process, the flow and temperature of the coolant are monitored in the software. Depending on the application, different circulation cooling systems can be used with the Qgrind XL.

Tool compartment

Tool compartment

The tool compartment integrated in the machine housing is particularly practical. This means you always have easy access to all tools.

Manual cleaning

Manual cleaning

An integrated rinsing hose allows for manual cleaning of the working area.

Signal lamp

Signal lamp

The optional signal lamp allows monitoring of your Qgrind XL from a distance: The red/yellow/green lights show the current state of the machine at a glance.

Preparation for external suction

Preparation for external suction

Direct suction of vapor from the working area through suction nozzle.

Perfect grinding - Consumables by QATM

Grinding is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

ApplicationAutomated planar grinding of materialographic specimens
Fields of applicationPreparation of specimen surfaces for materialographic analysis
Grinding stoneø max. 356 mm
Speed of grinding stonevariable (1000 - 2000 rpm)
Sample holderø 160 - 204 mm
Speed of sample holdervariable (30 - 160 rpm)
Running direction of sample holderclockwise/counterclockwise
Pressing systemcentral pressing force, electromotive force control
Sample holder pressing force (central)50 - 750 N
Removal measurement±0.1 mm display accuracy at 1 mm removal
Removal range0.1 mm - 10 mm
Drive power grinding stone4 kW (S1 operation)
Drive power sample holder0.75 kW (S1 operation)
Connection power9 kVA
Power supply400 V / 50 Hz (3Ph / N / PE), 480 V / 60 Hz (3Ph / N / PE), 220 V / 60 Hz (3Ph / N / PE)
