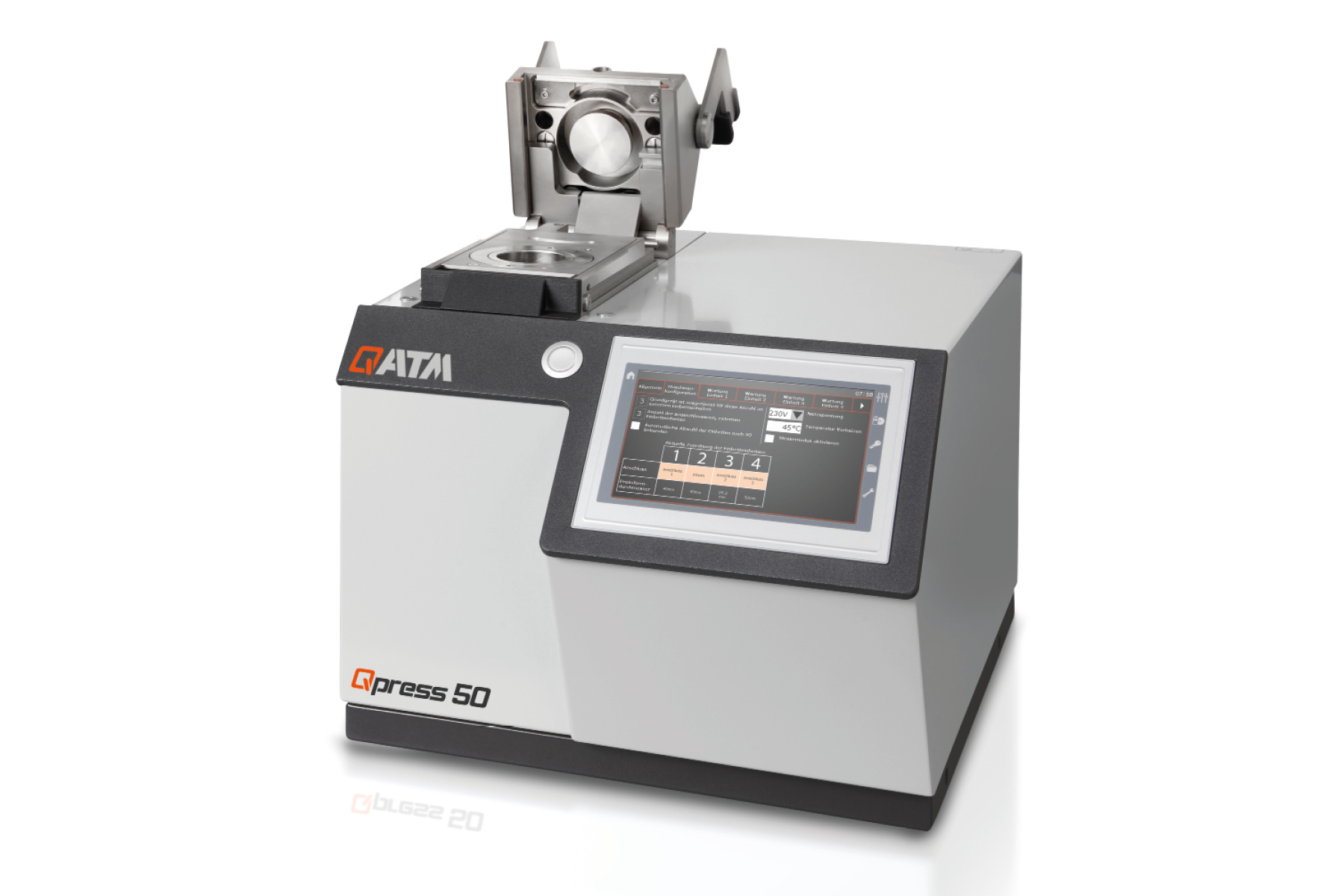

The Qpress 50 is a modular hot mounting press for fast and simultaneously independent mounting of different materialographic specimens. Due to its modularity the Qpress 50 can be configured ideally to the specific customer’s needs; e.g. the specimens can differ in size and material.
The 7“ touch screen with intuitive software contains user account management, preinstalled recipes and user-defined maintenance tasks and more. The device combines fast mounting and high energy efficiency in a robust powder-coated steel case.

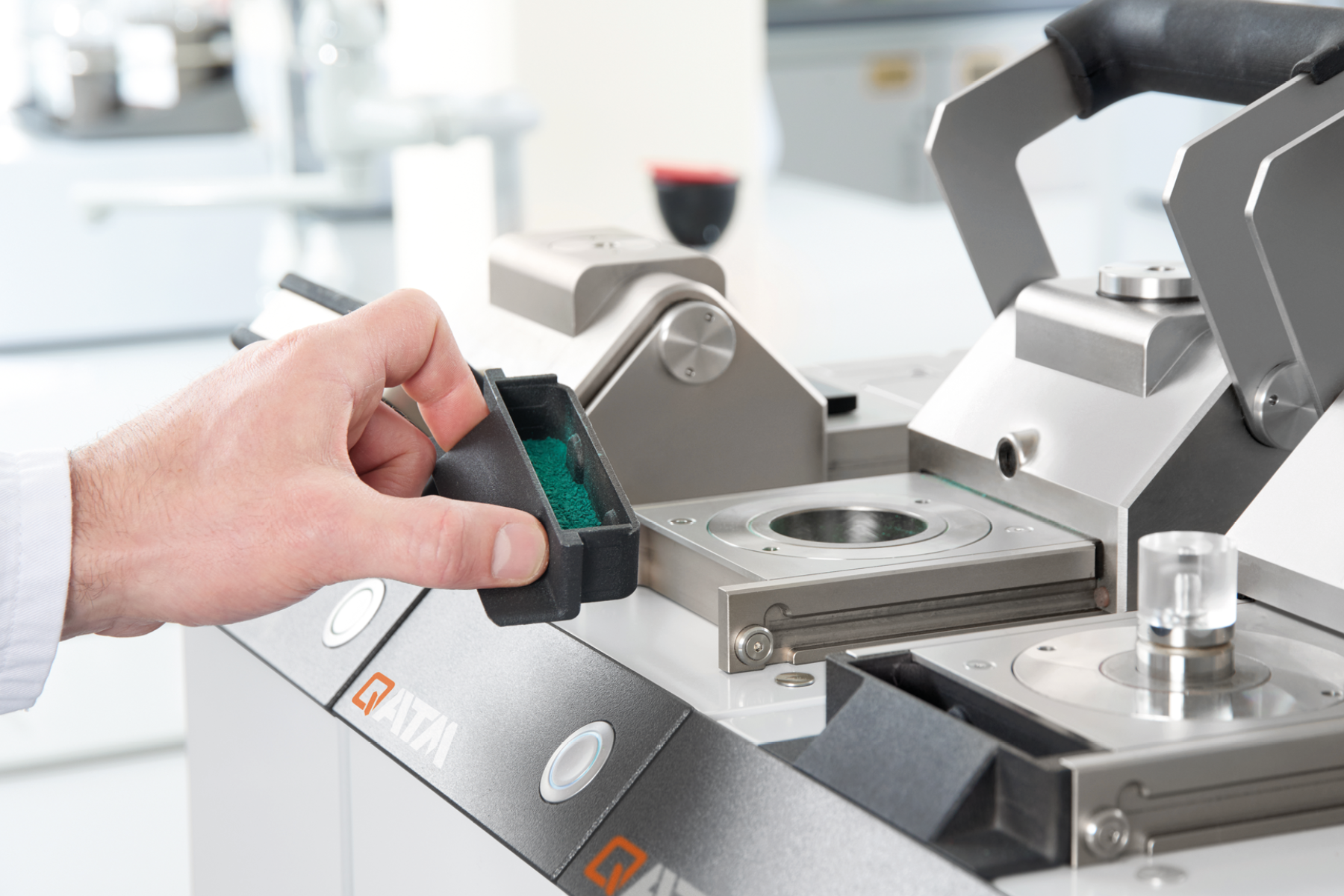

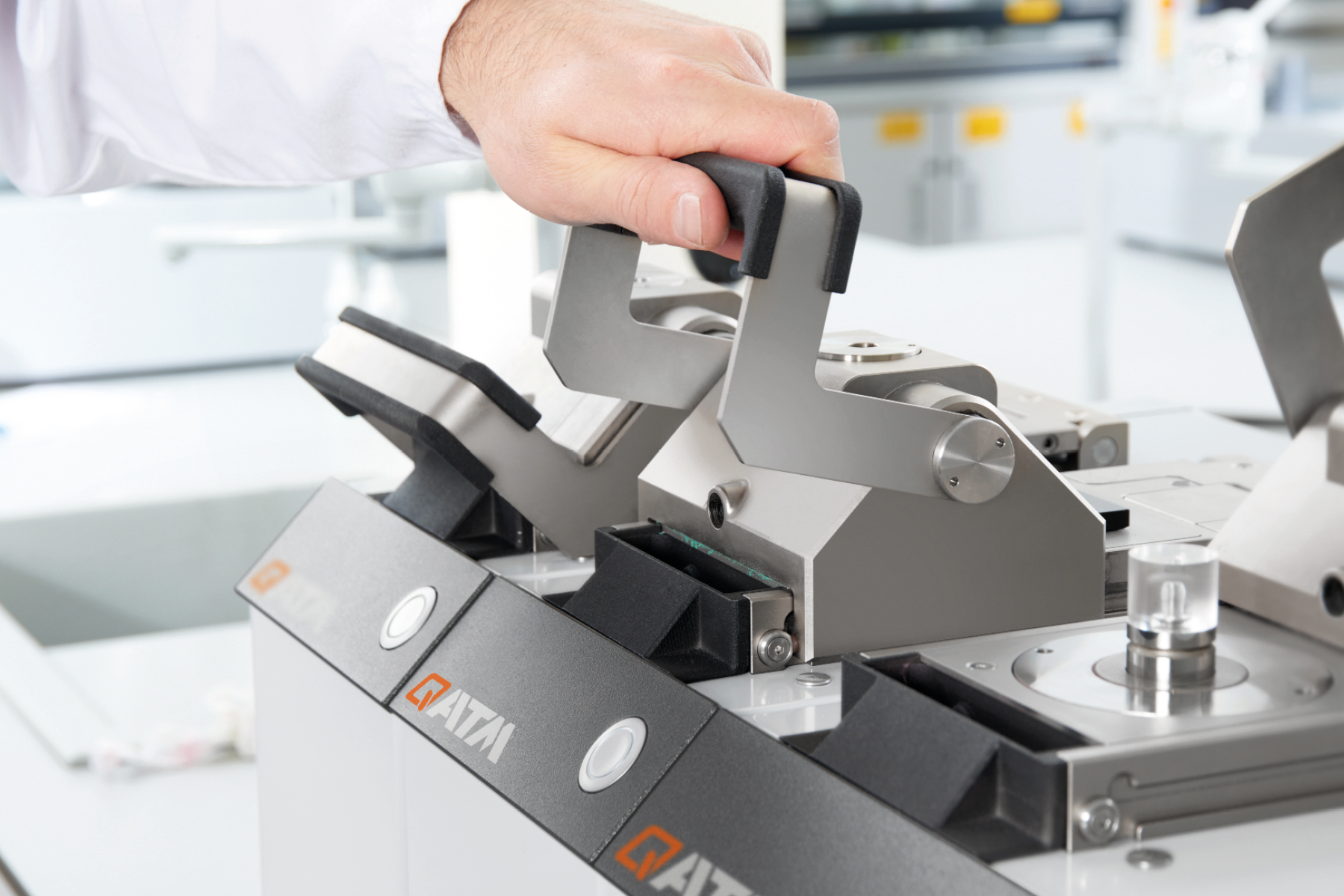

One-hand sliding closure with integrated suction nozzle. When the mould is closed, excess granulate is pushed into a removable compartment (dirt trap). The sliding closure can be lifted off to clean the upper flask.

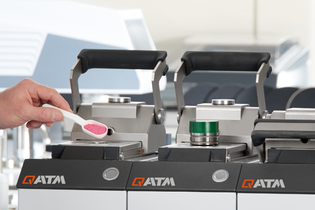

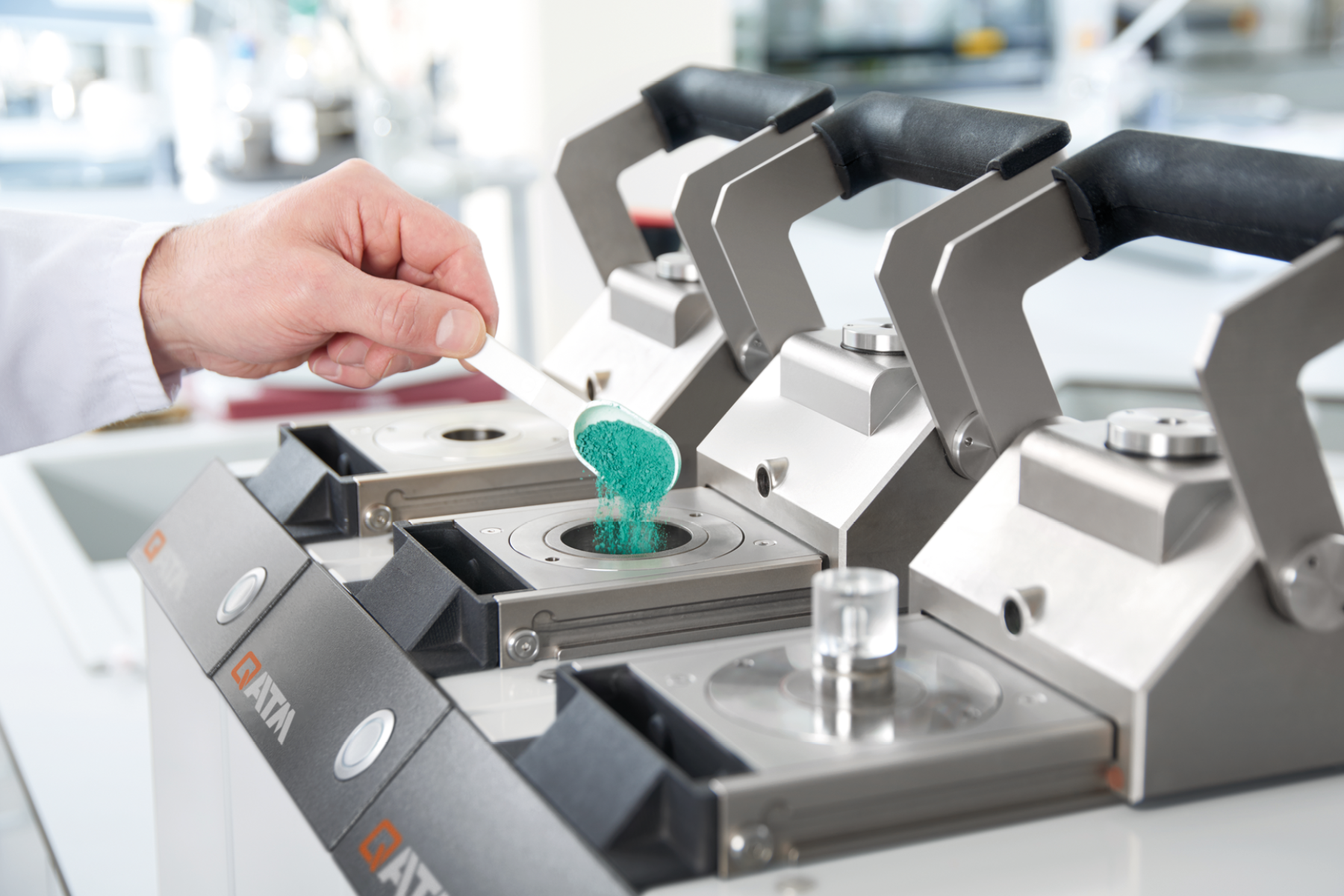

An integrated exhaust device (Dust Guard) protects the operator from inhaling expired fine dust during filling the moulds with mounting resin.

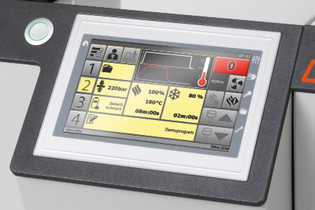

The multi-functional button indicates the selected mounting unit, the operation state of the pressing unit and facilitates the operation of the whole unit. The 7“ touch display with control software consists of pre-installed mounting methods, consumables and offers the storage of more than 200 user-defined mounting methods.
The Qpress 50 is designed for fast mounting including a pre-heat function and safes significantly time compared to other hot mounting presses.

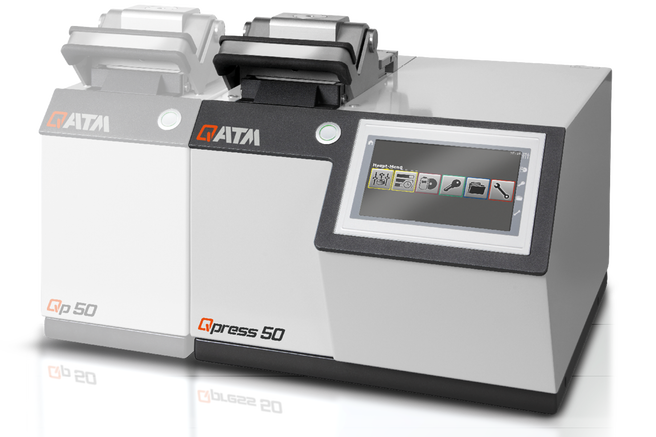

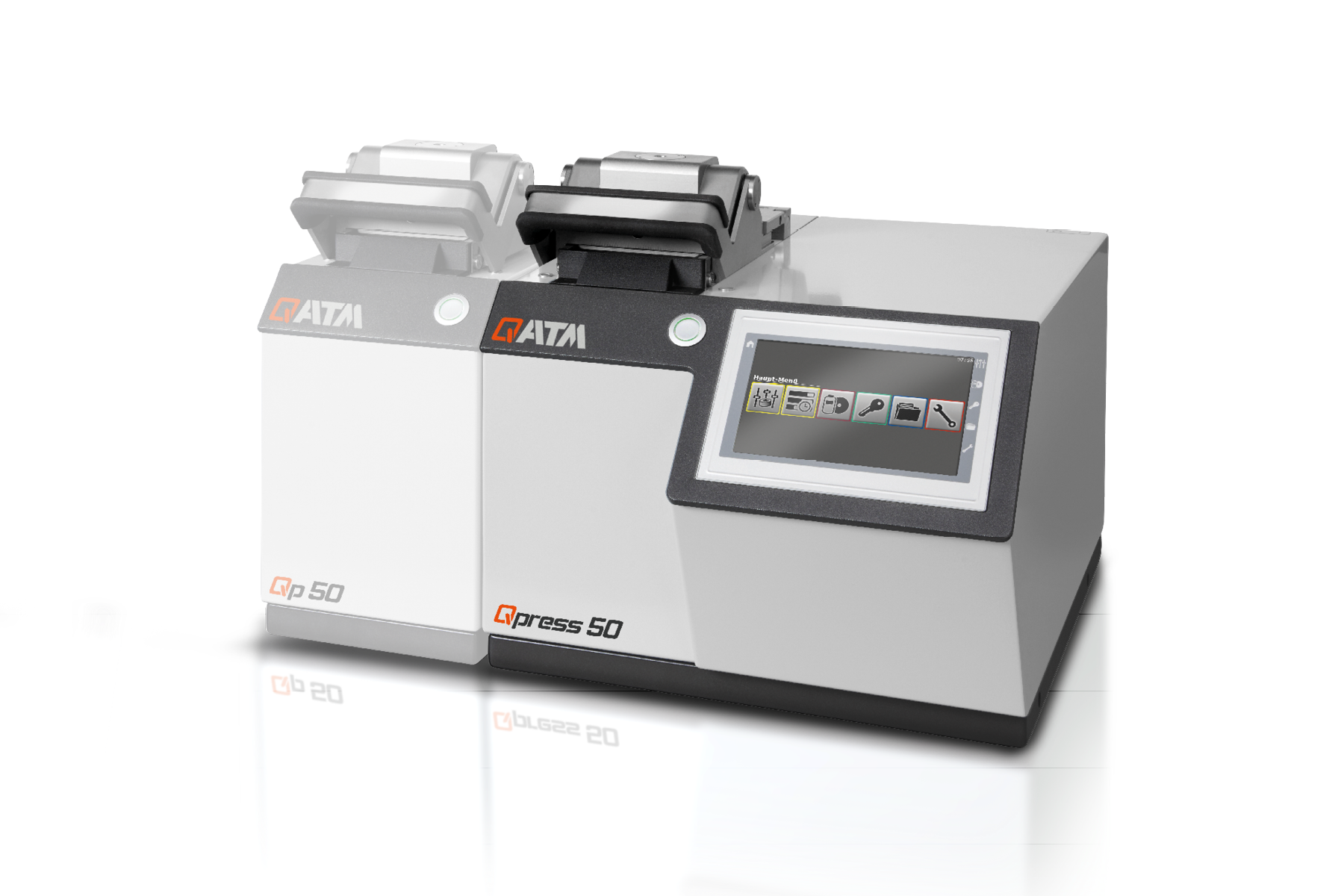

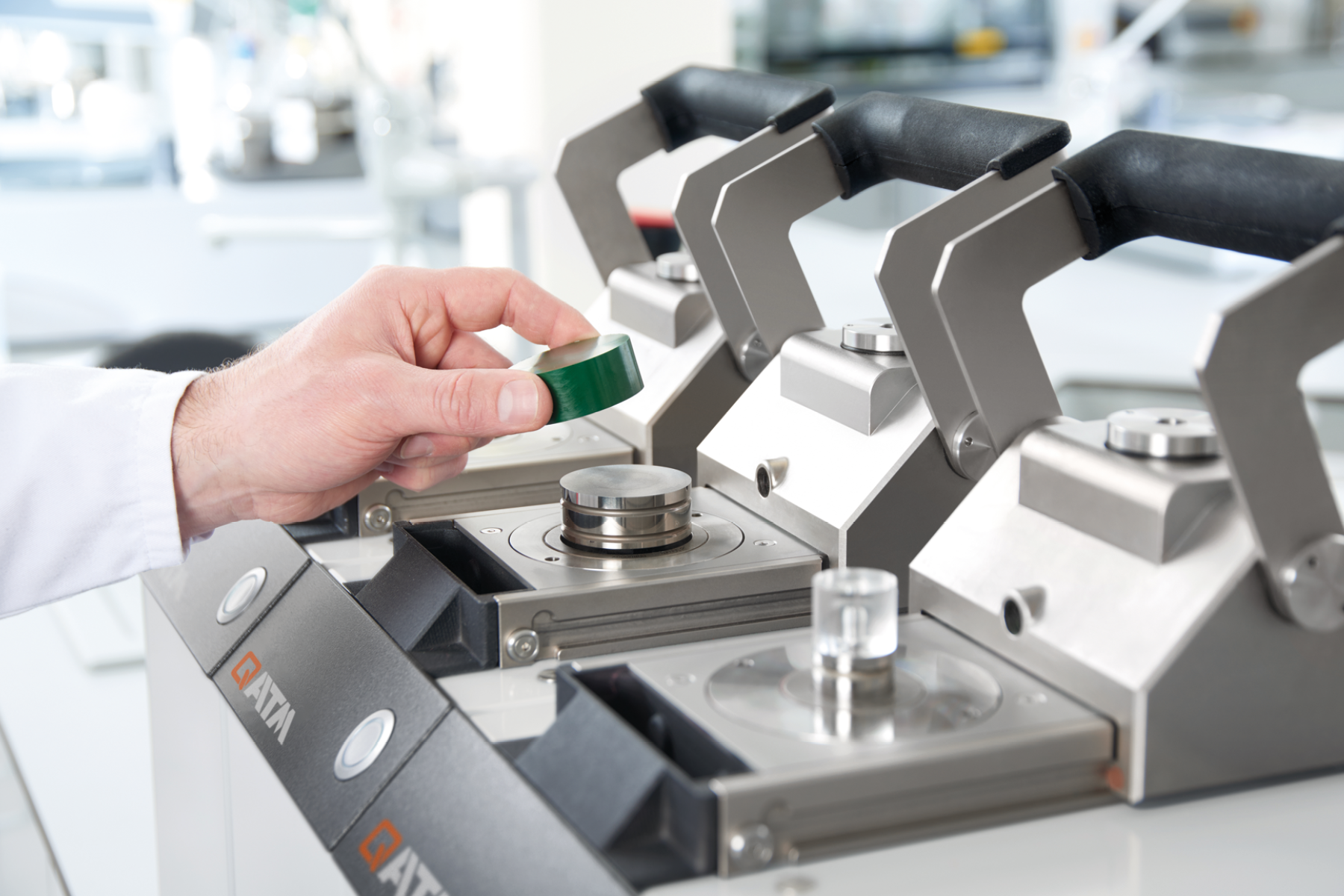

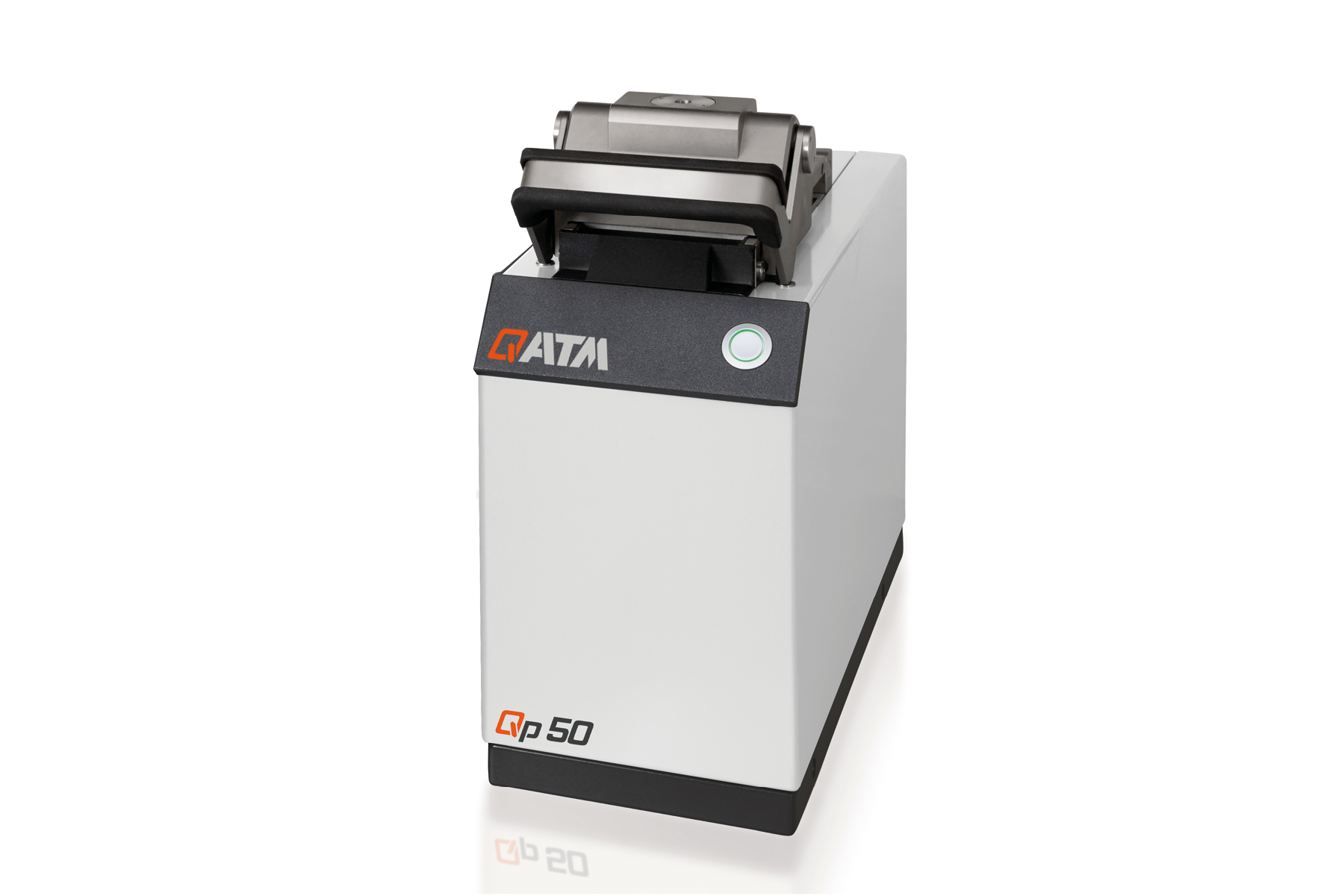

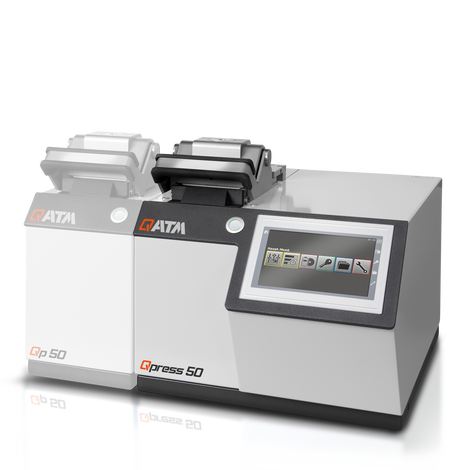

The Qpress 50-2 is the perfect choice for small and medium quantities of mounts. The basic unit includes one pressing unit and can be extended with one additional mounting unit at any time. The units are operated independently and simultaneously.

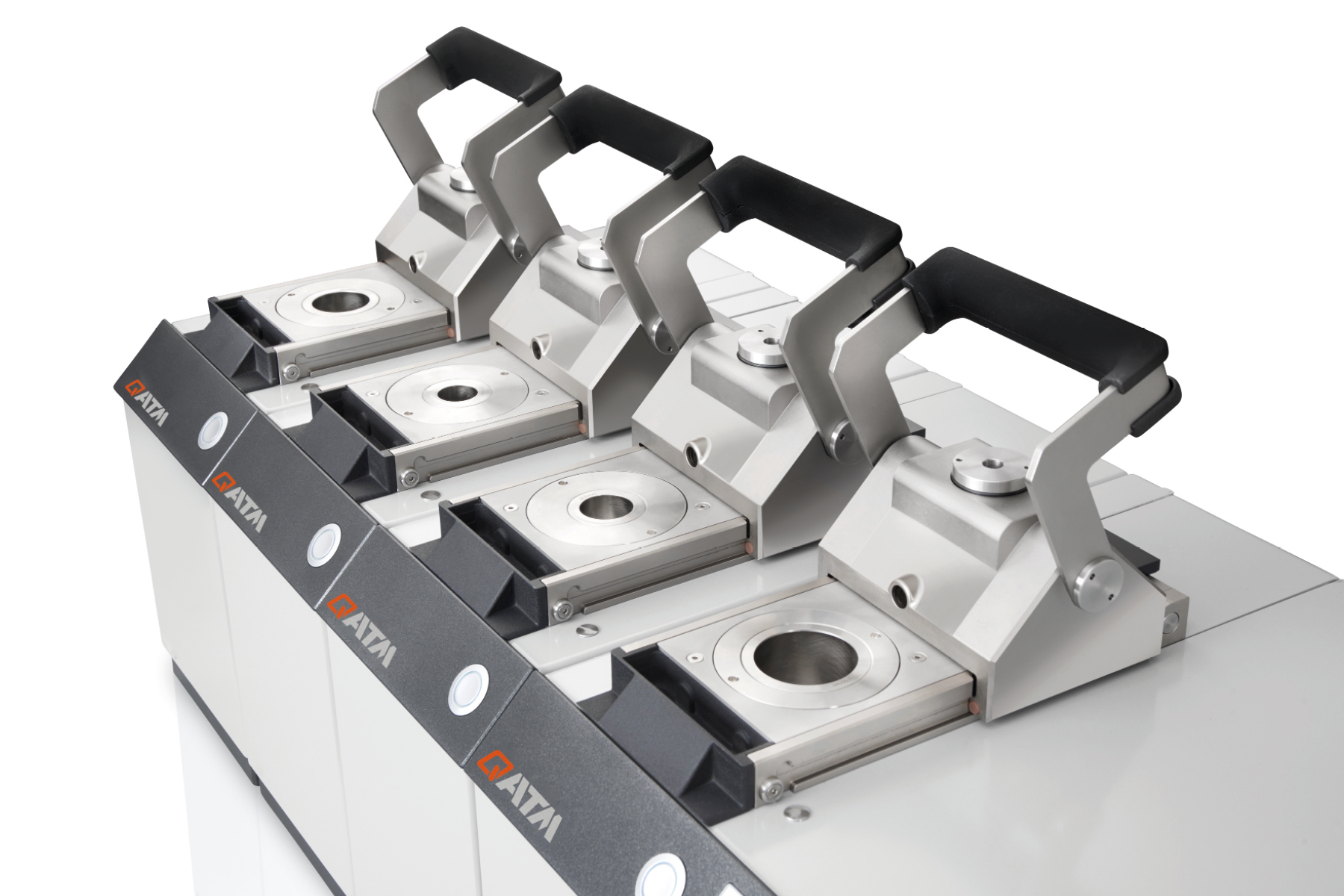

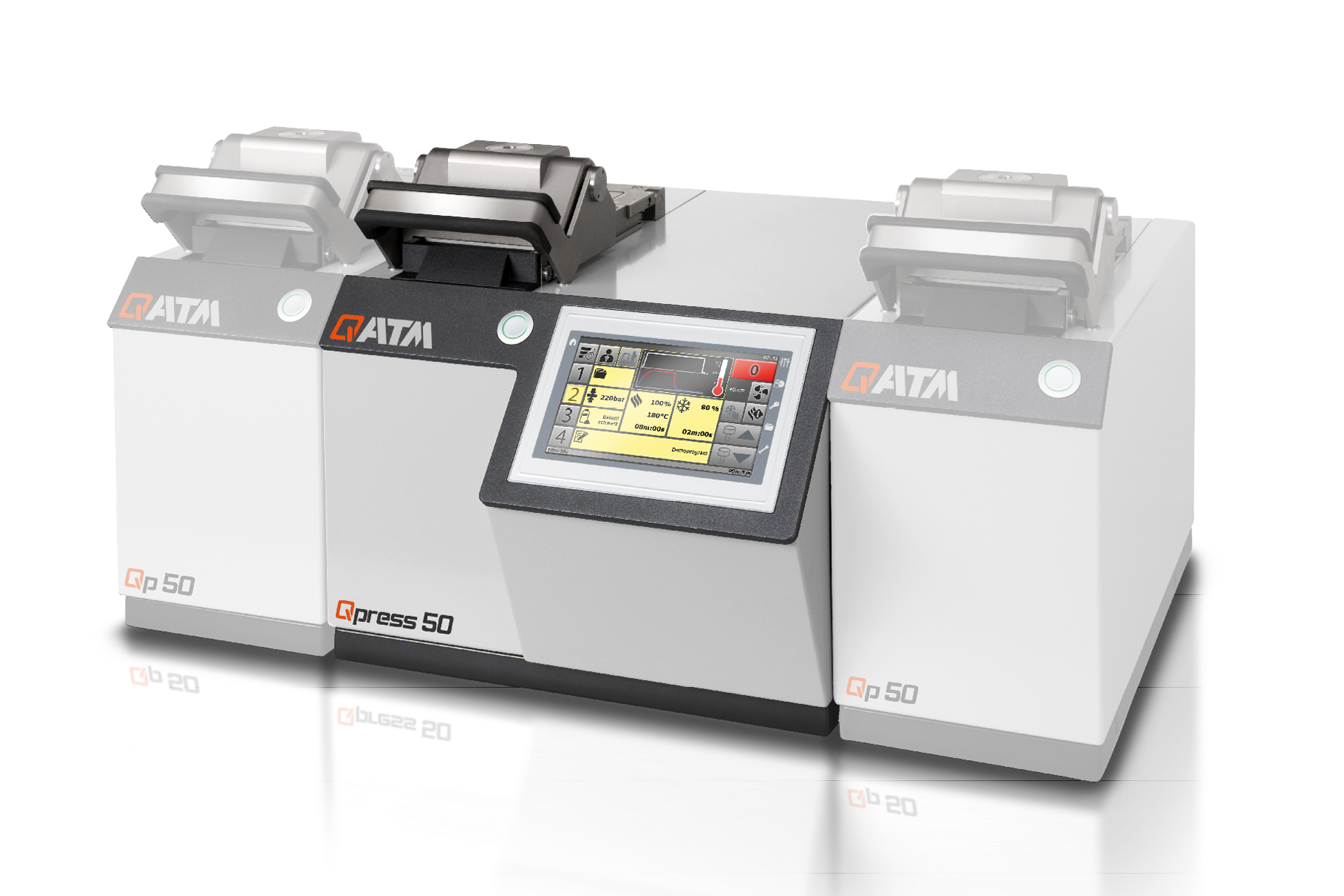

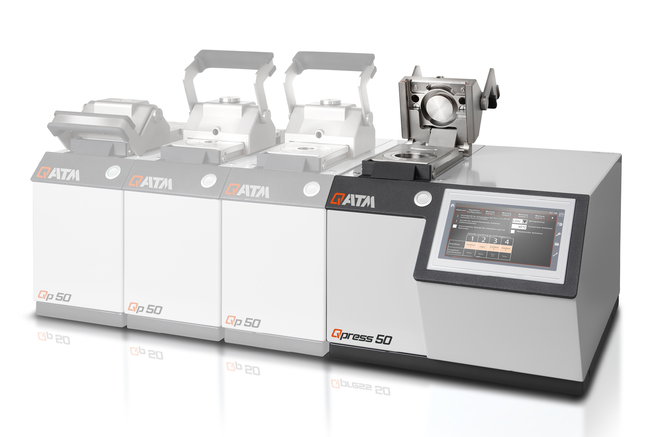

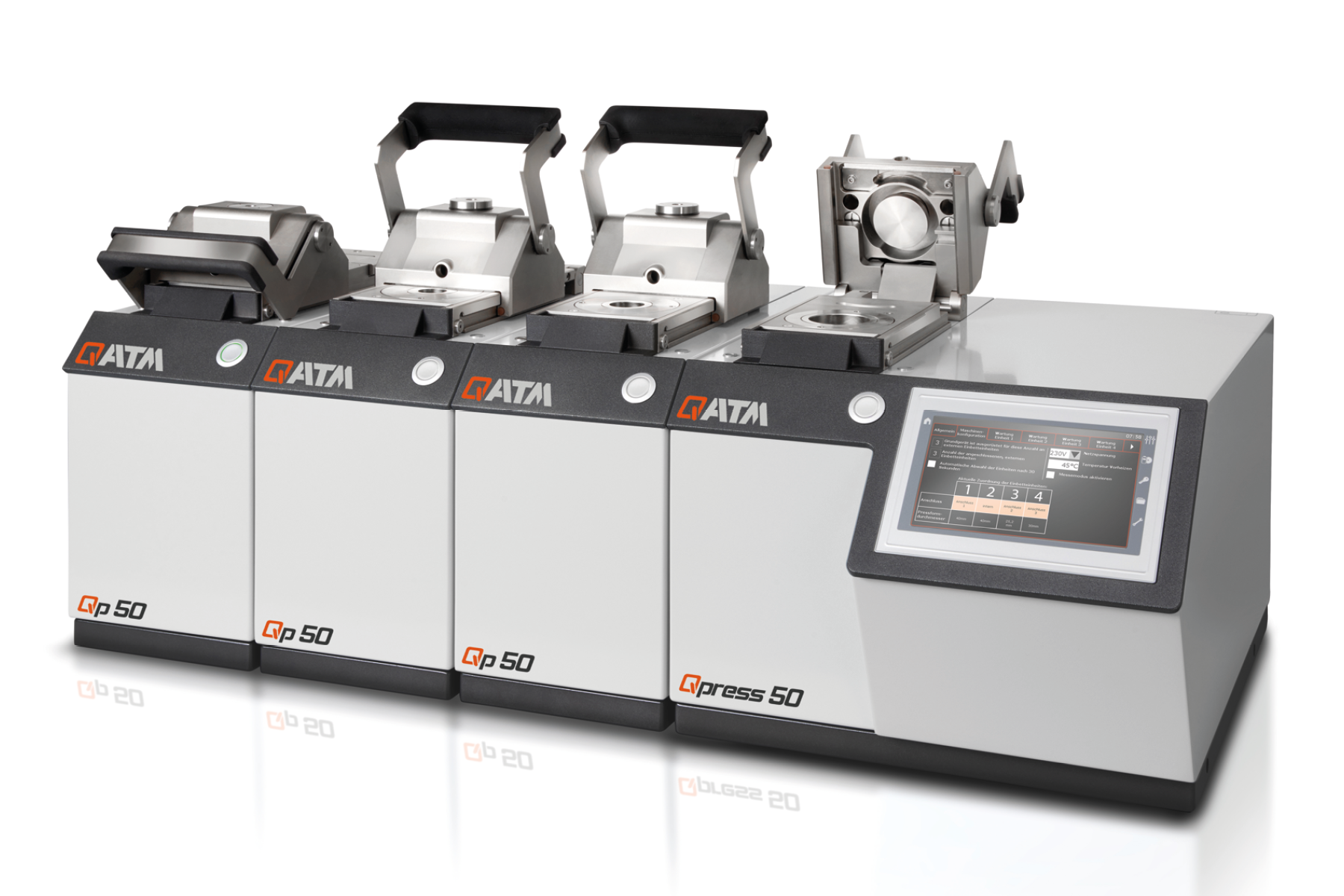

Up to 4 mounts can be done simultaneously and independently from each other. The basic unit includes one pressing unit and is extendable by 1, 2 or 3 additional mounting units. The diameter of the mount of each pressing unit is chosen individually by 25.2 mm, 30 mm, 1 ¼“ (~32 mm), 1 1/2“ (~38 mm), 40 mm and 50 mm - each diameter with or without chamfer.

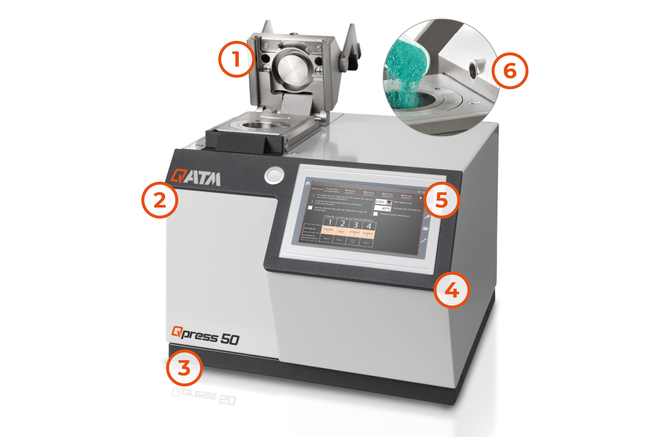

1. Sliding closure
2. Mounting
3. Modularity
4. Control interface
5. Pre-heat function
6. Dust Guard

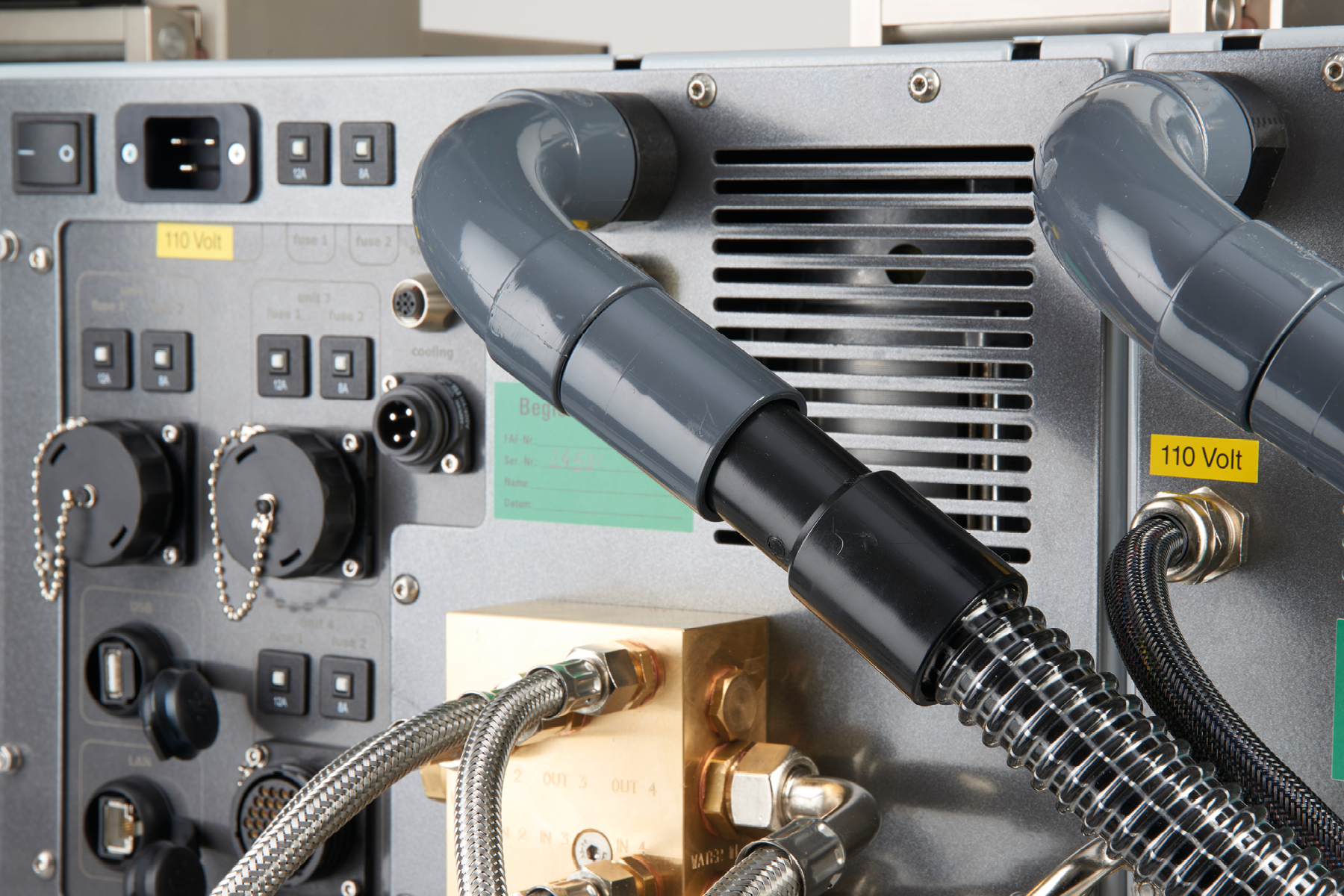

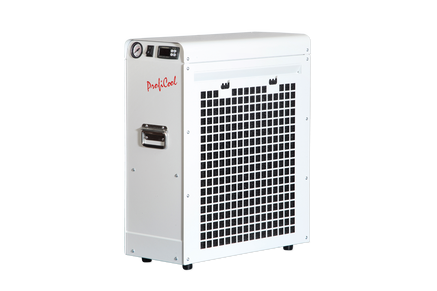

Also available as system cooling with the following advantages:

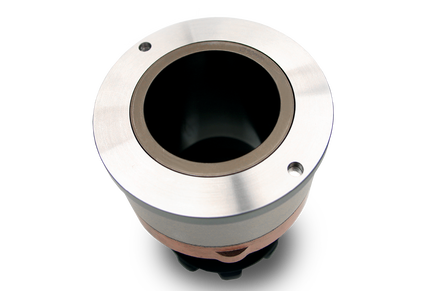

Available with or without chamfer in these sizes:
Ø 25.2 mm, Ø 30 mm, Ø 1¼“ (~32 mm), Ø 1½“ (~38 mm), Ø 40 mm, Ø 50 mm

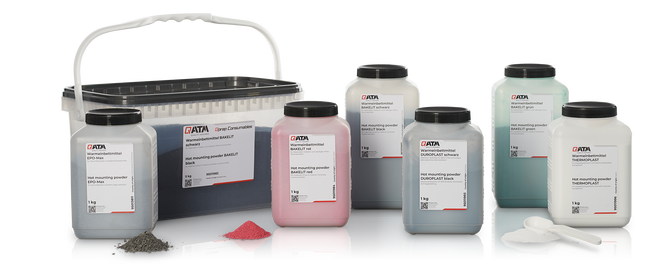

Mounting is more reliable, safer and more efficient when performed with the right equipment: Knowledge, exercising care and the right choice of consumables and equipment are crucial.
| Max. number of pressing units | 2/4 Qpress 50-2: up to 2 Qpress 50-4: up to 4 |
| Mould cylinder | ø 25.2 - 50 mm (6 different sizes) |
| Closure system | slide closure |
| Thermostate range | 20-200°C |
| Heating time | adjustable |
| Cooling time | adjustable |
| Max. pressure in mould cylinder depending on mold assembly's size | 250-350 bar |
| Connection power (basic unit) | 1.6 kVA |
| Connection power (additional pressing unit) | 1.5 kVA |
| Heating power | 1200 W |

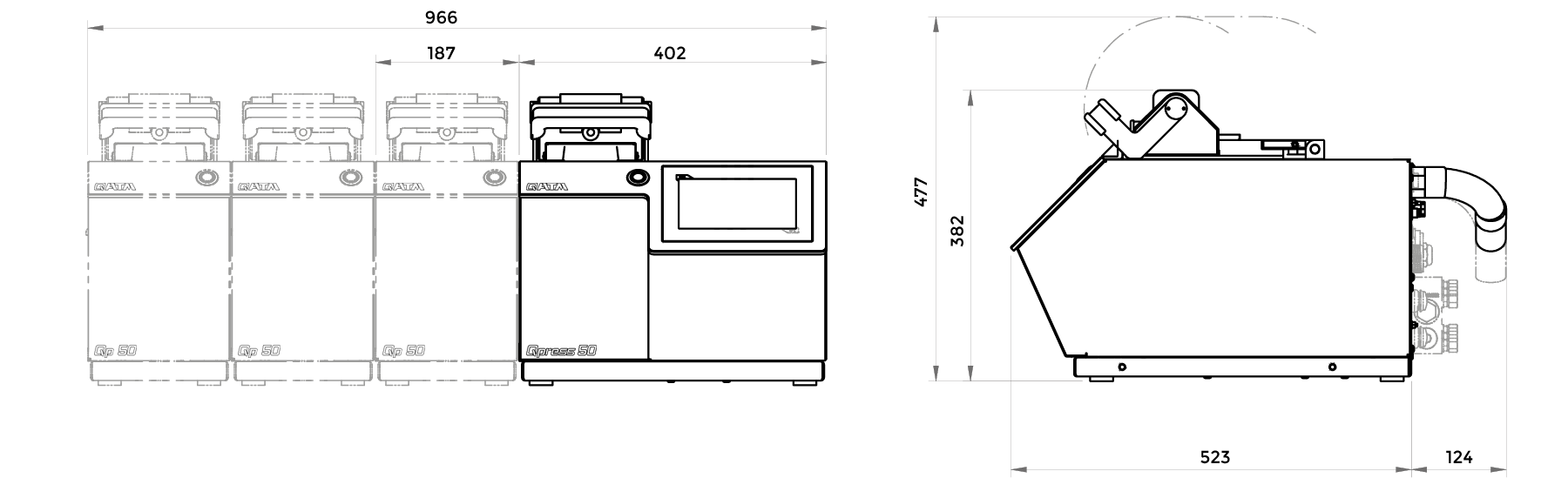

| W x H x D (basic unit) | 402 x 382 x 563 mm |
| W x H x D (additional pressing unit) | 187 x 382 x 449 mm |
| Weight | ~ 50 kg |
Content may be subject to modifications or corrections
